3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance
3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance
3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance
3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance
3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance
3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance
Specifications
MOQ :
10pcs
Packaging Details :
Plywood case
Materials :
Aramid fiber paper
Price :
Negotiable
Thickness :
10mm or Costomizable
Model Number :
BHC1313
Color :
Brown
Payment Terms :
L/C, T/T
Density :
29, 48，96kg/m3 or Costomizable
Advantages :
Super light
Delivery Time :
100pcs per day
Size :
600*600mm or Costomizable
Cell size :
4.8, 9.5mm
Applications :
Rail Transit, sport products or other
Product name :
Aramid honeycomb core
Brand Name :
BEECORE
Package :
Plywood case
Certification :
ISO9001, ISO14001
Place of Origin :
China
Description

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

1. Descriptions:

Aramid honeycomb core is a kind of structural core material, which has been widely used in the field of aerospace. In the production of aramid honeycomb core, phenolic resin has always been used as reinforcing material. With the increasing requirements for the mechanical properties of aramid paper honeycomb core in some fields, the performance indexes of aramid paper honeycomb core products are also gradually improved, so as to better meet the aerospace field.

2. Specifications:

Specifications

Cell size

(mm/inch)

Density

(kg/m³)

Compression

strength

(MPa)

L-Shear

strength

(MPa)

W-Shear

strength

(MPa)
Commercial Grade Aramid Honeycomb Core
BHC1313-3.2-48 3.2 1/8 48 1.9 1.16 0.62
BHC1313-3.2-64 3.2 64 3.1 1.48 0.82
BHC1313-3.2-80 3.2 80 4.7 1.95 1.05
BHC1313-3.2-96 3.2 96 6.6 2.45 1.42
BHC1313-4.8-32 4.8 3/16 32 0.9 0.58 0.36
BHC1313-4.8-48 4.8 48 2.6 0.98 0.56
BHC1313-4.8-64 4.8 64 3.4 1.7 0.92
BHC1313-4.8-80 4.8 80 6 1.95 1.1
BHC1313-4.8-96 4.8 96 7.3 2.26 1.32
BHC1313-6.4-24 6.4 1/4 24 0.54 0.34 0.18
BHC1313-6.4-32 6.4 32 0.8 0.54 0.3
BHC1313-6.4-48 6.4 48 2.05 1 0.56
BHC1313-6.4-64 6.4 64 3.4 1.54 0.79
BHC1313-9.5-24 9.5 3/8 24 0.52 0.32 0.16
BHC1313-9.5-32 9.5 32 0.68 0.56 0.29
BHC1313-9.5-48 9.5 48 9.6 1.15 0.66
Aerospace Grade Aramid Honeycomb Core
BHC1313A-3.2-48 3.2 1/8 48 2 1.26 0.72
BHC1313A-3.2-64 3.2 64 3.2 1.58 0.92
BHC1313A-3.2-80 3.2 80 4.8 2.05 1.15
BHC1313A-3.2-96 3.2 96 6.7 2.55 1.52
BHC1313A-3.2-128 3.2 128 11.4 3.05 1.88
BHC1313A-3.2-144 3.2 144 13.3 3.15 2
BHC1313A-4.8-32 4.8 3/16 32 1 0.68 0.46
BHC1313A-4.8-48 4.8 48 2.7 1.08 0.66
BHC1313A-6.4-48 6.4 1/4 48 2.15 1.1 0.66
BHC1313A-9.5-48 9.5 3/8 48 9.7 1.25 0.76

3. Aramid honeycomb core has several advantages:

• Super light and high strength anti-fatigue

• Outstanding corrosion resistance and flame resistance

• Excellent environment adaptability and electric insulating

• Good dielectric properties and high stability

4. Applications:

• Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

5. Aramid honeycomb core of more pictures:

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

6. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, it is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

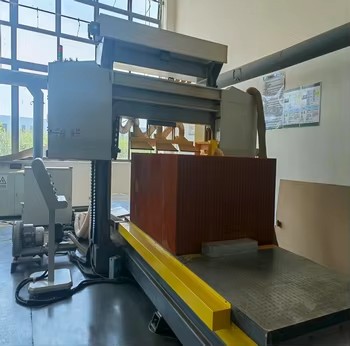

7. Factory show

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

3.2mm 4.8mm Cell Size Aerospace Grade Aramid Honeycomb Core Outstanding Corrosion Resistance

8. FAQ

Q1. What is aramid honeycomb core usd for?

A: Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in the Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and so on.

Q2. What are the advantages of aramid honeycomb core?

A: Aramid honeycomb core has the advantages of super light and high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environment adaptability and electric insulating, good dielectric properties and high stability.

Q3. What is the packaging method of aramid honeycomb core?

A: Aramid honeycomb core of small samples are packed in cardboard and bulk orders are packed in plywood cases.
