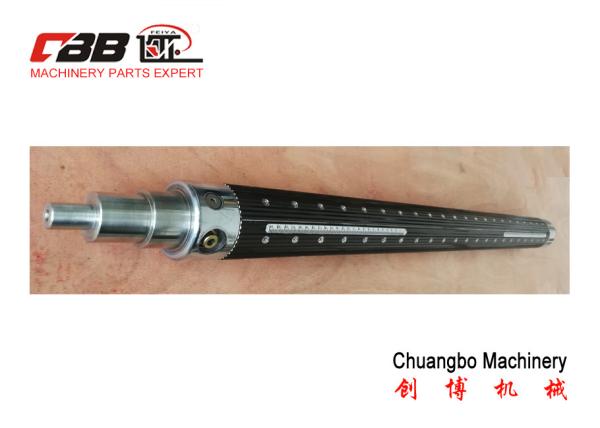

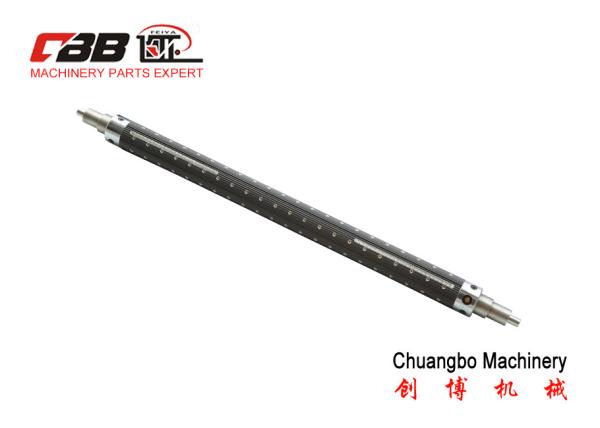

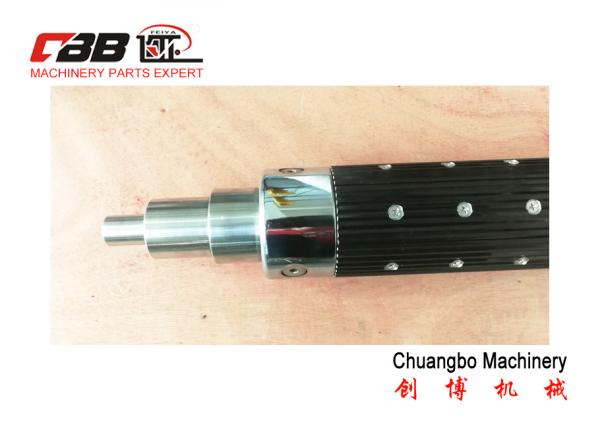

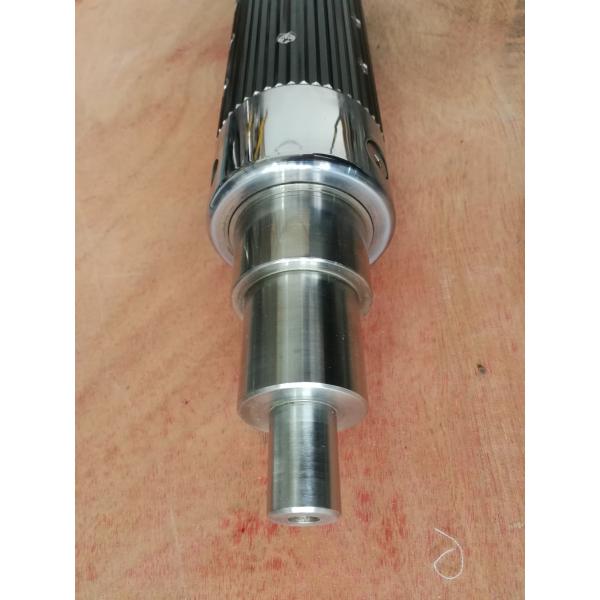

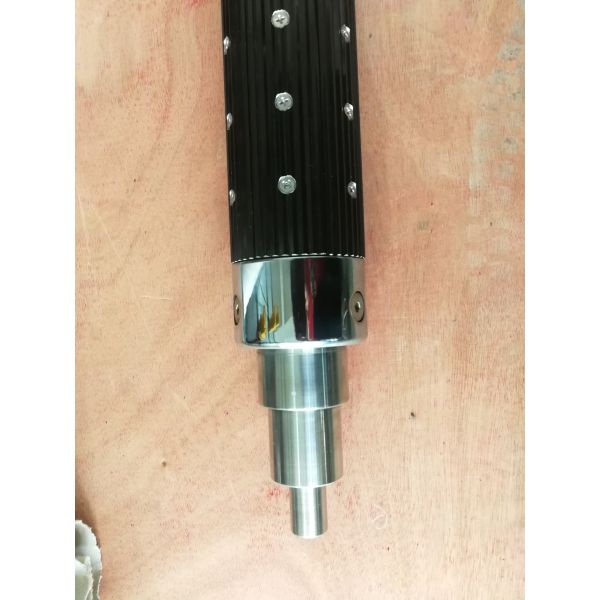

Lath Type Air Expanding Shaft For Rewind Part For 3 Inch Core Good Concentricity

Summary

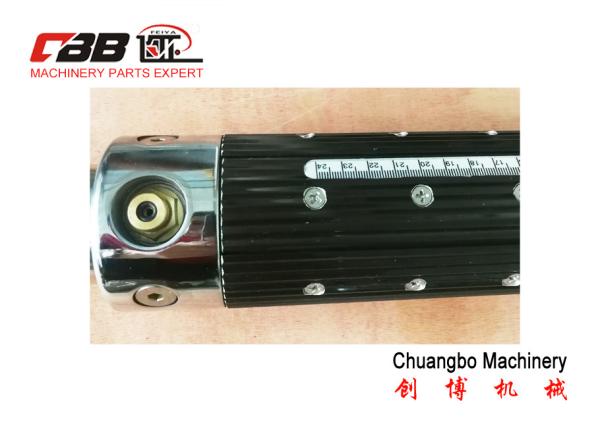

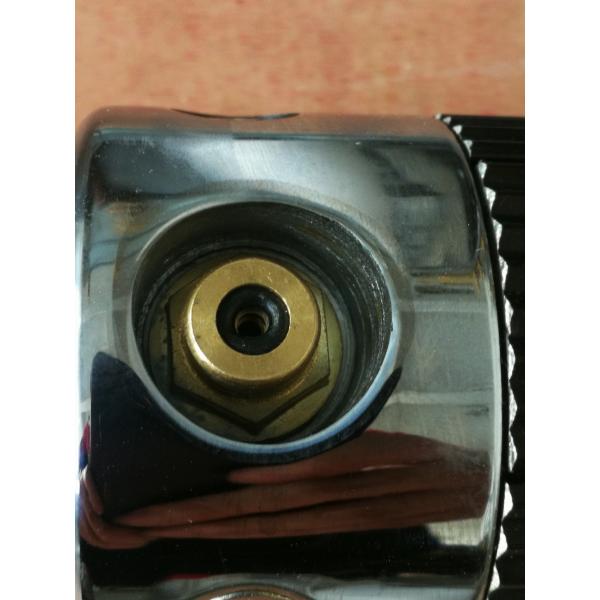

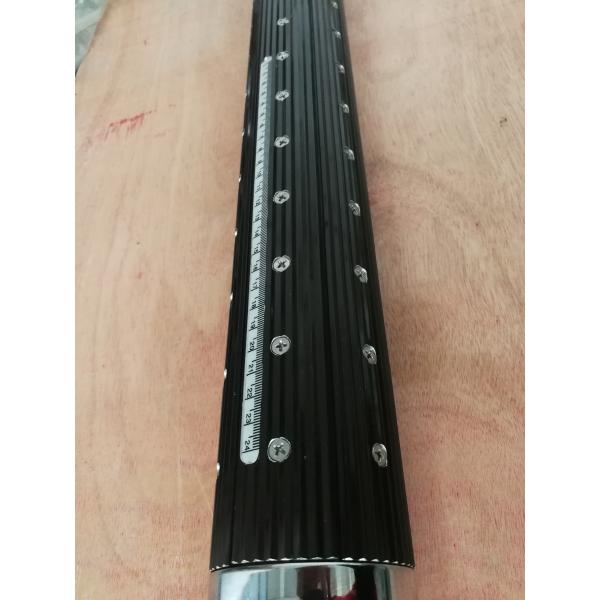

CBB brand new air shaft is a special shaft for winding and unwinding. The shaft is created by the keys on the surface, which will be expand when the high-pressure gas filled in the shaft. Air shaft is easy to operate, the user only have the air supply with the air pressure controlled within 6-8kg/cm2. Just aired the shaft through the air valve and when user want to lock the web. Just push the core activities of the air valve to deflate, the keys will revert to its original appearance, then web can be removed easily.

Product Purpose

It is applicable to winding and unwinding shaft of the related machines in coating ,cutting,printing,compounding,paper making,bag making,plastic items,specially the occasion of the high-efficient roundness required or surface winding and unwinding of the paper tube.Moreover,it also can improve efficiency and quality of the products.

It has advantages of convenient operation,quick, air shaft has big stress area, the stress distribution uniformity etc.

Application

Air shaft application in all industries

Air shaft can used for every kinds of machine which need rewind and unwind.

Size of Air Expanding Shaft

Standard size of air shaft is useful all over the world for almost all kinds of machines

We can customized other sizes of air shaft even if the air shaft is not standard size.

Advantages:

• Expands instantaneously for fast roll mounting.
• Grips cores securely without core or roll damage.
• Used for unwind or rewind positions, especially for slitting machine unwinding.
• Manual or automatic rotary union air supply.
• Positive collapse for quick roll removal.
• Reliable performance.
• Manufactured to your specifications to suit your equipment.
• Ideal for plastic, aluminum or steel cores.
• All specification can be customized.

Our strengths:

• Adoping high power press machine to realize interference fit
• Adopting hi-precision cold-drawn steel tube as the shaft body
• Adopting whole long key bar and pagoda springs for key type air shafts
• Adopting special equipment to connect air chamber and shaft head
• Quality control
• Packaging

F&Q

1. When can I get the quotation?

Usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call

us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place the order?

For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What is the MOQ?

We don't have MOQ request, 1 pieces order is OK.

4. What about the lead time for production?

Up to your quantity, normally less than one month.

5. Can you produce relative product,like adapter,hand shank?

Yes. We are profeesinal in the machinery parts, our main products including aluminum guide roller, air shaft, powder brake, centrifugal blower, torque motor and so on.
