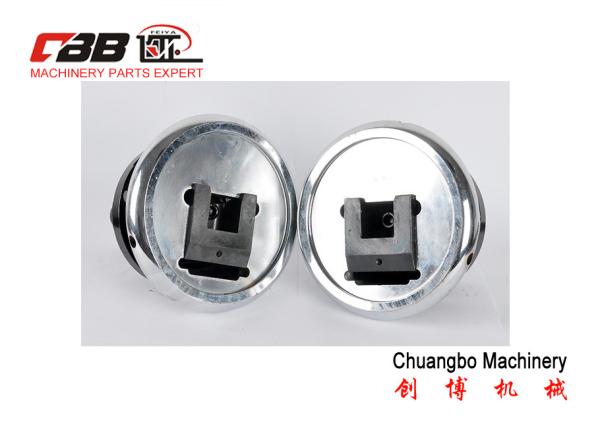

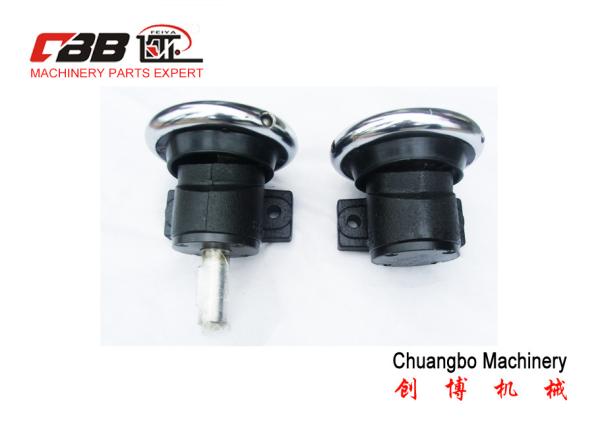

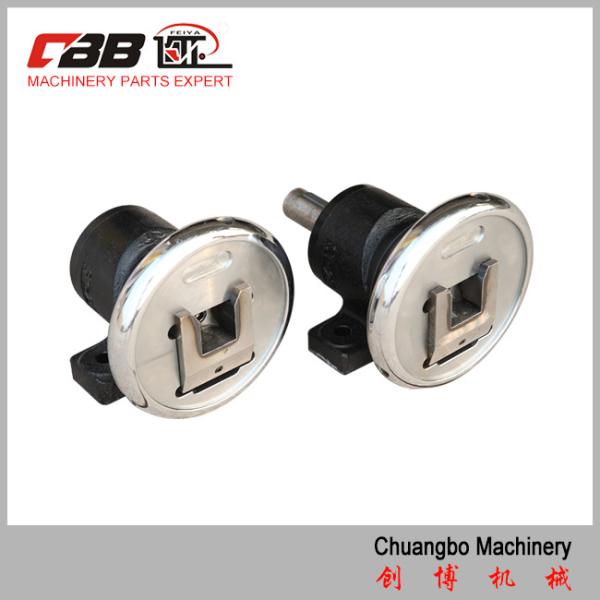

18KGFM Safety Chuck
18KGFM Safety Chuck
18KGFM Safety Chuck
18KGFM Safety Chuck
18KGFM Safety Chuck
18KGFM Safety Chuck
Specifications
Brand Name :
CBB
Model Number :
STW/STO 28
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1 set
Price :
USD300/set
Payment Terms :
T/T, Western Union
Supply Ability :
300 sets per month
Delivery Time :
7-30 days
Packaging Details :
Plywood carton
Model :
Type 28
Installation :
Foot mount
Chuck material :
Forging steel
Shaft size :
28mm
Square size :
25-30mm
HS code :
7326909000
Description

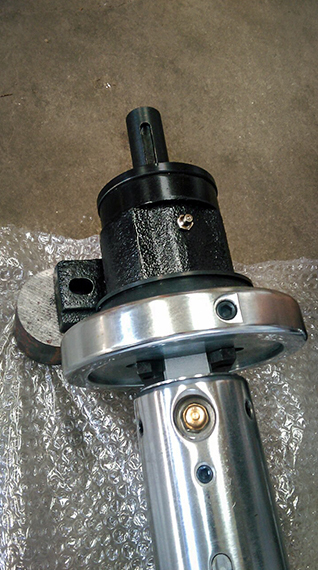

Foot Mount STW/STO 28 Steel Safety Chucks For Machine Rewind And Unwind
Summary

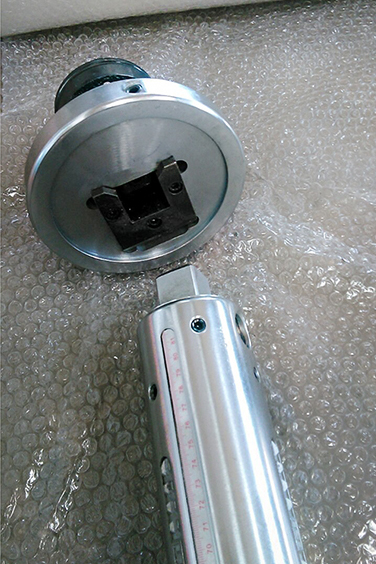

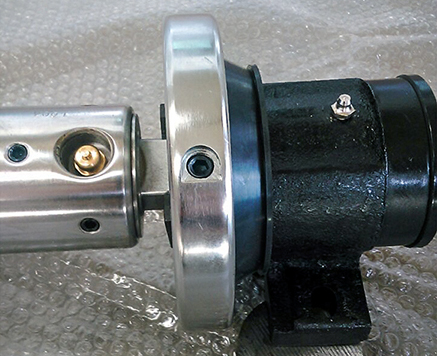

Safety Chuck is for continuous action of the shaft (air shaft) to provide fast, accurate, simple, safe and effective connection device, to avoid shaft running loose or tighten, can improve work efficiency and guarantee the quality. Safety chuck could be flange-mounted or foot-mounted. It is widely used in printing, packaging, plastics, paper, glass, pharmaceutical, electronics batteries, textile machine and industrial. THE BIGGEST MODEL IS TYPE 220

Product details

Size STW/STO 28
Maximum load 800 kg
Maximum torque 18 Kgfm
Standard square bar size 25/30 mm(22~30 mm avaiable)
Unit Weight 18 kg

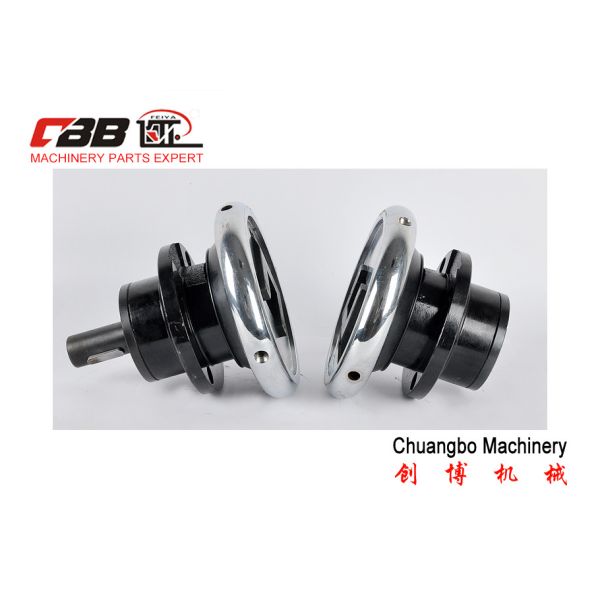

Size FLO/FLW 28
Maximum load 800 kg
Maximum torque 18 Kgfm
Standard square bar size 25/ 30 mm(22~30 mm avaiable)
Unit Weight 18 kg

Features
1. Safety chuck is needed for frequent connection transmission and out of the work of action mechanism, provides a quick and accurate, easy and safe coupling

2. Safety chuck can avoid shaft running loose or tighten, can improve work efficiency and guarantee the qulity
3. Chuck's mount square is under special heat treatment process, greatly prolongs the service life
4. Chuck's all critical dimensions for machining center, CNC machine should bed processing, ensure the accuracy of its positioning

Application

Printing machinery, bag making machinery, paper machinery, wire and cable machinery, roll of wire machinery, bundle bag machinery, textile machinery, weaving machinery, woodworking machinery, other machinery.

Advantage

  1. The overall structure of the safety chuck is reasonable, the rigidity is good, and it can withstand large torque and eliminate the looseness during rotation
  2. Accurate machining accuracy to ensure accurate positioning, the reel nozzle uses a special heat treatment process
  3. Provide replaceable VT-type reel holders, which greatly extend the service life of the safety collet
  4. The use of special alloy steel materials with superior performance, superior durability and durability

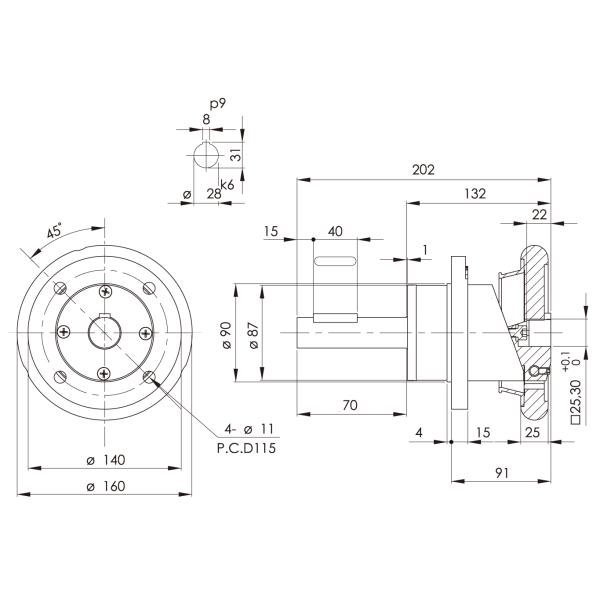

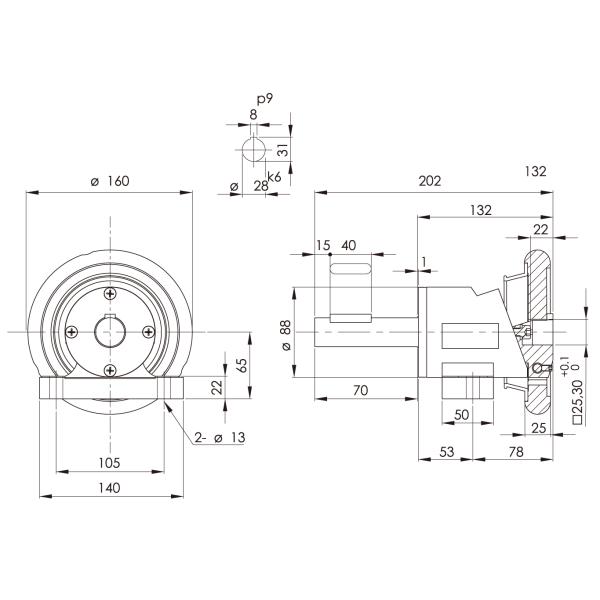

Mount

SIZE A B C D E (f7) E-F H-G K
Type 28 61 8 4 28 25.3 0.15 0.5 1
Type 35 73 18 5 30 32.38.40 0.2 0.5 1.5
Type 50 81 13 5 32 40.45.50 0.3 0.5 2
Type 75 106 16 6 40 55.65375 0.4 0.5 3

18KGFM Safety Chuck

18KGFM Safety Chuck

18KGFM Safety Chuck

18KGFM Safety Chuck

18KGFM Safety Chuck18KGFM Safety Chuck

18KGFM Safety Chuck

18KGFM Safety Chuck

18KGFM Safety Chuck

18KGFM Safety Chuck

18KGFM Safety Chuck
