Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems
Specifications
Certification :
iOS9001
Color :
Natural Silver / Black Anodized
Model Number :
KS-T260903A
Alloy Or Not :
Aluminum Alloy
Payment Terms :
T/T
Price :
Negotiation
Surface Treatment :
Clear Anodized / Black Anodized
Supply Ability :
3000ton per month
MOQ :
500kgs
Delivery Time :
Within 25 days after received your deposits
Processing Method :
Extruded L Profile + Precision Cutting + Slot Milling + Drilling
Brand Name :
KSHINE
Grade :
AL6005-T5
Packaging Details :
Plastic bag, carton case/wooden case, as per export packing standard, custom packing is available
Place of Origin :
China
OEM :
Drawing-Based OEM & Custom Sizes Supported
Description

Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems

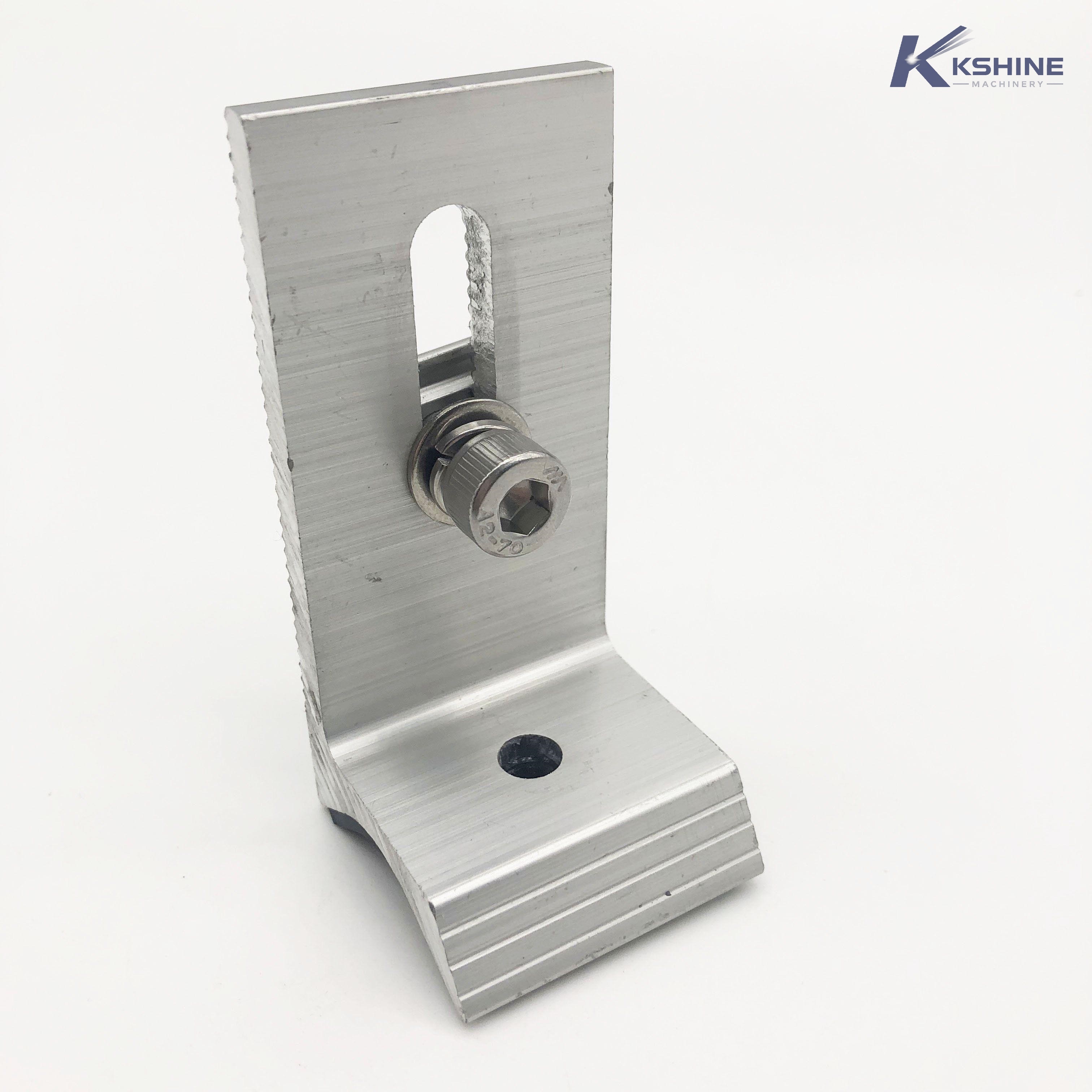

Product Name Aluminum Solar L Foot Mounting Bracket
Installation Roof Corrugated / Trapezoidal Metal Roof
Bracket Material AL6005-T5 Aluminum Alloy
Fastener Material SUS304 Stainless Steel
Mounting Function Roof-to-Rail Connection
Adjustment Design Vertical Slotted Hole

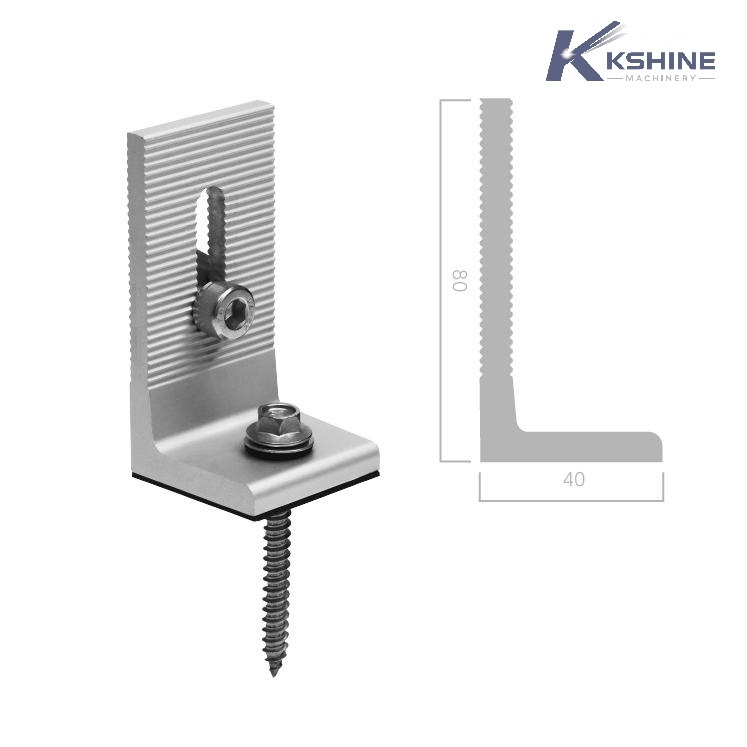

Bracket Height 80 / 105 / 125 / 150 mm or Customized
Base Structure Flat / Curved / Customized
Waterproof Component EPDM Rubber Pad Available
OEM Capability Custom Size, Hole and Rail Interface

Custom AL6005-T5 Anodized Aluminum Solar L Foot Mounting Bracket with SUS304 Fasteners for Metal Roof Photovoltaic PV Systems

Custom AL6005-T5 Aluminum Solar L Foot Bracket

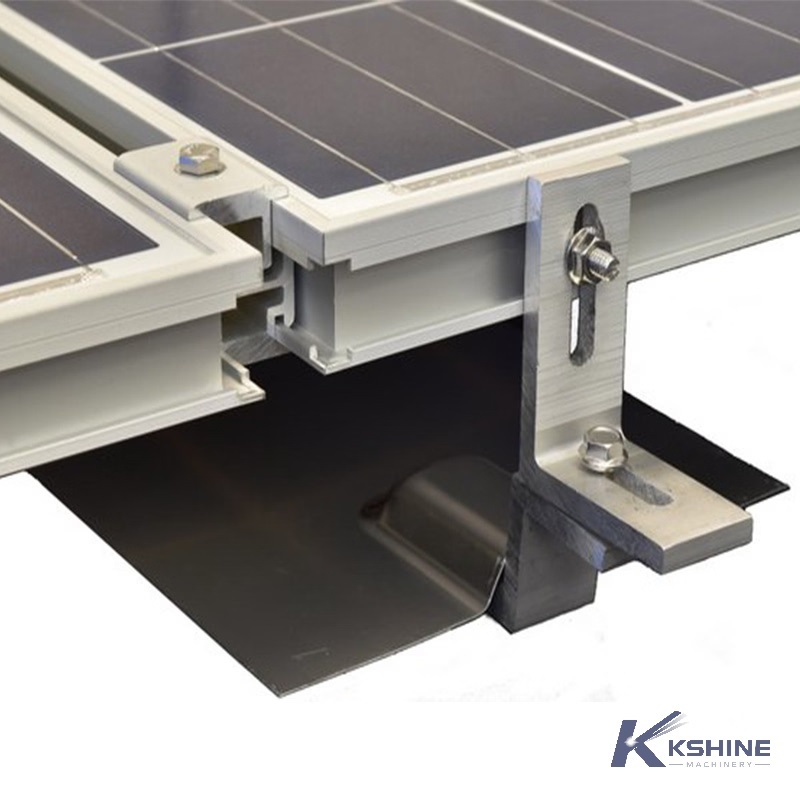

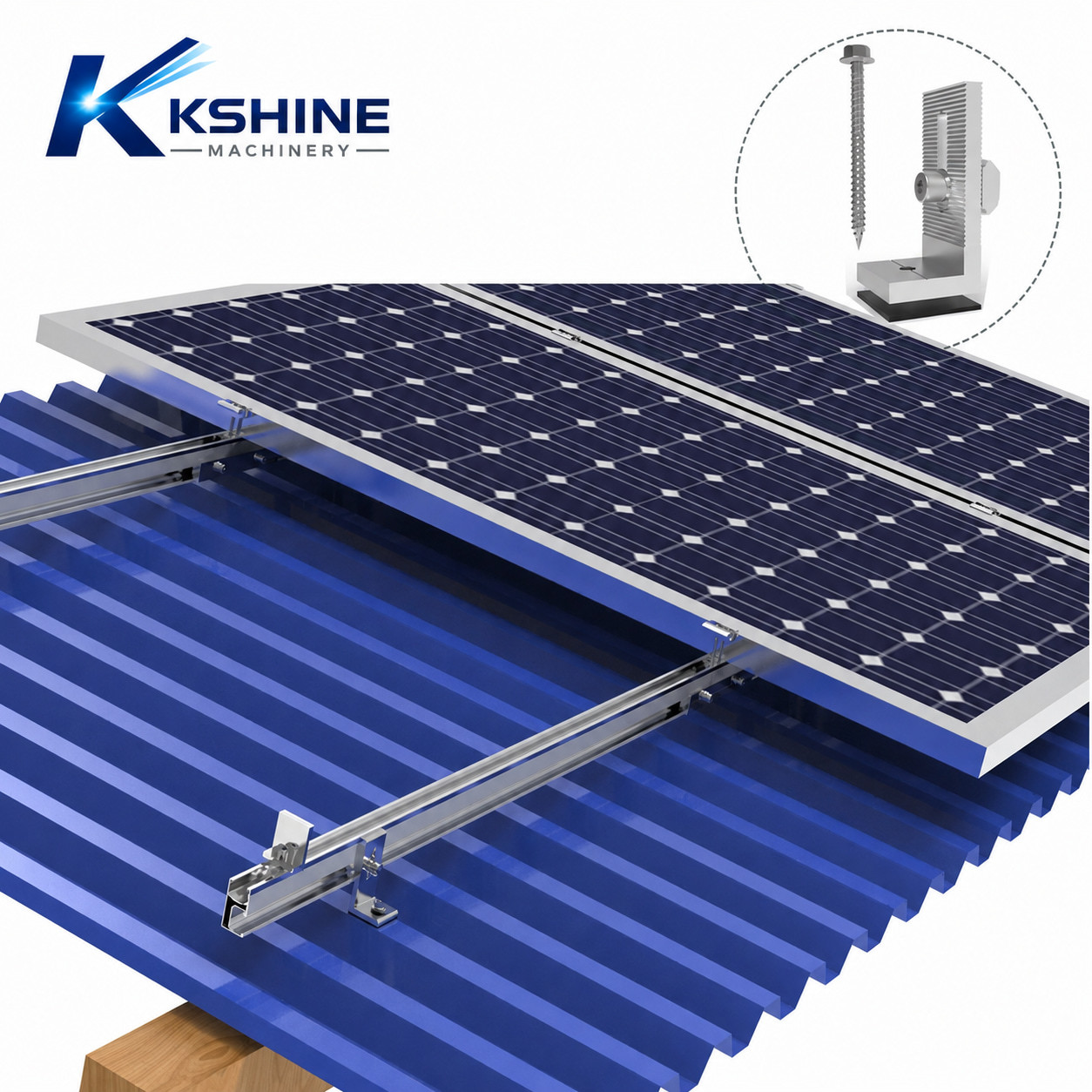

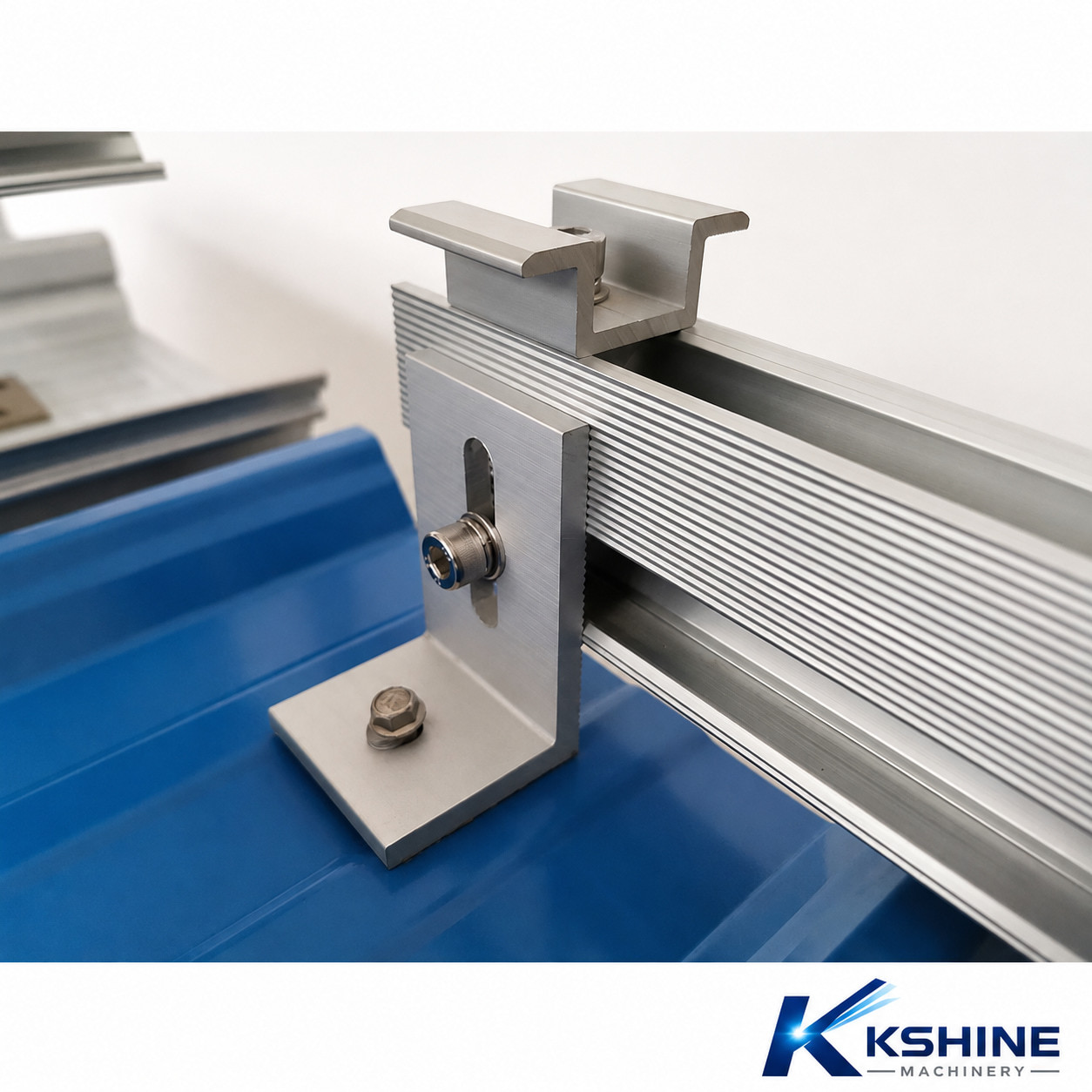

Kshine provides customized AL6005-T5 aluminum L foot mounting brackets for photovoltaic systems installed on corrugated, trapezoidal and other metal roofs. The L-shaped bracket creates a stable connection between the roof structure and aluminum mounting rail, while the slotted mounting design allows flexible positioning and height adjustment during installation.
The aluminum bracket can be manufactured through extrusion, precision cutting, slot milling, drilling, CNC machining and anodizing, with SUS304 stainless steel bolts, self-drilling screws and waterproof EPDM pads available as matching components. Bracket height, base width, slot position, profile thickness and mounting interface can be customized according to different roof structures and solar rail systems.
Natural silver and black anodized finishes are available for outdoor photovoltaic applications. Kshine supports OEM and ODM production according to customer drawings or samples, including aluminum extrusion, machining, surface finishing and complete solar mounting accessory assembly.
