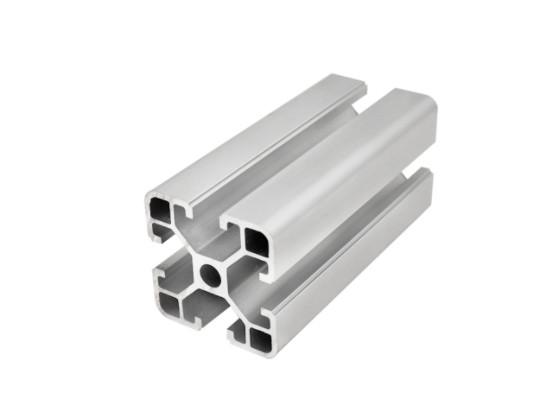

6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom
6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom
6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom
6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom
Specifications
Certification :
CA ,CE ,ISO14001:2004, ISO9001:2000
Place of Origin :
China
MOQ :
1 ton
Payment Terms :
T/T ,L/C
Supply Ability :
100 000ton each month
Delivery Time :
20days
Packaging Details :
Ep paper ,kraft ,pallet
product name :
Industrial Aluminium Profile
Alloy :
6063,6061,6005
Material :
Aluminum
Suface Treatment :
Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated，Drawbench,Steel polished
Deep process :
Milling, Drilling, Bending,Cutting
Temper :
T4, T5, T6
Description

T4 V Slotted / T Slotted Custom Industrial Aluminum Profile / Aluminium Extrusion For Industry


We are aluminium profile and accessories manufacturer in WUXI ,China .
We offer competitive price!
we sincerely provide u with the most efficient, the most economical and the simplest composite service.
Description :
Material T4 / T5 / T6 / T66 , 6063 aluminium alloy etc.
Surface treatment Can be customized, such as Mill finished, Anodized, Electroplating, Powder coated, Painted, Silver matt, Sand blasted, PVDF etc.
Aluminium Profile Size 15/20/30/40/45/50/60/80/90/100/160 series etc.
V Slot, T Slot size 6mm,8mm,10mm
Color Standard: black, silver and grey. Can be customized (RAL color numbers)
Surface Mill finish, Anodizeding, Sand Blasting, Powder coating, etc.
Deep processing Cutting Size, Drilling holes, Adding mounting bracket, Flanged side panels, etc.
Application Building, Industrial, Machinery, Automation parts, CNC
Certification ISO9001
Shipping Term EXW, FOB, C&F or others can be discussed.


6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom

Applications:

Mainly used for industrial production , such as automation equipment , enclosure of the skeleton and the companies according to their own customized mold machinery and equipment , such as assembly line conveyor , hoist, dispenser, testing equipment, shelves , etc., electronic machinery industries and clean room with a gain majority.

6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom

Specifications:

1.Primary Technical Data

1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest

2)Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%

6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom

Competitive Advantage:

1) Engineering design and support.

2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.

6005t4 Industrial Aluminium Profile V Slotted / T Slotted Custom
