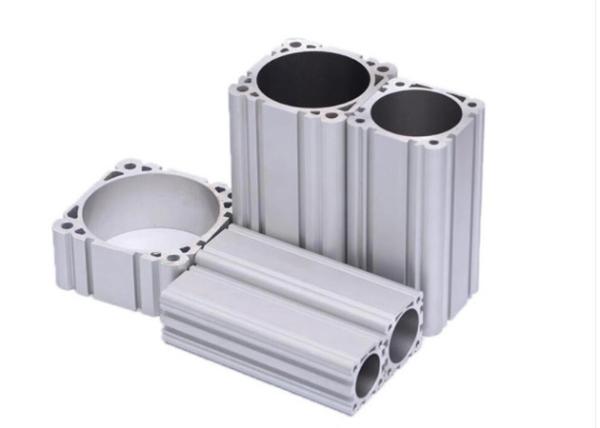

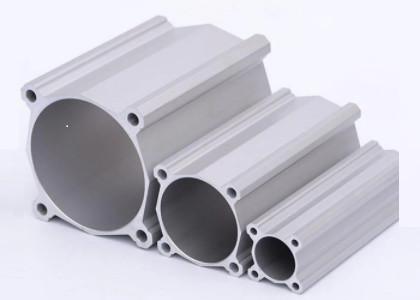

Cylinder Shell DIN Anodised Aluminium Profile
Cylinder Shell DIN Anodised Aluminium Profile
Cylinder Shell DIN Anodised Aluminium Profile
Cylinder Shell DIN Anodised Aluminium Profile
Specifications
Brand Name :
HT
Certification :
CA ,CE
Place of Origin :
China
MOQ :
500pcs
Payment Terms :
T/T ,L/C
Supply Ability :
100 000ton each month
Delivery Time :
20days
Packaging Details :
Ep paper ,kraft ,pallet
Material :
Aluminum Alloy
Surface :
Anodized
Color :
Natural
Temper :
6063-T5
Deep Process :
Cutting ,Drilling ,Milling
Packing :
Pallet / Wooden Case
Description

Silvery Anodized Aluminium Industrial Profile Cylinder Shell DIN Standard

We have a wide range of Aluminum Extrusion for Industry including :


1. Alloy:6060/6061/6063/6082/6005 etc T6/T5 are available;
2. Length <=13 meters
3. Surface treatment: Mill, Anodized, Powder Coated, Wooden Transfer, etc
4. Fabricator: cutting, millling, punch, stamping, drill, CNC, assembly, package. etc.
5. One-stop Service: Mould, Extrusion, Finishing, Fabricator and Assembly, Delivery.

Description:

Item OEM Aluminum Extrusion Profile
Material 6000 series Aluminium T4, T5, T6
Size / Thickness General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available;
Anodized protection film thickness from 8~25 um, powder coating from 40 ~ 120 um.
Shape square, round, t shaped, rectangular, customized
Surface treatment mill finish, anodized, powder coating, wood grain, sandblasting, and so on
Colors silver, black, blue, wood color, RAL powder coating color and so on
MOQ 500kgs for each item
FOB Port Shanghai
payment terms T/T 30% for deposit, balance before shipping.
settlement term Charge by final actual weight or by drawing theoretical weight.
Certificate and
Standard		 CQM, SGS, CE, BV, SONCAP / GB, ISO available

Applications:

Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.

Specifications:

1. Primary Technical Data

1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest

2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%

2. Specifications:

Excellent material for smooth and subtle edges.

Elegant appearance.

Surface treatment: colorful anodized or electrostatic powder coated.

Suitable for constructions and other industrial purposes.

Customized surface finishes are welcome.

Competitive Advantage:

1) Engineering design and support.

2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.

Cylinder Shell DIN Anodised Aluminium Profile
