Audio Anodized Radiator Aluminum Heatsink Extrusion
Audio Anodized Radiator Aluminum Heatsink Extrusion
Audio Anodized Radiator Aluminum Heatsink Extrusion
Audio Anodized Radiator Aluminum Heatsink Extrusion
Specifications
Brand Name :
HENTEC
Certification :
CA ,CE
Place of Origin :
China
MOQ :
1 ton
Payment Terms :
T/T ,L/C
Supply Ability :
100 000ton each month
Delivery Time :
20days
Packaging Details :
Ep paper ,kraft ,pallet
product name :
Aluminum Heatsink Extrusion Profiles
Alloy :
6063,6061,6005
Material :
Aluminum
Suface Treatment :
Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated
Deep process :
Milling, Drilling, Bending,Cutting
Temper :
T4, T5, T6 ,T66
Description

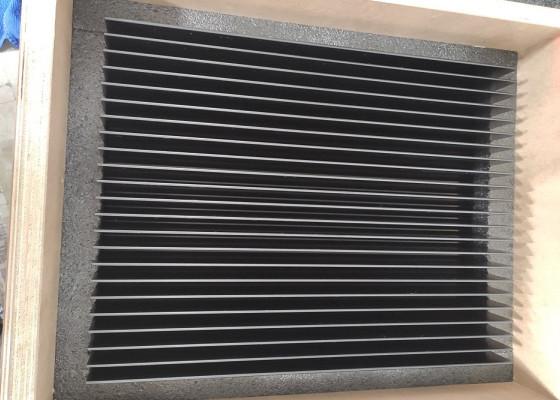

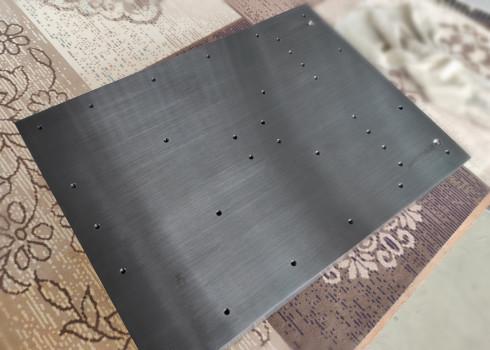

Anodized Radiator Aluminium Heatsink Extrusion , Extruded Heat Sink Profiles For Audio


Our Advantages:


1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. 100% new material
3. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
4. Effective and strong technical support (30+ engineers) and excellent sales services .
5. Sufficient production capacity (44extrusion lines; 3+ CNC machines).
6. Efficient communication (48-hour quote lead time).



Quality Control: We operate the most strict quality system,the detection is from the material,production process to final product,and ensure the product quality.

Process: Die design--Die making--Smelting and alloying--Quality control--Extruding--Cutting--Heat treatment--Surface treatment--Welding--Packing

Packing: Packed with plastic film, then wrap by craft paper or EPE film.

Technology Supports

1. Engineering Design.

2. Quality Standard: China GB, according to the Drawing and the Customer's Details.


Specifications:
1. Primary Technical Data
1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


Audio Anodized Radiator Aluminum Heatsink Extrusion
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
Audio Anodized Radiator Aluminum Heatsink Extrusion
