Aluminum Extrusion Profiles Cutting Drilling CNC Machining Anodized
Aluminum Extrusion Profiles Cutting Drilling CNC Machining Anodized
Specifications
Brand Name :
HT
Certification :
CA ,CE
Place of Origin :
China
MOQ :
1 ton
Payment Terms :
T/T ,L/C
Supply Ability :
100 000ton each month
Delivery Time :
20days
Packaging Details :
Ep paper ,kraft ,pallet
product name :

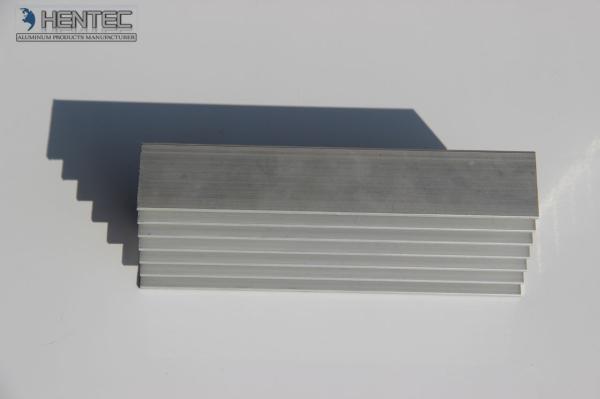

Aluminum Heatsink Extrusion Profiles
Alloy :
6063,6061,6005
Material :
Aluminum
Suface Treatment :
Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated
Deep process :
Milling, Drilling, Bending,Cutting
Temper :
T4, T5, T6 ,T66
Description

Descrition:

Hentec Industry is dedicated to the development, manufacture and marketing of high-performance aluminum extrusion profiles . We pride ourselves on rapid sampling, flexible production methodologies and world-class technical support to our customers. We have significant experience in the thermal management arena and look forward to working with our customers, wherever they are in the world, and however demanding their needs are. And now, our products have been sold in more than 1000 global customers.

Name

High Quality Aluminum Heatsink Extrusion Profiles , With Cutting , Drilling , CNC Machining

Available materials

Aluminum, Alloy

Process

CNC milling and turning, drilling, grinding, bending, stamping, tapping

Tolerance:

0.02mm~0.1mm

Surface Roughness

Ra1.6-3.2

DRW format

PDF/DWG/IGS/STP/ etc

Equipment

CNC machining center, CNC turning, General milling machines.

Capacity:

10,0000pieces per month

MOQ:

10pcs

Machining Scope:

1). Equipment/Machinery

2). Medical & Technological parts

3). The Automotive/motorcycle parts

4). The telecommunication parts

5). The power tool parts

6). Bicycle parts

7). The agricultural parts

8). Hardware

QC System:

100% inspection before shipment

Payment term

T/T ,Pay Pal, West Union

Surface treatment

Anodizing, zinc/chrome/nickel/silver/gold Plating, Polish, Imitation, , Heat treatment etc

Shipment Terms:

1) 0-100kg: air freight priority

2) >100kg: sea freight priority

3) As per customized specifications

Packing

1. Prevent from damage.

2. As customers' requirements, in perfect condition.

3. Send the sample by express, 3~5 days door to door service.

Note:

All parts are not in stock, custom made according to customer's drawings or samples!

If you have any parts to be made, please feel free to send your kind drawings



Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...

Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


Aluminum Extrusion Profiles Cutting Drilling CNC Machining Anodized
Competitive Advantage:
1, We can do the designs according to the customers' requirement
2, We can open customers' own die as per their requirement
3, We can offer you the high quality products & reasonable price
4, We can offer you a good after-sell service
5, We have strong professional design team
6, Prompt delivery, sample order is welcome.
Aluminum Extrusion Profiles Cutting Drilling CNC Machining Anodized
