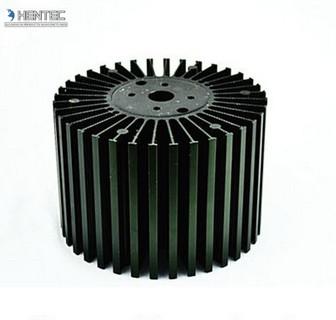

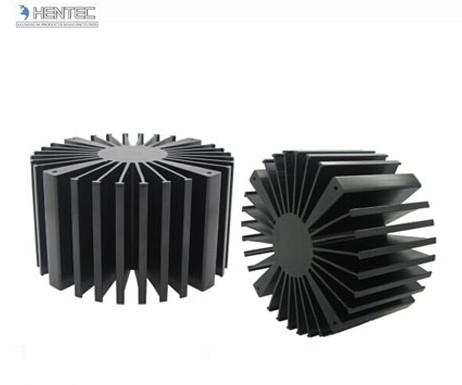

T4 T5 T6 Temper Heat Sink Aluminium Extrusion Profiles with Black Anodized
T4 T5 T6 Temper Heat Sink Aluminium Extrusion Profiles with Black Anodized
T4 T5 T6 Temper Heat Sink Aluminium Extrusion Profiles with Black Anodized
T4 T5 T6 Temper Heat Sink Aluminium Extrusion Profiles with Black Anodized
Specifications
Brand Name :
HT
Model Number :
KTH-007
Certification :
CA ,CE
Place of Origin :
China
MOQ :
1 ton
Payment Terms :
T/T ,L/C
Supply Ability :
100 000ton each month
Delivery Time :
25days
Packaging Details :
Ep paper ,kraft ,pallet
product name :
Aluminum Heatsink Extrusion Profiles
Alloy :
6063,6061,6005
Material :
Aluminum
Suface Treatment :
Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated
Deep process :
Milling, Drilling, Bending,Cutting
Temper :
T4, T5, T6 ,T66
Description

Star Heat Sink / Aluminium Extrusion Profiles / Black Anodized

Descrition:


Hentec Industry is specialize in develop, manufacture and marketing of high-performance aluminum Heat sink .

T4 T5 T6 Temper Heat Sink Aluminium Extrusion Profiles with Black Anodized

Item

Environmentally Friendly Circular Aluminum Heatsink Extruded Profile , Anodized

Characteristics of mechanics

1, Tensile strength: ≥ 205 N/mm2

2, Yield strength: ≥ 110 Mpa

3, Hardness(HW): ≥ 8

Appearance

1, No obvious Crack, Scratch , Peeling, Corrosion and air bubble

2, Hang mark is accepted at two end of the profiles, but should less than 10mm

Application

1, Architecture: Windows and Doors, Curtain Walls, Shutter, Louver, Barrier, Fence, Ceiling, Handrail, balustrades, showcase, Partition

2, Industrial: tube, pipe, LED strip, heat-sink, motor housing, fins, tent, solar, Vehicle beam, TV Frame

3, Furniture: Chair, Wardrobe, Cabinet, Ladder, Closet, Tile Trim

Products Feature

1, Environmentally Friendly, Elegant appearance

2, Corrosion-Resistant, Abrasion Resistant, High Weather Resistant

3, Air-Proof, Water-Proof, Anti-Aging, Durable, Shining



Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...

Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


T4 T5 T6 Temper Heat Sink Aluminium Extrusion Profiles with Black Anodized
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
T4 T5 T6 Temper Heat Sink Aluminium Extrusion Profiles with Black Anodized
