Specifications
Place of Origin :
China
Brand Name :
HT
Certification :
CA ,CE
Model Number :
HD46
MOQ :
1 ton
Packaging Details :
Ep paper ,kraft and pallet
Delivery Time :
20days
Payment Terms :
T/T or L/C
Supply Ability :
100 000ton each month
Product Name :
Aluminum Door Extrusions
Alloy :
6063,6061,6005
Material :
Aluminum
Suface Treatment :
Mill Finished,Anodized,etc
Temper :
T4, T5, T6 ,T66
Application :
buildings,commercial,industrial
Description

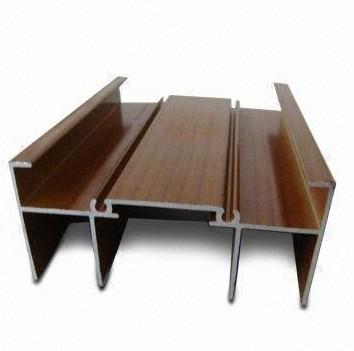

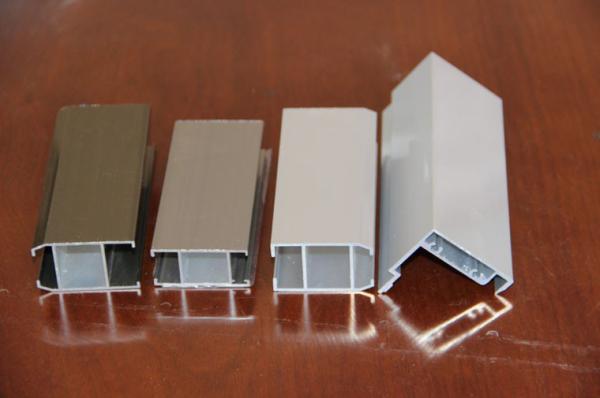

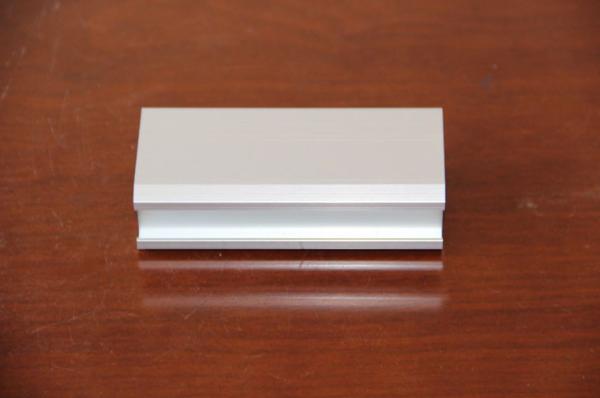

Aluminum Door Frame Extrusions



1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.
5.Application:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
6.Color:clear, satin, bronze, black, golden, silver, other multicolor
7.Temper: T4, T5, T6 ,T66

Description:

The surface treatment :

1) Mill Finished

2) Anodized : Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um .

3) Electrophoretic coated : Silver, champagne, bronze, black, light bronze, dark bronze.

4) Powder spray coated : Normal color, special color. Thickness: 60 to 80 um.

5) Fluorocarbon powder spray coated /PVDF Paint: Normal color, special color.

6) Drawbench

7) Steel polished

8) Wood grain coated /Wooden transfer: Imported paper ,domestic paper.

Technical requirements


1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered

4) Material: Alloy 6063, 6061 or according to customer’ s choice

Temper: T3, T4, T5, T6

5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.

7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port

Applications:

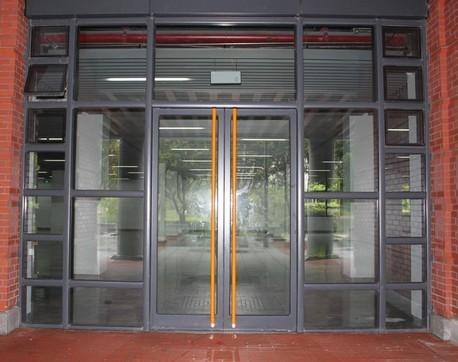

Used in living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.

Specifications:

1.Primary Technical Data

1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest

2)Mechanical property

Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%

2. Specifications :

Aluminum Door Frame Extrusions

Competitive Advantage:

1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching, drilling, milling, and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
