Specifications
Brand Name :
Guomei Aluminium
Certification :
ISO9001, ISO14001,ISO45001
Place of Origin :
Hebei,China
MOQ :
500KGS UP for initial order quantity negotiable OK
Price :
negotiable
Payment Terms :
30%deposit+70% against BL copy, D/P, L/C
Supply Ability :
3000TONS PER MONTH
Delivery Time :
1-7 days, according to the weight you need
Packaging Details :
Protective Film+Shrinkage Bags, Whole Craft Paper
Model Number :
GM-GY-001
Shape :
Customized designed shape
Material :
6063-T5 T6 , 6061-T5 T6
Surface Treatment :
Anodized, Mill Finish, Powder Coated
Application :
Building, Industry,Machinery,
Wall Thickness :
0.70mm up
Length :
Normally 6metres, customized length available
Description

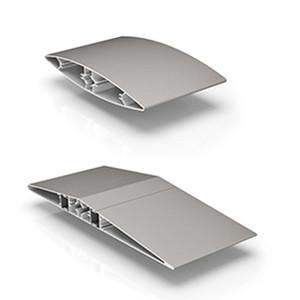

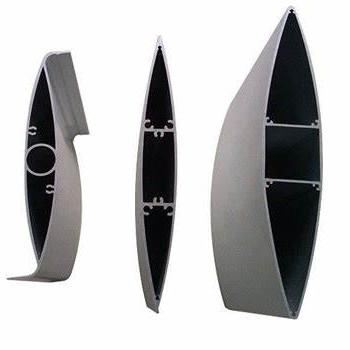

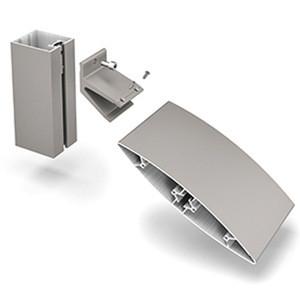

Customized Powder Coated Aluminium Alloy Louvre Profiles Applied For Exterior Decoration

Product Sizes

Product Code Sizes Weight (kg/m) Perimetre (mm) Area (mm²)
GM-NEWZ-04 65X16X1.2 0.616 156.85 215.97
GM-NEWZ-09 90X16X1.2 0.862 207.00 302.38
GM-NEWZ-07 91X10X1.35 0.837 193.42 293.60
GM-NEWZ-05 107X16X1.2 0.9 260.78 314.41
GM-NEWZ-06 120X20X1.3 1.1 250.00 381.52
GM-NZJUN-002 120X24X1.9 1.8 254.00 629.20
GM-NEWZ-70 150X23X1.5 1.31 310.40 459.60
GM-NZJUN-14 150X27.4X1.9 2.2 311.10 768.00
GM-NZJUN-15 200X34.5X2.0 3.09 412.40 1083.80

Louvre Standard Aluminium Extrusion Profiles

Louvre Standard Aluminium Extrusion Profiles Louvre Standard Aluminium Extrusion Profiles
