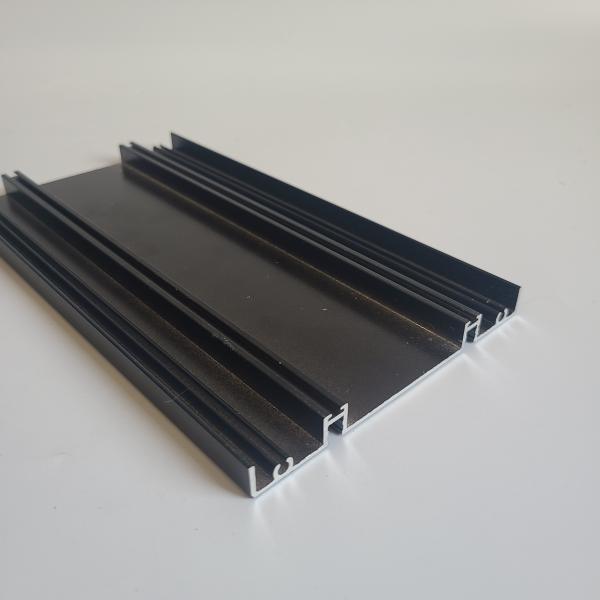

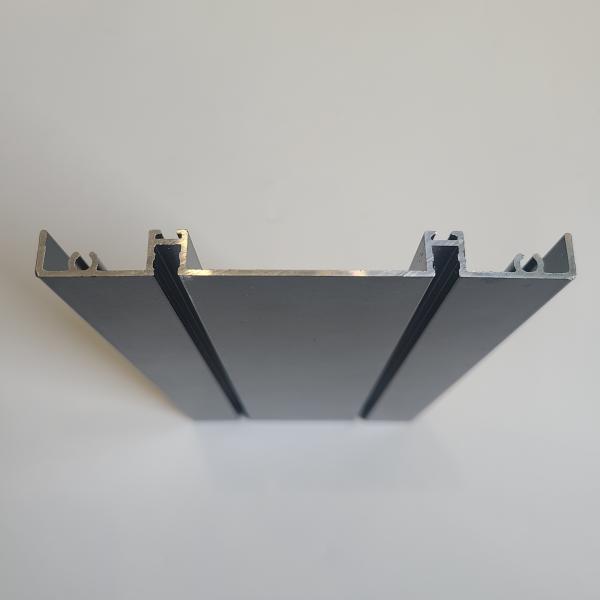

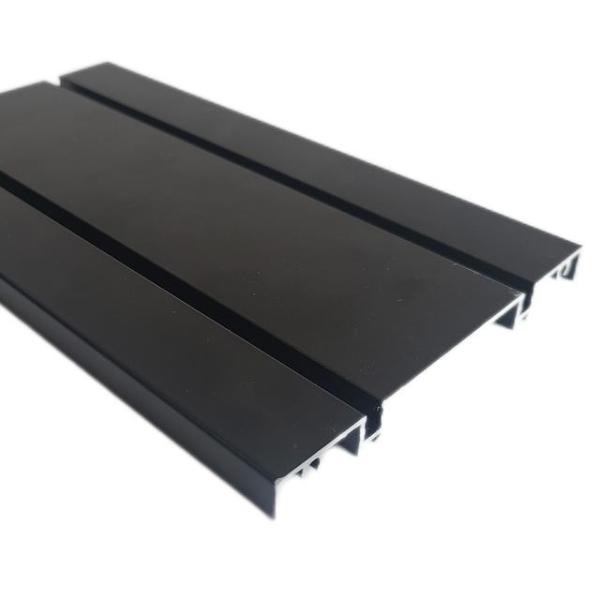

25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting
25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting
25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting
25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting
25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting
25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting
Specifications
Brand Name :
Dolphin
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500000 Kilogram/Kilograms per Week
Delivery Time :
15-21 work days
Packaging Details :
pearl cotton+paper box,6 meters long
Model Number :
H548
Material :
Aluminum Alloy
Surface :
Powder Painted
Certification :
CA ,CE
Description

Customized Aluminum Window Extrusion Profiles GB/75237-2004 / Powder Painting / Anodizing

Customized Aluminum Window Extrusion Profiles GB/75237-2004 / Powder Painting / Anodizing

Temper: T4, T5, T6 ,T66
Deep process: Milling, Drilling, Bending,Cutting.
Alloy :6063,6061,6005 or according to customer’ s choice
Material:Aluminum
Color:clear, satin, bronze, black, golden, silver, other multicolor

Description:

Item Customized Aluminum Window Extrusion Profiles GB/75237-2004 / Powder Painting / Anodizing
Material Aluminium 6000 series alloy, such as 6061, 6063, 6082 etc.
Temper T4, T5, T6
Thickness General profile thickness:0.8-5.0mm; Anodized protection thickness: 8-25um; Powder coating color thickness: 40-120um.
Size 3m-6m per piece, or customized.
Shape Square, flat, round, hollow, oval, triangle, U-profile, L-profile, T-profile, H-profile, customized available.
Surface Treatment Mill-finish, anodized, powder coated, electrophoresis, wood grain, timber, PVDF paint, polishing, brushed, sand blasting
Color Silver, champagne, black, bronze, gold, white or customized
Application Window and door with thermal break strips, curtain wall, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicle, motor housing, machine, tent, solar panel, industrial profile, decoration profile etc.
Deep Process CNC, drilling, milling, cutting, tapping, welding, bending, assembling.
MOQ 500 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ.
OEM service Drawing, sample or design service offer by customer.
Production Capacity 2400-3000 Metric tons monthly.
Brand Name Hentec
Certificatesand Standard 1) ISO9001-2008/ISO 9001:2008; 2) CQM CERTIFICATES; 3) SGS, CE, BV, JIS, AS, NZS, QUALICOAT, QUOLANOD AVAILABLE.
Guarantee Surface color can be stable for 10-20 years indoor using.
Packing Details Inside: pack with plastic protective film to protect each piece.
Outside: wrap to bundle by waterproof craft paper or EPE film, or customized
Delivery time Die developing and sample testing: 12-18 days .
Mass production: 25-30 days after confirming sample by buyer.
FOB Port Shanghai
Payment Terms T/T 30% for deposit, balance before delivery/LC
Settlement Terms Charge by final actual weight or by drawing theoretical weight.

Applications

Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel,etc.

Specifications:

25um Aluminium Sliding Window Profile GB/75237-2004 Powder Painting

1.Primary Technical Data

1)Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest

2)Mechanical property

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%

Competitive Advantage:

1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
