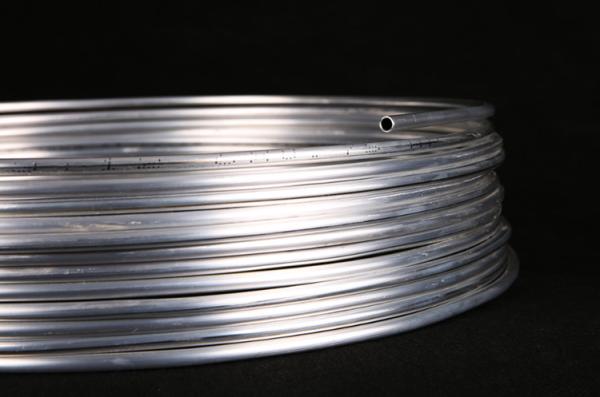

Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger
Specifications
Place of Origin :
Anhui, China (Mainland)
Model Number :
1060
Brand Name :
TATATO
Supply Ability :
50 Ton/Tons per Day
Packaging Details :
Wooden case
MOQ :
1000 Kilogram/Kilograms
Price :
Negotiable
Certification :
Reach & Rohs
Grade :
1000 Series
Shape :
Round
Length :
In coil or according to customer request
Alloy Or Not :
Non-alloy
Temper :
O - H112
Al (Min) :
99.6%
Wall Thickness :
0.5-1mm
Color :
Silver
Application :
Refrigeration
Port :
Wuhu, Nanjing, Shanghai
Description
Product Description
Characteristic parameter table
Grade Standards Tensile strength (MPa) Elongation 10% Elongation 5% Characteristics and scope of application
Al 1070A GB/T4437.1-2000 60-95 ≥22 ≥25 Industrial pure aluminum, with high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, but low intensity, heat treatment can not be strengthened and not be cut; can gas welding, welding and exposure to hydrogen atoms welding, brazing can not afford; vulnerable processing and extension of various pressures, bending.
Al 1060A GB/T3191-1998 60-95 ≥22 ≥25
Detection of parameter table
Serial number Test items Units of measurement Monitoring data
1 Internal and external surface quality Clean
2 The inner surface of dust concentration in g/ ≤0.017
3 Inside surface roughness ≤Ra0.40
4 Water content g/ ≤0.02
5 Tensile strength Mpa ≥70
6 Iron % 0.12
7 Silicon % 0.02
8 Copper % 0.01
9 Pressure test ≥1.3Mpa/16
10 Elongation % ≥37%

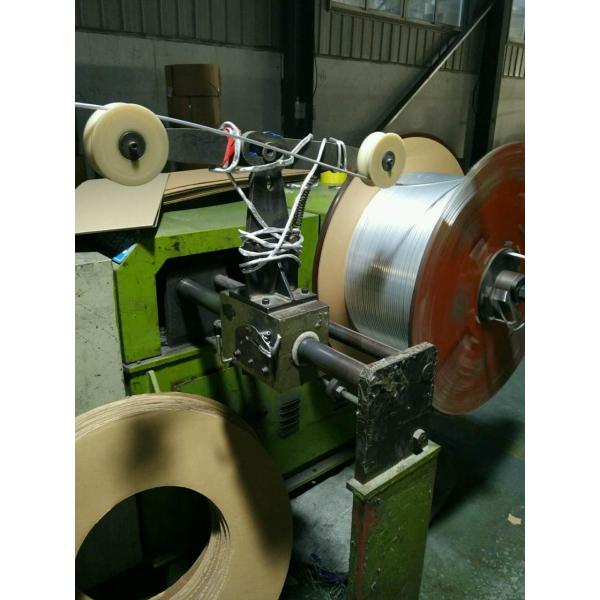

Production Process

Extruded Aluminum Coil Tubing For Refrigerator Air Condition Heat Exchanger

Q:What is delivery time?

A:20~30 days after deposit.Except for public holidays.

Q:How can you guarantee the quality?

A:We have rigorous quality test system, from raw materials to finished products, the materials

Must be checked and signed by QC people.

Q:How long can I get a quote?

A:The quotation can be provided not longer than 24 hours on condition that we know all detailed

Requirements.

Q:What information should I let you know if I want to get a quotation?

A:1) The size of products (Alloy ,width ,thickness, application);

2) The specification of the products you want.

Q:Can you provide a sample for our testing before confirm the order?

A:Yes.We can provide sample to you for approval before you place an order to us.Free sample

Is available if we have stock.

Q:Can we visit your company and factory?

A:Yes, warmly welcome!We are a manufacture.We have our own factory in Anhui province China.We can book the hotel for you before
you come to China .Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
