Specifications
Brand Name :
TATATO
Model Number :
TA-R01
Certification :
REACH & ROHS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 pcs/day
Delivery Time :
7-10 days
Packaging Details :
Export carton+ Wooden Pallet; Wooden box
Material :
Aluminum
Color :
Silver
Application :
Direct cooling refrigerator
Structure :
Aluminum tube & Aluminum Plate
Size :
according to customer drawing
Refrigerant :
R134a, R600a, R404a
Voltage :
110-120v/220-240v
Condition :
New
Description

Direct Cooling Refrigerator Evaporator Aluminum Tube on Aluminum Plate

Product Description

1. Item no.: TA-R01

2. Features

Raw material
Aluminum tube or copper tube and aluminum plate
Application:
Refrigerator, Freezer, Display case
Expand size:
L max≤1500mm, W max≤550mm
Structure:
Aluminum tube and plate Sulfidation bonding form type
Key process:
Prepare the material→aluminum plate processing→bending →crushing
→bonding→sticking a doublesided tap →welding →leakage test →parceling capillary→bending B →shaping→keeping pressure→ inspection→packing
Spec.

Aluminium pipes:φ8x0.7mm (or according to customer drawing)

Thermal conductivity adhesive film:δ=0.12mm(or according to customer drawing)

Aluminium sheet :δ=0.4mm(or according to customer drawing)
Leakage Test Charge 0.3Mpa air pressure(Nitrogen)
Residual impurity(mg):
≤100mg/100cm3
Max single impurity:
≤2mg

3. Production Process

Refrigerator Evaporator Freezer Evaporator Tube on Plate Evaporator

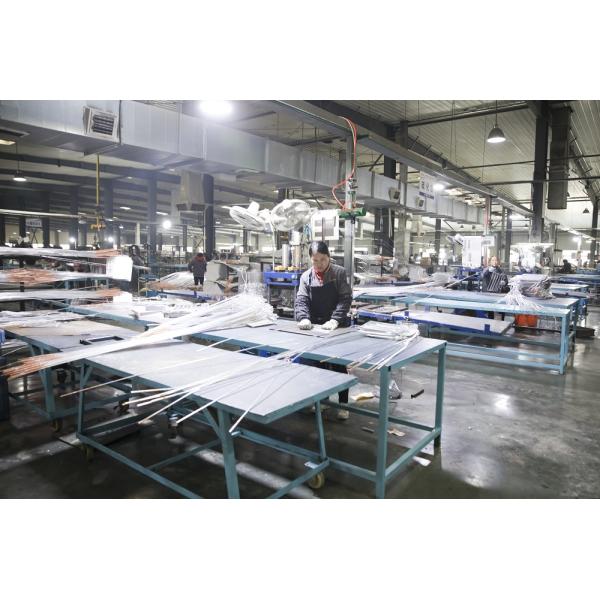

4. Production line

Refrigerator Evaporator Freezer Evaporator Tube on Plate Evaporator
