5454 H32 Aluminum Plate
5454 H32 Aluminum Plate
5454 H32 Aluminum Plate
5454 H32 Aluminum Plate
Specifications
Brand Name :
OEM
Certification :
ISO/SGS
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, T/T, Western Union
Supply Ability :
1000 Ton per Month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases standard export package
Name :
5052 H32 Aluminum Sheet
shape :
Plate, Sheet, Panel
Standard :
DIN ,JIS
Alloy :
5454 AIMg3Mn A5454 EN AW-5454 ALMg2.7Mn N51
Technique :
Hot rolled,cold rolled,forging,casting,etc.
Temper :
H32, H34
Application :
Marine, Chemical, Industry
Thickness :
0.4-300mm
Description

5454 H32 Aluminum Plate

Products Name:

5454 h32 aluminum alloy plate AIMg3Mn A5454 EN AW-5454 ALMg2.7Mn N51 for ship bed plate ship deck ship body/5454 aluminum plate suppliers

Product Description for 5454 aluminum sheet
Products name 5454-h32 aluminum alloy plate AIMg3Mn A5454 EN AW-5454 ALMg2.7Mn N51 for ship bed plate ship deck ship body/5454 aluminum plate suppliers
Thickness 0.4-300mm
Width 500-2800mm (as customers’ requiremnet)
Length 3m/ 6m/ 9m/12m cut as customers’ requirement
Temper H32,H34
Technique Hot rolled,cold rolled,forging,casting,etc.
Tolearnce 0.15-3.0mm(Thickness Tolerance:+/-0.02mm)
Surface Treatment Anodized,brushed,polished,mill finished,power coated,sand blast.
Surface Protection Oleo phobic coating,protective film,paint coating
Executive Standards DIN ,JIS
Materials

5454 AIMg3Mn A5454 EN AW-5454 ALMg2.7Mn N51,

also can provide 5A03 5A04 5A06 5B05 5A12 5A13 5B06 5A01 5A30 5010,5013,5014,5016,5040,5042,5043,5049,5050,5051,5082,5150,5151,5154,5183,5205,

5250,5251,

5254,5280,5283,5351

,5356,5357,5451,5552,5654,5854

,5A33
Hardness(HB) 45~75HB
Advantages of aluminum alloy in ship application
1. Because of its small proportion, it can reduce the weight of the ship, can reduce the engine capacity, can increase the speed
2. Good corrosion resistance, can reduce the oil coating and other maintenance costs, can prolong the service life
3. Good forming performance, easy to cut, stamping, Leng, forming and cutting and other forms of processing
4. Good welding performance, easy to weld
5. The elastic modulus is small, absorbing the shock stress ability is big, has the greater safety.

5454 aluminum Chemical Composition

Cu Mg Mn Fe Si Zn Ti Cr Zr Al
0.10 2.4~3.0 0.50~1.0 0.4 0.25 0.25 0.2 0.05~0.20 0.15 Remainder

Mechnical Properties 5454 h32 aluminum sheet

Alloy

Tensile Strength

σbMpa)

Yield Strengthσ

0.2Mpa)

Enlogation

(δ5%)

5454 AIMg3Mn A5454 EN AW-5454 ALMg2.7Mn N51

 Min.215 Min.85 Min.12

Application of 5454-h32 aluminum plate
1. Car Wheels
2. Inner and outer siding,
3. Bed plate and board of railway carriage
4. Transportation
5. Marine Facilities Pipeline
6. Aluminium sheet grade 5454

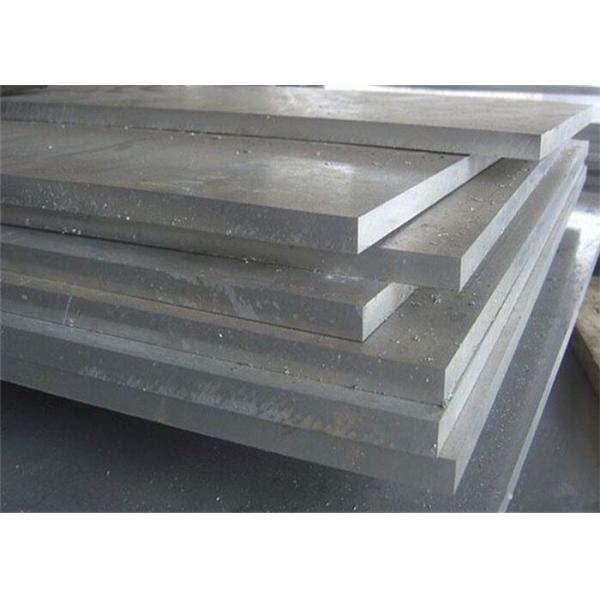

5454-h32 aluminum sheet Picture

5454 H32 Aluminum Plate
