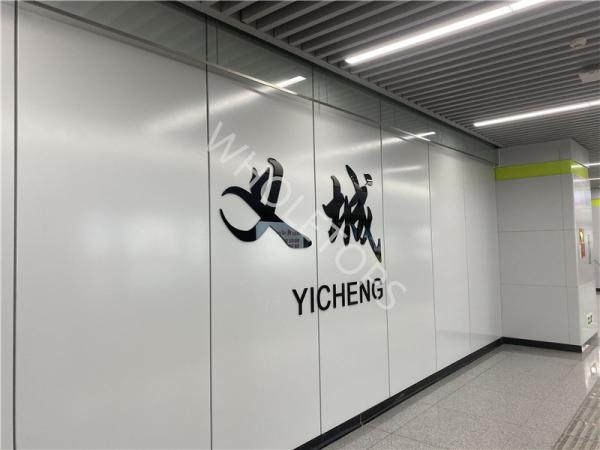

150~6000mm Length 2.0mm Pre Coated Aluminum Sheets For Subway Station

Specifications

Brand Name :

WHOLETOPS

Certification :

SGS

Place of Origin :

China

Supply Ability :

8000sqm per day

Packaging Details :

Wooden box

MOQ :

Negotiable

Price :

45USD-55USD

Delivery Time :

7-15work days

Payment Terms :

TT,L/C

Product name :

Ceramic Coated Aluminum Solid Panel

Thickness :

2.0mm—4.5mm

Surface Finished :

Ceramic Coated

Material :

Aluminum

Aluminum Alloy :

1100/3003/5005

Size :

150~3000mm×150~6000mm or customized

Application :

Shopping mall,lobby,hospital,office building

Class Fire Prevention :

Function :

Anti-Static, Antibacterial, Mould-Proof

Description

Sound Insulation Heat Preservation Corrosion Resistance Ceramic Coated Aluminum Panel

Product Overview:

Material	Aluminum	Aluminum Alloy	1100 / 3003 / 5005
Total Thickness	2.0mm——4.5mm (normal), special thickness can be customized.	Surface Finish	Ceramic Coated
Class Fire Prevention	A1	Warranty	10-20 years
Size	150~3000mm×150~6000mm, Special size can be customized.	Color	Customized
Packing	Wooden Box	MOQ	500㎡

Product Information:

WHOLETOPS brand Sound Insulation Heat Preservation Corrosion Resistance Ceramic Coated Aluminum Panel is composed of ceramic coated surface and aluminum plate. It is mainly made of high quality aluminum alloy and formed by sheet metal workshop through a variety of processing techniques. It is a kind of decoration material for building interior and exterior walls with superior performance. Its surface coating using advanced ceramic coating system, which has excellent durability, chemical corrosion resistance and good hardness and absolutely excellent fire prevention, insulation performance.

Specification:

1. Thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm and so on.

2. Surface finish: PVDF coated / Power coated

3. Aluminum Alloy: 1100, 3003, 5005

Scopes of Application:

Sound Insulation Heat Preservation Corrosion Resistance Ceramic Coated Aluminum Panel is used for facade, fence, canopy, ceiling, screen, window, etc. You can choose the patterns from our catalogue or send us the drawing or picture, we can draw it for you.

Product advantages:

Fire-proofing: Grade A
Sound insulation: weight-counted sound insulation quantity 25dB
Thermal Insulation:Thermal conductivity 0.527W/m·K
Strong weather resistance:the material is self-cleaning. Using rolling coating technology with 70% flurocarbon.
Minimum radius of arc slab is 300mm, its one-time process forming no need second time process.ensure no damage to the panel strength.

Compare with PVDF coated solid aluminum panel:

Item	PVDF coated	Ceramic paint
Fire proof grade	A2 grade(smoke)	A1 grade(no smoke)
Hardness	0~2H	7~9H
Scratch resistant	Easy to scratch	Not easy to scratch
High temperature resistant	280℃ have smoke	1600 ℃ no smoke
QBWear resistant standard	＜500 time	＞2000 time
Toxicity	Organic solvent	water
cleaning	not self-clean	Self - clean
life	15 years	30 years
