Specifications
Brand Name :
Hydeb
Model Number :
LDU-II
Certification :
CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Place of Origin :
China
MOQ :
1 set
Price :
$30000-$60000/set
Payment Terms :
T/T
Supply Ability :
20 sets per year
Delivery Time :
50 working days
Packaging Details :
Wooden Case or Pallet
Product Name :
Molten Aluminum Launder Type Double Graphite Rotor In-Line Rotory Degassing Equipment
Application :
on line Purity molten aluminum
Rotor material :
Graphite
MOQ :
1 Set
Power :
< 45KW
Degassing Efficient :
Hydrogen Less Than 0.12ml/100g-Al
Colour :
Yellow & Siliver
Description

Molten Aluminum Launder Type Double Graphite Rotor In-Line Rotory Degassing Equipment

Molten Aluminum Box type Double/Two Graphite Rotor in-line rotory degassing Equipment

1. In-line Rotory Degassing Equipment Description

The LDU has higher degassing efficiency because degassing rotors are mounted between the melting furnace
and casting machine in the length direction of the launder and the degassing zone is partitioned into several parts
for multilevel in-line degassing. The number of rotors depends on the flow rate of molten aluminum

2. In-line Rotory Degassing Equipment Mainly Specification

Items Parameters
Maximum temperature of molten aluminum 750℃
Launder shell surface temperature ≤60℃
Launder lining life ≥12 months
Rotor speed 100-600rpm
Inert gases High-purity N2, high-purity Ar
Degassing efficiency

When it is not greater than the maximum flow rate, the inlet hydrogen content is ≤0.30ml / 100gAl, when the aluminum liquid is 700-740 ℃, the hydrogen content after degassing is ≤0.22ml / 100g

-Degassing efficiency≥35% when hydrogen content at the inlet>0.30ml/100g-Al.

Power supply 380V AC 50Hz, ≤10KVA

4. In-line Rotory Degassing Equipment Models

No. Of Rotor 1 2 3 4
Type LDU-I LDU-II LDU-III

LDU-IV

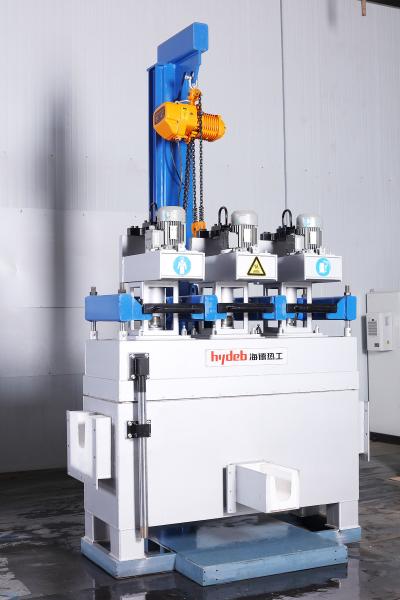

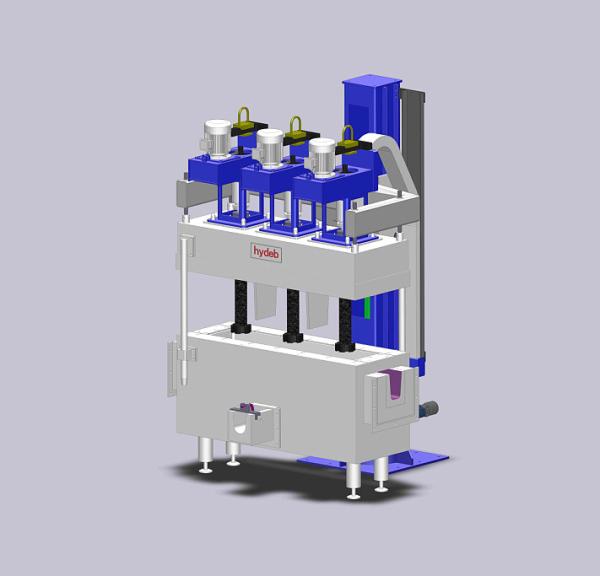

5. In-line Rotory Degassing Equipment Pictures

45KW Aluminum Degassing Double Rotor

6. Company Profile

-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment

7. FRQ

Q1: I know nothing about this in-line rotory degassing equipment, what kind of in-line rotory degassing equipment I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this in-line rotory degassing equipment, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this in-line rotory degassing equipment during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
