Aluminum T - Slotted Framing System 40 X 40 Mm , 2 Mm Wall Thick Aluminium Extrusion Accessories
Aluminum T - Slotted Framing System 40 X 40 Mm , 2 Mm Wall Thick Aluminium Extrusion Accessories
Aluminum T - Slotted Framing System 40 X 40 Mm , 2 Mm Wall Thick Aluminium Extrusion Accessories
Aluminum T - Slotted Framing System 40 X 40 Mm , 2 Mm Wall Thick Aluminium Extrusion Accessories
Specifications
Brand Name :
KaiLun
Model Number :
KL-K3188
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
1 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
T Slot Aluminum Extrusion Beams
Usage: :
For Assemble Line
Shape: :
Square
Material :
Aluminium Alloy
Key word :
T Track Aluminum Extrusions
Description

Aluminum T - Slotted Framing System 40 X 40 MM with 2 MM Wall Thickness for Assembly Line Production

Quick Detail:

1. Name: t slot aluminum extrusion
2. Size:40*40 MM
3. Weight:1.527kg/m
4. Material: 6005, 6063, 6061, etc.
5. Surface Treatment: silver anodizing
6. Coating Thickness: 10 - 15 um
7. Length: as customer's requirement

Application:

T Slot Aluminum Extrusion Profile

1. for Transport Machine

2. for Conveyor Roller

3. for Sliding Window

4. for Curtain Wall Profile

5. for 3D printer

6. for Framing Table

7. for T Slot Framing system

What Karen can do:

Business type:

Manufacturer

Standard:

GB 5237-2008 / En 755.2

Product series:

T Slotted Aluminium Profiles

Surface treatment:

Anodizing, Powder coating, electrophoresis, wooden finish

Packing:

Kraft paper, EPE foam, Shrink film, Composite paper

Payment term:

T/T, L/C at sight

Specification:

A. Alloy code 6063, 6060, 6061, 6005, 6082

B. State: T4 / T5 / T6

C. Length: 1m-6m

D. Normal Anodizing thickness: 8-15 micro

E. Normal powder coating thickness: 60-100 micro

F. Tensile strength: ≥ 160 mpa

G. Yield strength: ≥ 110 mpa

H. Extensibility: ≥ 8%

I. Hardness(HW): ≥ 8

Normal order process:

1. Confirm the drawings, colors and price;
2. Make the payment of 30% deposit
2. Start to make mould;
4. We send samples for your confirmation;
5. Mass production and delivery;

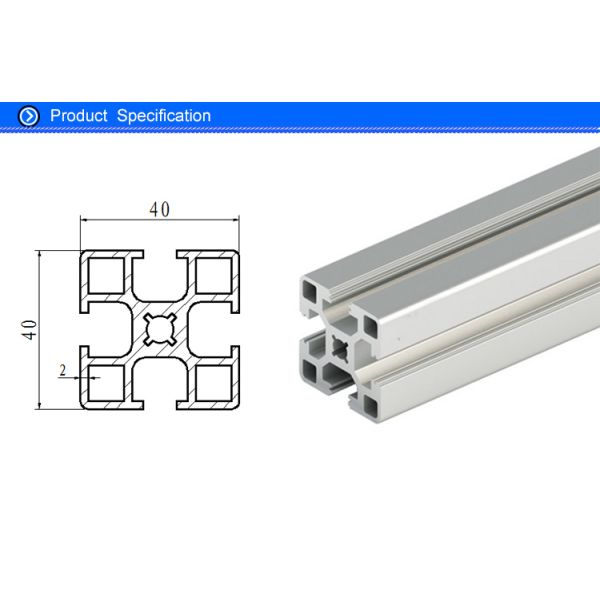

Crossing Sectional Profile:

Aluminum T - Slotted Framing System 40 X 40 Mm , 2 Mm Wall Thick Aluminium Extrusion Accessories

Factory Tour:

Waiting for your visit to check every detail.

Aluminum T - Slotted Framing System 40 X 40 Mm , 2 Mm Wall Thick Aluminium Extrusion Accessories

Characteristic Services:

1. OEM service and ODM service on 30 years experience

2. Advanced R&D team based on cooperation with university

3. One-stop service from extrusion to deep processing

4. Customized cutting length and deep processing

5. Quick reply and delivery service

6. Freely discussion about the industry news

7. We do everything in-house

8. Reliable quality (ISO /TS 16949:2009 - certified)
