Interlocking Anodized Waterproof Aluminum Decking Boards Materials 6000 series Grade
Interlocking Anodized Waterproof Aluminum Decking Boards Materials 6000 series Grade
Interlocking Anodized Waterproof Aluminum Decking Boards Materials 6000 series Grade
Interlocking Anodized Waterproof Aluminum Decking Boards Materials 6000 series Grade
Specifications
Brand Name :
KaiLun
Model Number :
KL-E4111
Certification :
ISO/TS16949:2009
Place of Origin :
Zhenjiang,Jiangsu China
MOQ :
3 Tons
Price :
Negotiation
Payment Terms :
T/T, L/C...
Supply Ability :
3000Tons / Month
Delivery Time :
Within 12 days after received your deposit
Packaging Details :
EP paper + Kraft Paper + Plywood pallet, as per export packing standard, custom packaging is available
Product Name :
Aluminium Decking Board
Application: :
For Docking Post
Shape: :
Flat Solid
Grade :
6000 series
Alloy Or Not :
Alloy
Description

Large Size Champagne Anodized Waterproof and Interlocking Aluminum Decking Boards Materials

Product Info:

Name:

aluminum decking board

Size:

175.8*30MM

Weight:

2.18kg/m

Material:

 6005, 6063, 6061, etc.
Surface Treatment:

champagne anodizing

Coating Thickness:

10 - 15 um

Length:

 1 - 6 M

Standard:

EN 755,CB/T 6892,SGS

What we can do:

Business type:

Plant

Brand:

KAILUN

Standard:

GB 5237-2008 / En 755.2

Product series:

Aluminum Decking for dock system

Surface treatment:

Anodizing, Powder coating, electrophoresis, wooden finish

Packing:

Kraft paper, EPE foam, Shrink film, Composite paper

Payment term:

T/T, L/C at sight

Specification:

A. Alloy code 6063, 6060, 6061, 6005,etc

B. State: T4 / T5 / T6

C. Length: 1m-6m

D. Normal Anodizing thickness: 8-15 micro

E. Normal powder coating thickness: 60-100 micro

F. Tensile strength: ≥ 160 mpa

G. Yield strength: ≥ 110 mpa

H. Extensibility: ≥ 8%

I. Hardness(HW): ≥ 8

Normal order process:

1. Confirm the drawings, colors and price;
2. Make the payment of 30% deposit
2. Start to make mould;
4. We send samples for your confirmation;
5. Mass production and delivery;

Chemical composition:

Aluminium Alloy Chemical Composition

Alloy

6063 (%)

6063A (%)

6061 (%)

6082 (%)

Si

0.2~0.60

0.3~0.60

0.4~0.80

0.7~1.30

Fe

0.35

0.15~0.35

0.70

0.50

Cu

0.10

0.10

0.15~0.40

0.10

Mn

0.10

0.15

0.15

0.40~1.0

Mg

0.45~0.90

0.60~0.90

0.80~1.20

0.6~1.20

Cr

0.10

0.05

0.04~0.35

0.25

Zn

0.10

0.15

0.25

0.20

Ti

0.10

0.10

0.15

0.10

Other (each)

0.05

0.05

0.05

0.50

Other (total)

0.15

0.15

0.15

0.15
Al rest rest rest rest

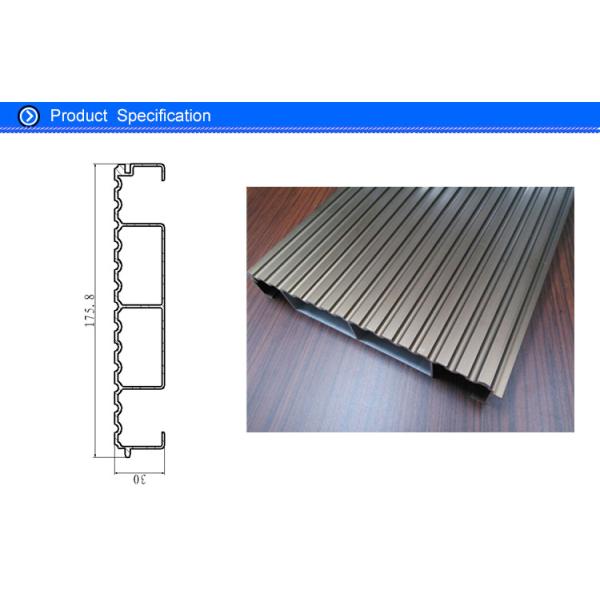

Alu Decking Drawing:

Interlocking Anodized Waterproof Aluminum Decking Boards Materials 6000 series Grade

FAQ For Saving Your Precious Time!


Q1. You are a trading company or manufacturer?
-We are manufacturer and have our own factory.

Q2. Can you do OEM?
-Yes, we can. OEM is welcomed.

Q3. What is your sample policy?
-We offer free samples, and the buyer takes responsibility of the express charge.

Q4. How long will it take to prepare samples?
-Within 15 working days.
