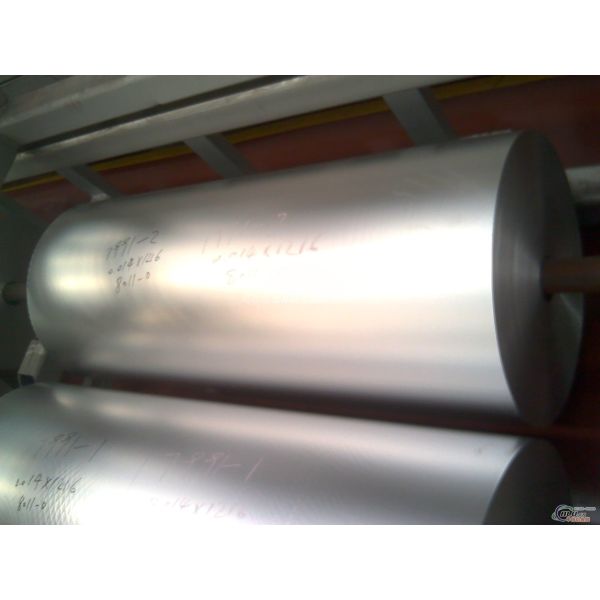

180MPa H18 Bare Aluminium / Aluminum Foil Coating For Air Conditioner Production
180MPa H18 Bare Aluminium / Aluminum Foil Coating For Air Conditioner Production
180MPa H18 Bare Aluminium / Aluminum Foil Coating For Air Conditioner Production
180MPa H18 Bare Aluminium / Aluminum Foil Coating For Air Conditioner Production
Specifications
Brand Name :
Trumony
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
5 metric tons
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50,000 mt per year
Delivery Time :
30 working days after received your down payment
Packaging Details :
Standard export packaging
Temper :
H18
Alloy :
8011
Thickness :
0.14mm
Width :
190mm
Colour :
Blue, White, Gold, According to the requests
Application :
Air conditioner
ID :
152mm
OD :
650mm
Description

8011 H18 0.160mm*600mm Bare Aluminum / Aluminium Coated Foil For Air Conditioner Production

Our mechanical property:

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Others Al
Single Total
8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 0.05 - 0.1 0.08

0.05

 00.15 Remaining

Alloy Code Temper

Tensile Strength

Rm(MPa)

 Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)
8011 H18 180 1


Commercial terms

Minimum Order Quantity: 5 metric tons
Price: negotiation
Payment Terms: T/T or LC
Supply Ability: 50,000 mt per year
Delivery Time: 30 working days after received your down payment
Packaging Details: Standard export packaging

Hydrophilic foil coating layer performance:

1, Film thickness / 1.0-2.0µm (Single side average thickness)

2, Hydrophilicity /Primary contact angle?10° /Continuous contact angle?20°

3, Adherence strength Erichsen test(pressed depth 5mm), no peeling off

4, Corrosion resistance /Salt&Spray (72 hours) R.N?9.5

5, Alkali resistance/ Dipped in 20% NaOH under 20°C for 3 minutes. absolutely no blister.

6, Impregnant resistance / Sample weight loss?1%

7, Heat resistance/ Under 200°C keep 5 minutes, performance and color unchanged; Under 300°C keep 5 minutes, coating film become a bit yellow

8, Oil proof/ Dipped in volatile oil for 24 hours, no blister on the coating layer

9, Coating film odor/ No stranger odor

10, Abrasion to mold / Same as ordinary aluminium foil

Our characteristics:


- High temperature resistant
- Weathering resistant
- Scrubbing resistant
- Sound insulation
- Acid or alkali proof
- Fireproof
- Light weight material is easy to construct and install
- Bright colors
- Easy molding process,not rusting etc.

Application:


1. Widely used in insulation board
2. Aluminum curtain wall
3. Aluminum-magnesium-manganese roofing system
4. Aluminum ceiling
5. Acp and many other areas

6. Lighting,

  • Printing,
  • Packing,
  • Decorative,
  • Electronics surface,
  • Hot rolled thick plate,
  • PS base plate,
  • Aluminum plastic base plate,
  • Aluminum curtain wall base plate,
  • Aluminum composite panel base plate,
  • Aluminum spacer,
  • Aluminum embossed sheet,
  • Aluminum tread plate

Mainly for finstock, air conditioner.

Pls feel free to contact us, either in English or Russian is OK.
