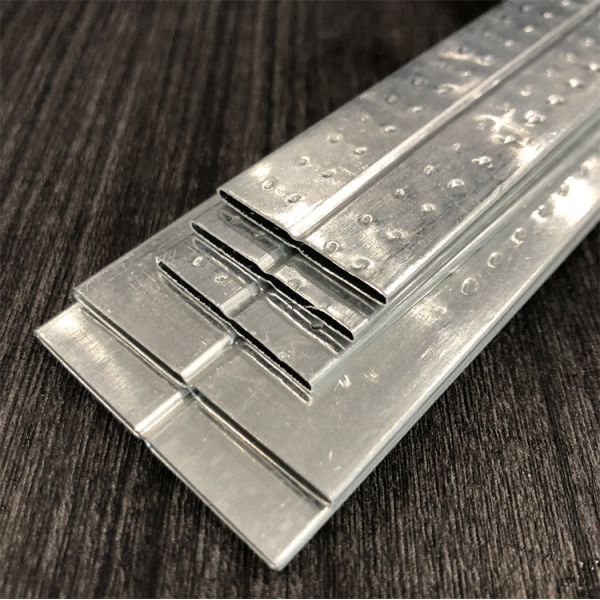

Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
Specifications
Brand Name :
Trumony
Model Number :
TR-CY096
Certification :
ISO9001，ISO14001, IATF16949
Place of Origin :
China
MOQ :
500KG
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000ton/Every Year
Delivery Time :
35days including tooling time
Packaging Details :
Export Standard Packing
Type :
3003 4343 7072 High Frequency Aircraft Welded Aluminum Radiator Tube
Keyword :
Welded Aluminum Radiator Tube
Process :
High frequency
Alloy :
4343 /3003/ 7072 ,4343/3005/7072
Thickness :
0.22-0.3mm
Tube size :
Customized as your request
Wall thickness :
0.25mm, 0.28mm or customized
Shape :
flat tube, round tube, B tube,Hour glass tube
Application :
Radiator for car & off-road
Package :
standard export package
Description

4343/3003/7072 High Frequency Aircraft Welded Aluminum Radiator Tube

Aluminium High Frequency Welded Tube is also called Aluminium HFW Pipe. It is manufactured by forming a flat strip of aluminium into a tubular shape and then joining the edges by a high-frequency-welding process, and seam welded without the use of any filler material. The welded tube is then adjusted in size until reaching the exact size and tolerances.

The welded tube is a kind of composite tube. The main difference between extruded and drawn tubes is the possibility to have a weldable layer material of different aluminium alloys. Generally, the core material is 3003 and the clad weldable alloy is 4343 or 4045. It is widely used in tubes for heat exchanger production to enable furnace or flame to braze and to give sacrificial corrosion resistance.

Item Catagory Range
1 Fixed Length 200-4000mm
2 Width 8mm-60mm
3 Thickness 1mm-4mm
4 Wall Thickness 0.15mm-0.6mm
5 Thickness of zinc spraying 5g/mm-15g/mm
6 Thickness of solder layer 8g/mm-25g/mm

As one of the leading tubing manufacturers in China, Trumony supplies a variety of aluminum tubes including aluminium radiator tubes, aluminium charge air cooler tubes, condenser tubes, aluminium round tubes,micro channel tubes , drawn tubes, seamless tubes, drawn seamless tubes, composite tubes, and welded tubes

Chemical Composition
No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤ 0.25 ≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 - ≤ 0.05 ≤ 0.05 ≤ 0.03
2 1100 ≤ 0.95(Fe+Si) 0.05-0.20 ≤ 0.05 - - ≤ 0.10 - -
3 1197 ≤ 0.15 ≤ 0.20 0.40-0.55 0.10-0.20 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
4 3102 ≤ 0.40 ≤ 0.70 ≤ 0.10 0.05-0.40 - - ≤ 0.30 - ≤ 0.10
5 3R03 ≤ 0.15 ≤ 0.15 ≤ 0.01 0.90-1.10 ≤ 0.03 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05

Automotive Applications

1 Flat oval aluminium welded tubes for radiators
2 Round aluminium welded tube for condenser headers
3 Rectangular welded tubes for charge air coolers (CAC tube)
4 Thick-walled rectangular aluminium welded tube for oil coolers
5 Internal enhancements as dimples or turbulators to increase the heat transfer
6 Headers/manifolds for mobile A/C condensers and battery coolers
7 Small-diameter welded aluminium tubes for connector lines

Alloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft WeldedAlloy 4343 / 3003 / 7072 Aluminum Radiator Tube High Frequency Aircraft Welded
