Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser
Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser
Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser
Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser
Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser
Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser
Specifications
Brand Name :
Trumony
Model Number :
3003 series
Certification :
CE
Place of Origin :
China
MOQ :
500KG for mass quantity
Supply Ability :
negotiation
Delivery Time :
30days including tooling time
Packaging Details :
Export Standard Packing
Item :
Parallel Flow Aluminium Flat Tube
Grade :
3003/6061
Temper :
O
Application :
Raidator/ condenser/ evaporator/ oil cooler/ intercooler/ water tank
Surface Treatment :
Mill Finished
MOQ :
100kg
Description

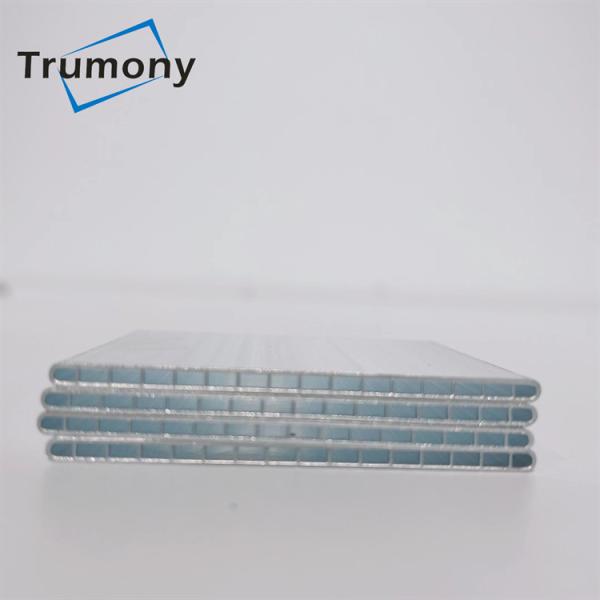

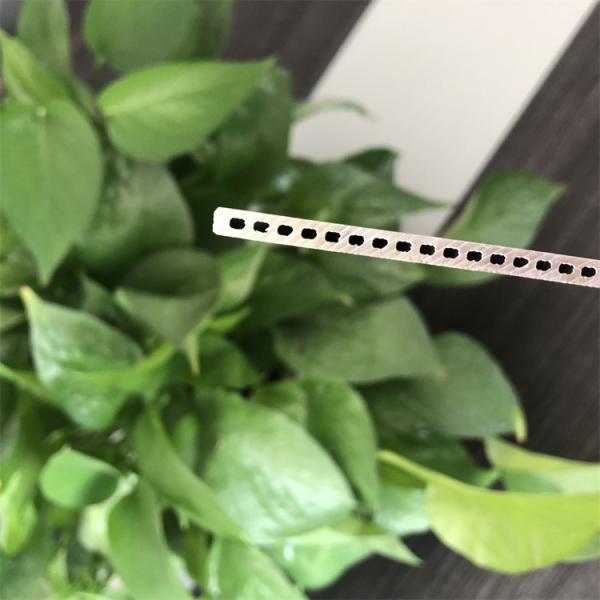

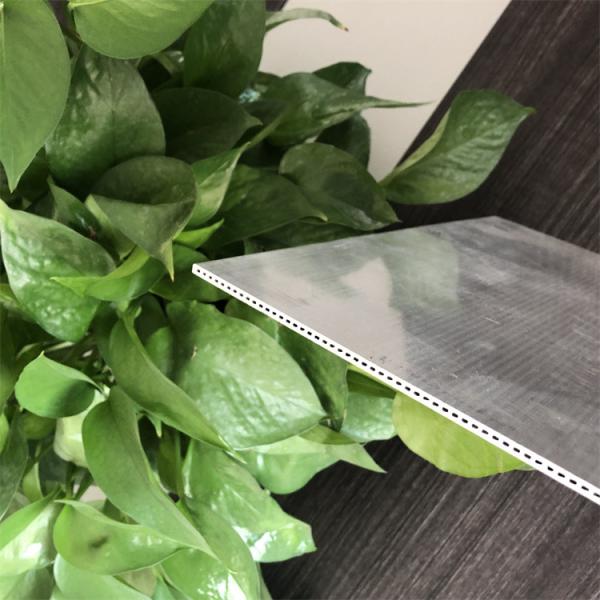

Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser

Aluminum parallel flow micro channel flat tube is widely used in heat exchangers of condensers, evaporators of auto air conditioning systems, and radiators in engine cooling systems. We can customize the aluminum channel cold tube according to customer blueprints, specifications or samples.


Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05

Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%

Characteristics:
1. Low weight
2. Good thermal and electricity conductivity
3. Excellent corrosion resistance
4. High cycle reuse value
5. High surface quality
6. Narrow tolerance range

Application:
Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for Condensers Evaporators Oil coolers Radiators Heater cores .
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.

Customized 3003 Parallel Flow Aluminium Flat Tube For CondenserCustomized 3003 Parallel Flow Aluminium Flat Tube For CondenserCustomized 3003 Parallel Flow Aluminium Flat Tube For Condenser
