Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle
Specifications
Brand Name :
Trumony
Model Number :
TR-T22022
Certification :
TS16949, ISO, RoHS
Place of Origin :
China
MOQ :
Sample trial can be arranged
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000pcs/Every Year
Delivery Time :
4~6wks with mold tooling time
Packaging Details :
Export Standard Packing
Product name :
Aluminum roll bonded plate
Specifications :
Customized
Type of plate :
Single inflated roll bond evaporator / Double side inflated roll bond evaporator
Surface treatment :
sprayed with plastic to prevent oxidation and corrosion
Application :
Refrigerator， ESS， EV
Design service :
Support
Payment term :
30% prepayment, balance before shipment
Packaging :
Exported Standard Packing
HS code :
7607
Key words :
roll bonding plate, roll bonded evaporator
Description

Battery Cooling Solution Aluminum Roll Bonded Evaporator

Aluminum roll bonded evaporators are particularly widely used in household appliances. With the development of the electric vehicle industry, due to the advantages of fast sample production and low development cost, inflatable evaporators also applied for EV and ESS battery.

Item Roll bonded cooling plate
Plate size According to your module
Battery size Prismatic cells, battery pack
Structure 1. Single side inflated roll bond evaporator 2.Double side inflated roll bond evaporator 3. Part single side inflated
Length According to your boundary size
Surface treatment Powder Spray
Spare parts Quick connector, thermal interface material (silicon pad), pump, etc.
Service Cooling tube design service, heat simulation service, flow path suggestion

More battery cooling solutions for you:
1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate


Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.

Detail Products

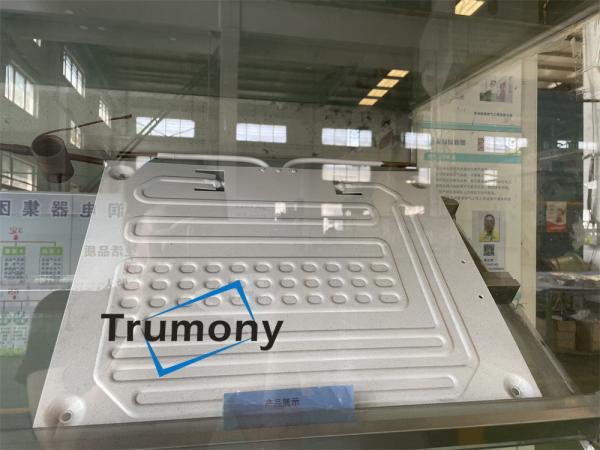

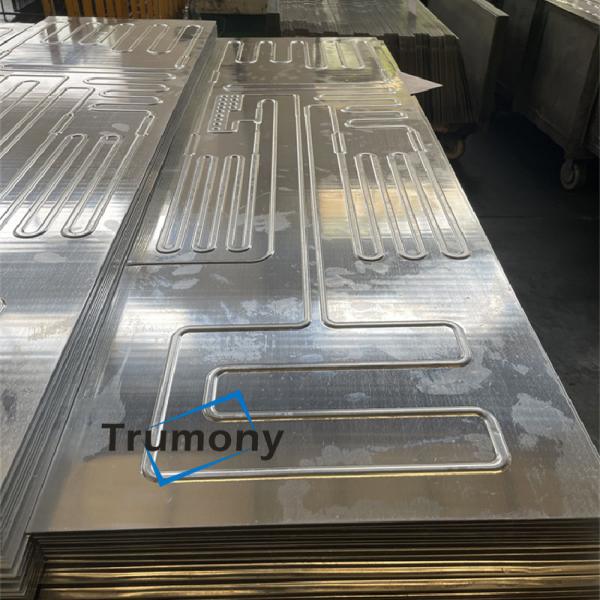

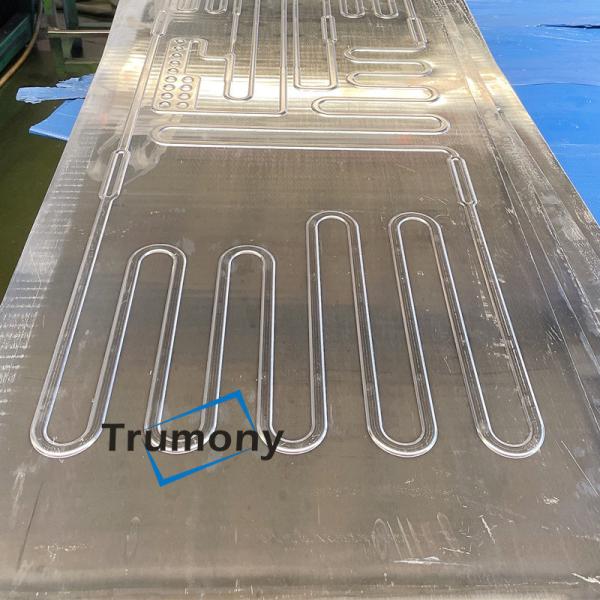

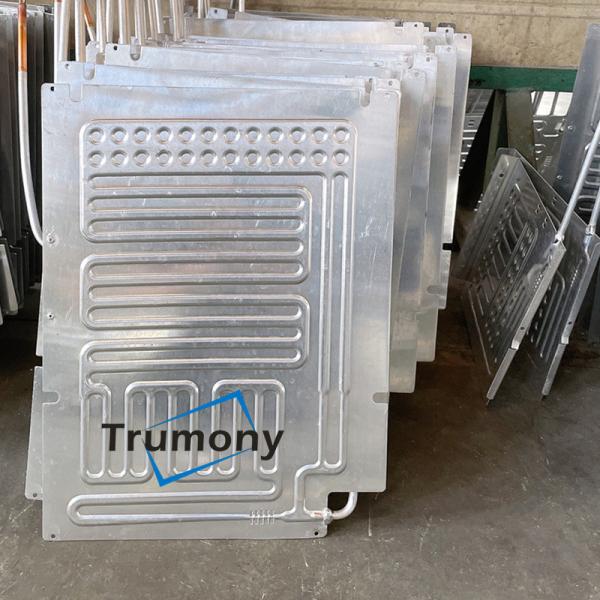

Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric VehicleBattery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle

Battery Cooling Solution Aluminum Roll Bonded Evaporator For Electric Vehicle

Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe) 0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!

Mechanical Properties

Alloy Temper Tensile Strength Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%

FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.


Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
