Specifications
Brand Name :
Trumony
Model Number :
TR-T22030
Certification :
TS16949, ISO, RoHS
Place of Origin :
China
MOQ :
Sample trial can be arranged
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000pcs/Every Year
Delivery Time :
4~6wks with mold tooling time
Packaging Details :
Export Standard Packing
Product name :
CNC Machining Connector
Type of connector :
Round, Square,rectangle or customized
Material :
Aluminum alloy
Series :
6 series, 3 series
Design service :
Yes
Payment term :
30% prepaid in advance, balance before shipment
Packaging :
Exported Standard Package
HS code :
7606XXXX
Key words :
extrusion cooling tube, water cooled plate, liquid cooling tube for EV
Description

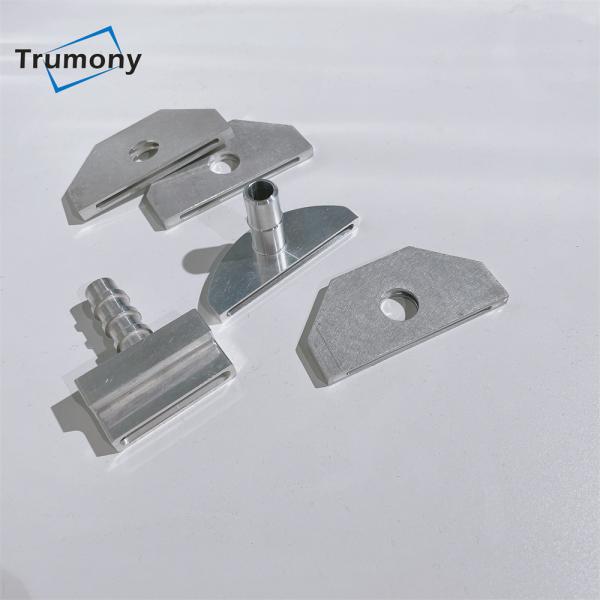

Flexible Fast Connection-peg CNC Machining Connector for Cooling Plate

Connector is indispensable part for cooling plate, which is now applied for EV and ESS battery thermal management.

We have CNC centre, which can produce quick connector, inlet outlet by CNC machine.

Product name CNC Machining Connector for Cooling Tube
Size 16*20mm or 20*20mm or According to your design
Application Cooling plate for EV battery, Cooling tube for ESS
Process CNC machining
Length According to your design
Surface treatment Insulation coated / Powder coating
Spare parts Quick connector, thermal interface material (silicon pad), pump, etc.
Service Cooling tube design service, heat simulation service, flow path suggestion, finalize production feasibility

Full cooling solutions for you:
1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate

4) FSW cooled plate

5) Aluminum cold plate with copper tube


Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.

5) Quick sample make, fast delivery

Detail Products

Flexible Fast Connection-Peg CNC Machining Connector For Cooling Plate

Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe) 0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!

Mechanical Properties

Alloy Temper Tensile Strength Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%

Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can!

Q: Can you assist in design?

A: Yes, we can! We have a strong and experienced design team.

Q: Could you provide sample?

A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide design service!
