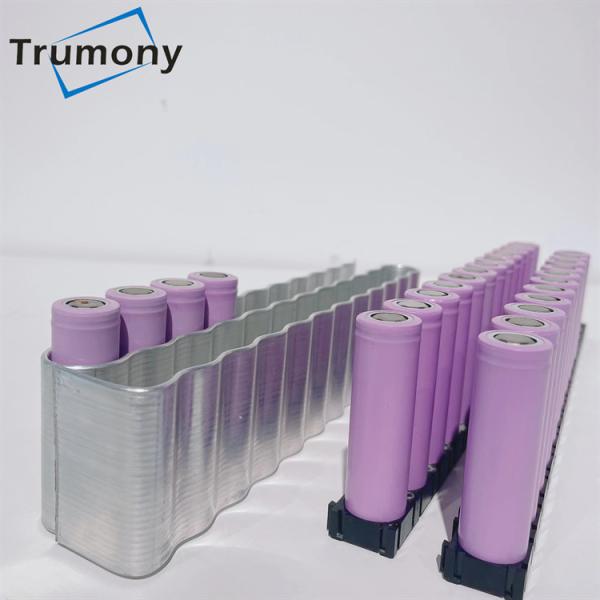

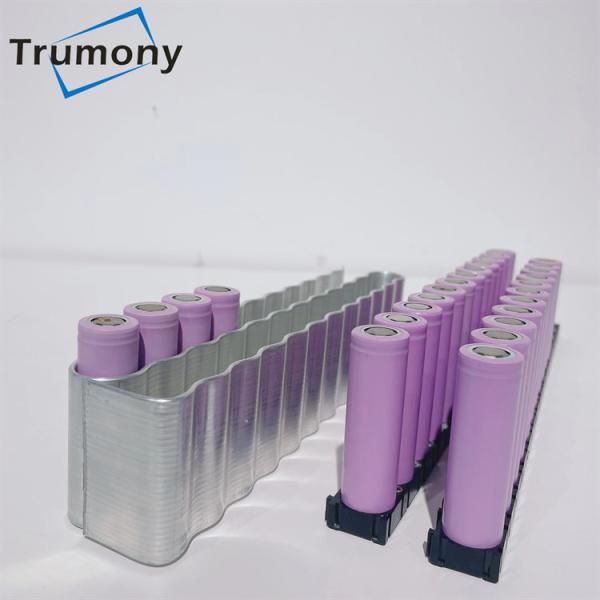

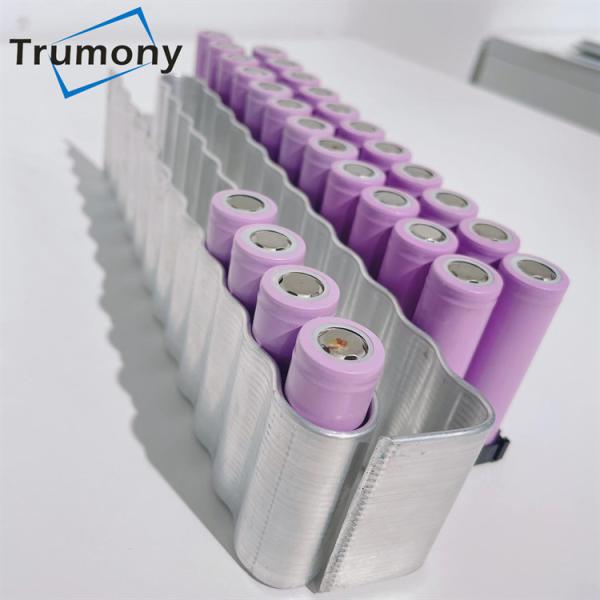

32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle
32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle
32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle
32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle
32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle
32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle
Specifications
Brand Name :
Trumony
Model Number :
TR-CY148
Certification :
ISO9001,ISO14000,IATF14969
Place of Origin :
China
MOQ :
Sample available
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000 tons yearly
Delivery Time :
30days including tooling time
Packaging Details :
Ply-wood box specialized for export
Product name :
32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates for Electric Racing Vehicle
Type :
Cooling ribbon
Process :
Aluminum Extrusion
Alloy :
3003
Temper :
O-H112
Application :
EV Battery Pack
Structure :
Micro channel tube+connector
Package :
cartons+pallets
Description

32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates for Electric Racing Vehicle

Trumony as the one of the earliest manufacturer of heat exchanger in China, provide the optimal cooling solutions for electric vehicle & energy storage system battery pack . We can provide the design package service as your request of the battery type, heat transfer effect and your battery pack boundary size .For the 18650,21700 lithium ion batteries, we have rich experience and successful cases for your reference .

Specification

Item Aluminum cooling tube for cylindrical cells
Size As your design
Thickness 2.4mm,3mm
Application cylindrical battery pack cooling
Service Design, simulation, tooling ,prototype
Process Aluminum extrusion
Liquid cooling type cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate

Battery cooling system

1- Aluminum cooling cold plate for battery pack

2- Serpentine tube for new energy vehicle

3- Aluminum microchannel cooling plate for soft package battery pack

4- Aluminum stamped cold plate

*****Key point of design

1- Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells

2- Module boundary dimensions

3- Heat dissipation requirement

4- Design and prototype budget

5- All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation

With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:

1. Aid in cooling components design feasibility

2. Proven solutions for both prismatic and cylindrical cells

3. Capability in doing DVP with client

4. Fast support in Prototype making

FAQ :


1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.

3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.

32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle32700 Cylindrical Cells Battery Cooling Pack Snake Tube Plates For Electric Racing Vehicle
