Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Automobile Condenser Aluminum Extrusion Tube For Car Radiator
Specifications
Brand Name :
Trumony
Model Number :
TR-T22012
Certification :
CE,ISO,RoHS,UL
Place of Origin :
China
MOQ :
1000kg
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100000ton/Every Year
Delivery Time :
4~6wks with mold tooling time
Packaging Details :
Export Standard Packing
Material :
Aluminum Alloy
Alloy :
6105, 3003, 3102 etc.
Size :
As customer's drawing
Processing :
Extrusion, Welding, Cutting, Coating
Surface treatment :
Mill finished, Zinc Spray , Anodizingetc.
Temper :
HO/H24/H14
Applications :
Evaporator, Air conditioner , Car Radiator, Charge air cooler, Condenser
Keyword :
extruded tubing, multiport tube, auto radiator
CNC cetre :
YES
Payment term :
30% prepayment, balance before shipment
Description

Automobile Condenser Aerospace Spare Parts Aluminum Extrusion Tube for Car Radiator

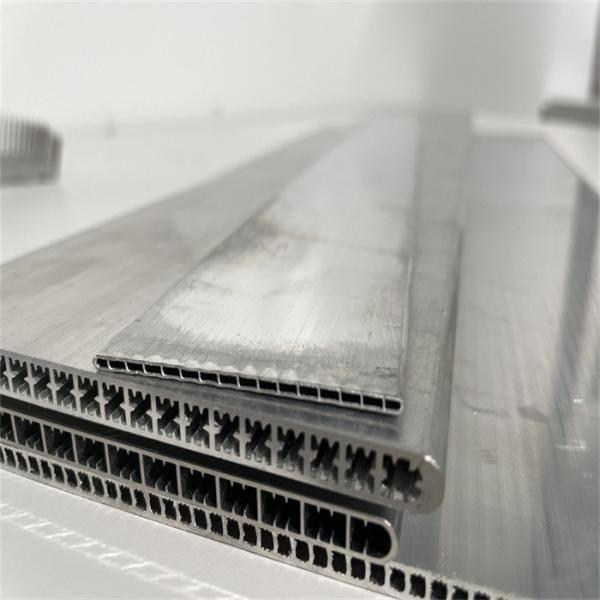

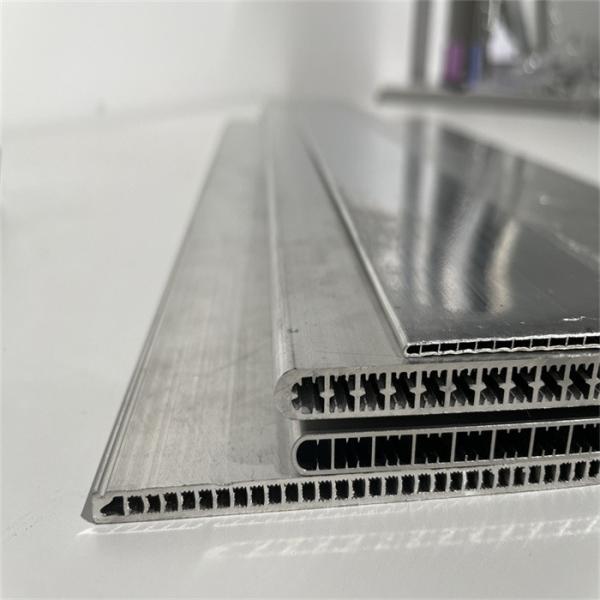

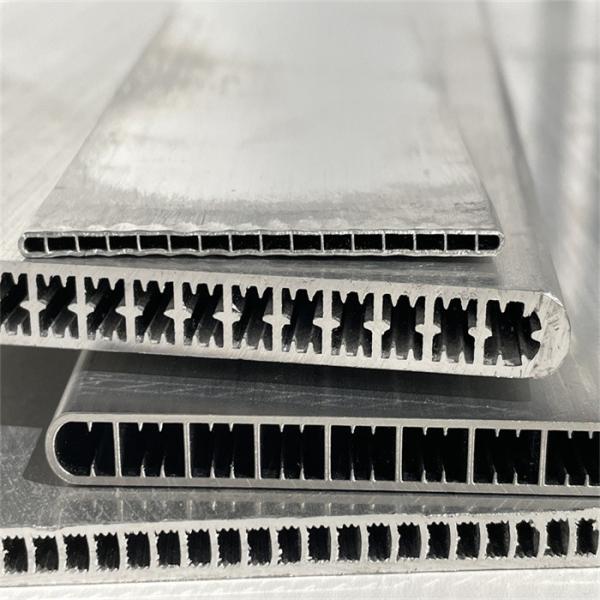

The aluminum extruded tube is made of several channels that increase the heat transfer through a higer surface per volume ratio. It's efficient and good thermal and electric conductivity. It's widely used for cooler assembly with fan motor, heat exchanger for air separation and dryer, intercooler & radiator & oil cooler for auto, oil cooler for hydraulic system, oil /air cooler for compressor.

Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
1100 ≤0.95(Si+Fe) 0.05~0.20 ≤0.05 -- -- ≤0.10 --- ---
3102 ≤0.40 ≤0.70 ≤0.1 0.05~0.4 --- --- ≤0.3 --- ≤0.10

It can be customized according to customers' request!

Mechanical Properties

Alloy Temper Tensile Strength Yeild Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥200MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥200MPa ≥25%

Items Range
Width 8mm~40mm
Thickness 1mm~5mm
Wall thickness 0.15mm~0.8mm
Thickness of zinc spraying 6g/mm²~15g/mm²
Fixed length 200mm~4000mm
Number of pores 3~30

It can be customized according to customers' request!

Applications:

Engine cooling and air conditioner system, such as radiator, condenser, oil cooler and heater, evaporator.

Home appliances electrics industries, such as HAVC heat exchangers, refrigerator, PTC heating unit, air conditioner;

New energy: Liquid cooling plate for EV battery / ESS battery.

Automobile Condenser Aluminum Extrusion Tube For Car RadiatorAutomobile Condenser Aluminum Extrusion Tube For Car RadiatorAutomobile Condenser Aluminum Extrusion Tube For Car Radiator

FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.


Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
