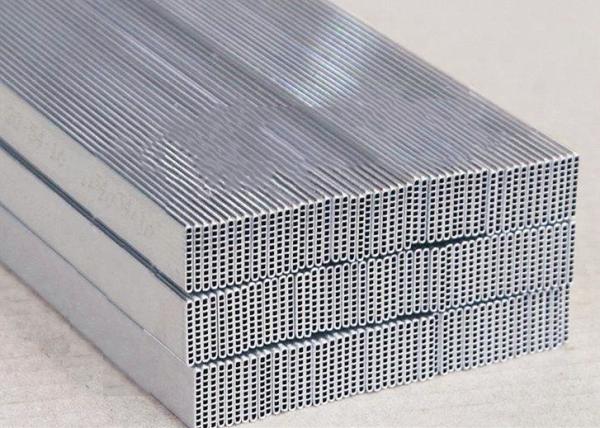

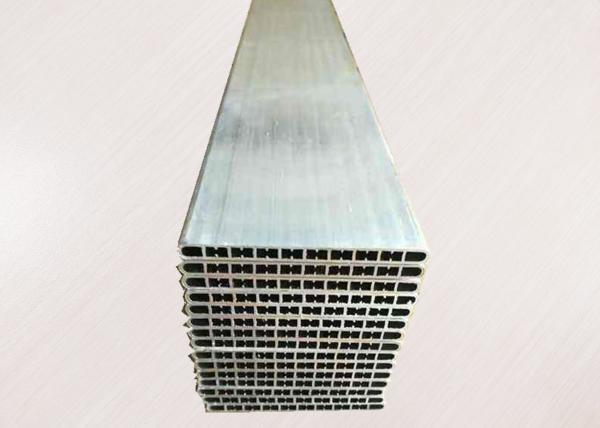

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Specifications
Brand Name :
Trumony
Model Number :
customizable
Certification :
CE/RoHS/GS/ISO9001
Place of Origin :
China
MOQ :
5 tons
Supply Ability :
50, 000 Mt Per Year
Delivery Time :
according to specification and quantity
Packaging Details :
Standard Export Packaging
Color :
Silver
Shape :
Tube
Grade :
1000 or 3000 series
Specification :
according to customers' requests
Alloy states :
1050, 1100, 1197, 3102, 3r03
Surface Treatment :
Mill finish
Temper :
O/F/H111/H112
Description
Micro multi-port tube is applied not only in car air conditioner but also in the field of commercial, household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler.


1. Chemical Composition

No.AlloySiFeCuMnMgCrZnVTi
11050≤ 0.25≤ 0.40≤ 0.05≤ 0.05≤ 0.05-≤ 0.05≤ 0.05≤ 0.03
21100≤ 0.95(Fe+Si)0.05-0.20≤ 0.05--≤ 0.10--
31197≤ 0.15≤ 0.200.40-0.550.10-0.20≤ 0.03≤ 0.05≤ 0.05≤ 0.05≤ 0.05
43102≤ 0.40≤ 0.70≤ 0.100.05-0.40--≤ 0.30-≤ 0.10
53R03≤ 0.15≤ 0.15≤ 0.010.90-1.10≤ 0.03≤ 0.03≤ 0.05≤ 0.05≤ 0.05


2. Mechanical Properties

No.AlloyTemperTensile Strength(Mpa)Yield Strength(Mpa)Elogation(%)
11050O/F/H111/H112≥ 65≥ 20≥ 25
21100O/F/H111/H112≥ 75≥ 20≥ 25
31197O/F/H111/H112≥ 80≥ 25≥ 20
43102O/F/H111/H112≥ 75≥ 20≥ 25
53R03O/F/H111/H112≥ 80≥ 25≥ 20


3. Size Tolerance

WidthThicknessWall ThicknessLengthLateral CurvatureFrontal CurvatureTwsiting Dgree
± 0.05mm± 0.03mm± 0.05mm± 0.03mm≤ L× 0.2%≤ L× 0.25%≤ L× 0.15%


4. Corrosion Resistance
Salt spray test: ≥ 750 hours
5. Zn Coating Standards
6/8/10/13± 2g/square meter
6. Flux Cotaing Standards
10-15± 2g/square meter

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
