Specifications
Brand Name :
Trumony
Model Number :
TR-563
Certification :
CE,ISO,RoHS,UL
Place of Origin :
China
MOQ :
5Ton
Price :
US Dollar+2500+Ton
Payment Terms :
L/C, T/T
Supply Ability :
10000000kg/Year
Delivery Time :
15-45 days
Packaging Details :
Export Worthy Packing
Tpye :
Plate
Material :
Aluminum
Package :
Export Worthy Packing
Alloy :
4343/3003/4343
Temper :
O/H14/H24/H16/H18/H24
name :
Flexible Battery Pack Aluminum Radiator Parts Extrusion Micro Channel Pipe
Cnc machining or not :
CNC Machining
Application :
Excavator,furniture,Auto /medical/agricultural/train/valve/textile,machine and AUTO
Tolerance :
Customized
Size :
Customer's Requst
Description

Our advantage

Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers

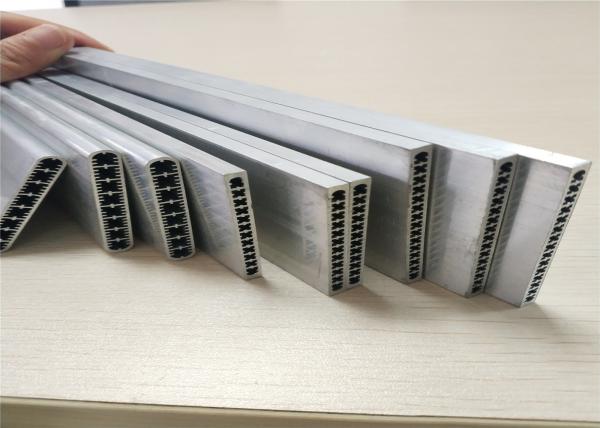

The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
Low energy costs
High performance
Low space and weight
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
Low refrigerant fill

Feature

The luster is luminous

High efficient heat transfer, good temperature control

Non-toxic, odorless, impermeable

Compact structure light and economical

Withstand high heat and extreme cold

Minimize cleanup and ensure food fresh

Environment friendly, recoverable and recyclable

High reliability and exchanging heat low noise

FAQ

Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;

after confirmation, 25-30 days for mass production.

Q:OEM/ODM available?

A:Yes,we can!

Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team.

Q:Could you provide sample?

A:Yes, We are honored to offer you samples for quality check.

Q:Is sample order accepted?

A:Yes,we accept sample order and we can provide design service!

Mechanical property
Alloy Code Temper Tensile Strength
Rm(Mpa)
Yield Strength
(Mpa)
Elongation(%)
TR-010,TR-020,TR-030,TR-040,
TR-050,TR-110,TR-310,TR-116,
TR-316,TR-111,TR-313,TR-121,
TR-131,TR-141,TR-150,TR-151,
TR-156Etc.
O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 —— ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

Mechanical Properties
No Alloy Temper Tensile
strength
Yield
strength
Elongation
1 1050 O/F/H111/H112 ≥ 65 ≥ 20 ≥ 25
2 1100 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
3 1197 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
4 3102 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
5 3R03 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20

CHEMICAL COMPOSITION (%)
Item Si Fe Cu Mn Mg Zn Cr Ti The rest Al
Single In total
Demand (%) Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Allowance
/ 0.4 / 0.7 / 0.1 0.05 0.4 / / / 0.3 / / / 0.1 / / / /
Test result 0.079 0.244 0.001 0.392 0.001 0.008 0.0005 0.009 / / Allowance

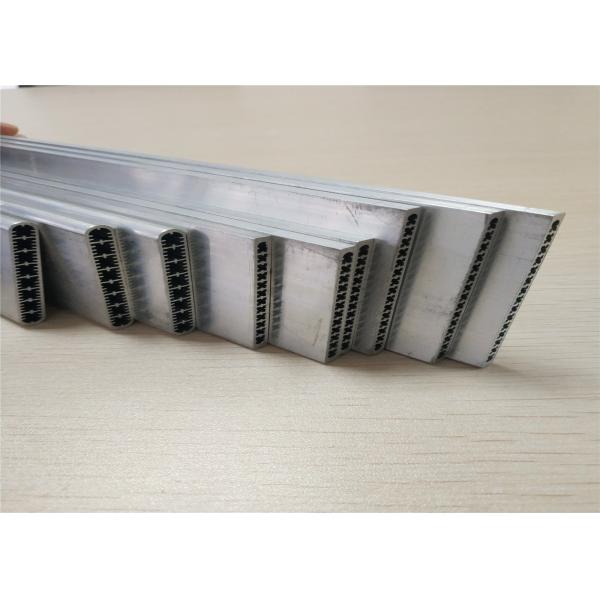

Auto Air Conditioner Aluminum Car Parts Extruded Channel Multi - Port Tube
