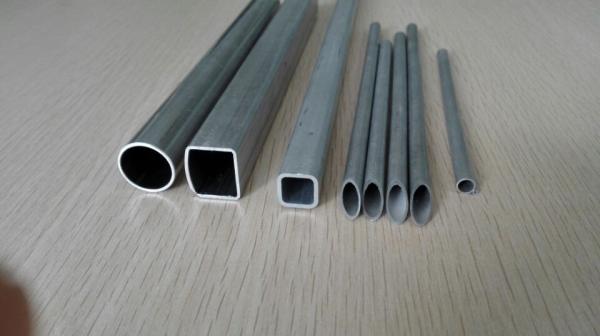

Round / Oval Extruded Aluminum Tube For Heat Changer & Automotive Air Conditioner
Round / Oval Extruded Aluminum Tube For Heat Changer & Automotive Air Conditioner
Round / Oval Extruded Aluminum Tube For Heat Changer & Automotive Air Conditioner
Round / Oval Extruded Aluminum Tube For Heat Changer & Automotive Air Conditioner
Round / Oval Extruded Aluminum Tube For Heat Changer & Automotive Air Conditioner
Round / Oval Extruded Aluminum Tube For Heat Changer & Automotive Air Conditioner
Specifications
Brand Name :
Trumony Aluminum Limited
Model Number :
3003
Certification :
ISO9001, ASTM, JIS, GB, EN, ASTMB
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200,000 MT Per Year
Delivery Time :
30 workdays after confirming
Packaging Details :
Standard Export Packaging
Shape :
Round / Oval
Treatment :
Welding
Materail :
Aluminum Alloy
Temper :
O ~ H112
O.D :
According to Request
Thickness :
According to Request
Color :
Alloy
HS Code :
According to Request
Description

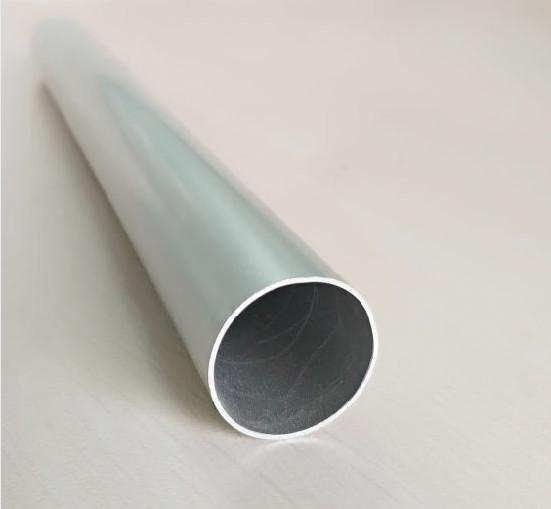

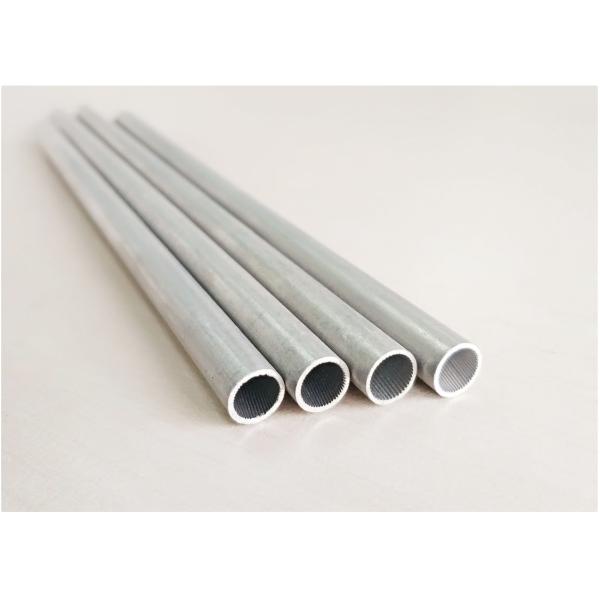

Product name: Welded smooth aluminum round tubes for manufacturing of Automotive air-conditioning elements.

Material:
Core Alloy 3003,3103
Clad Alloy: 4045/4343

Regular sizes:

Tube size(OD*wall thickness)
20x1.16mm
20x1.3mm
20x1.5mm
20x2.05mm
22x1.3mm
23x1.5mm
25x1.3mm
25x1.5mm

Mechanical property
Alloy Code Temper Tensile Strength Rm(Mpa) Yield Strength(Mpa) Elongation(%)
TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 -- ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8
OD OD Tolerance ID Tolerance Roundness straightness Circular run-out
φ16-20 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
φ20-30 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
φ30-50 ±0.05 ±0.05 0.02↓ 0.020↓ 0.08↓
φ50-80 ±0.15 ±0.10 0.05↓ 0.025↓ 0.10↓
Our advantage
Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers;.
Applications
In the kitchen - the largest domestic use
Roasting poultry and meat - shrinkage
Cooking delicate fish and vegetables 'en papillae'
Lidding storage pots (not in with steel cans)
Protecting parts of poultry *microwave 'burn'
Making small storage containers the refrigerator
Wrapping for the freezer
Sealing saucepans to retain steam
Baking 'jacket' potatoes
Lining cake tins, 'lift-out' strips
Wrapping sandwiches and snacks
Keeping food and 'left-over' refrigerator - cakes, meat,
Saving cleaning - lining a grill lining the oven floor
5. Features
1. The luster is luminous,
2. Non-toxic, odorless, impermeable,
3. Withstand high heat and extreme cold,
4. Minimize cleanup and ensure food fresh.
5. Environment friendly, recoverable and recyclable

Other sizes not mentioned in the above table could also be produced as per customer requirement.

Application field:
Air condition,
refrigeration and cooling system;
Automotive air condition;
Solar application

High precision welded smooth aluminum round tubes has the following advantages:

Low material cost
High heat transfer rate
Reliable brass solder
Light weight
Strong anti-corrosion
High precision
High surface finish


Package: coils or Straight with fixed lengthRound / Oval Extruded Aluminum Tube For Heat Changer & Automotive Air Conditioner
