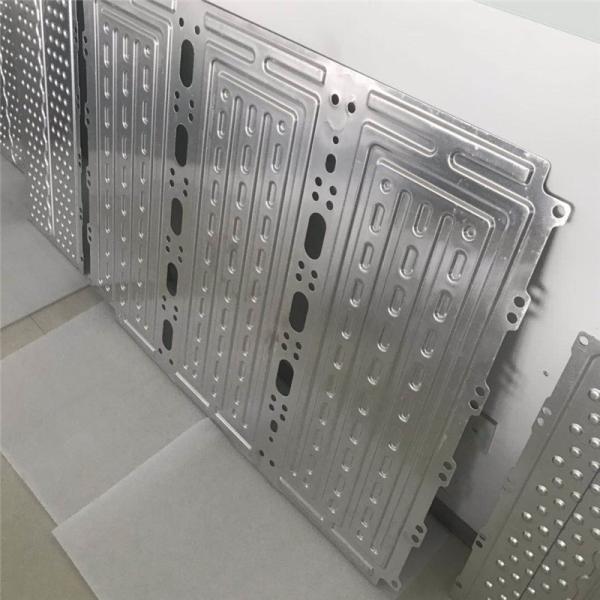

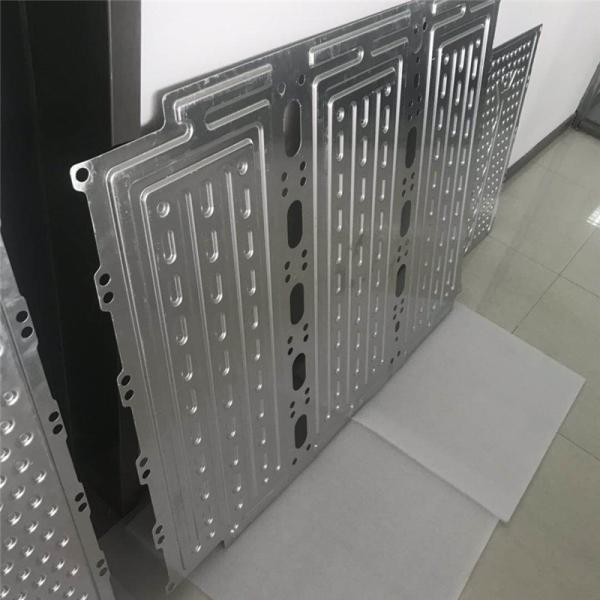

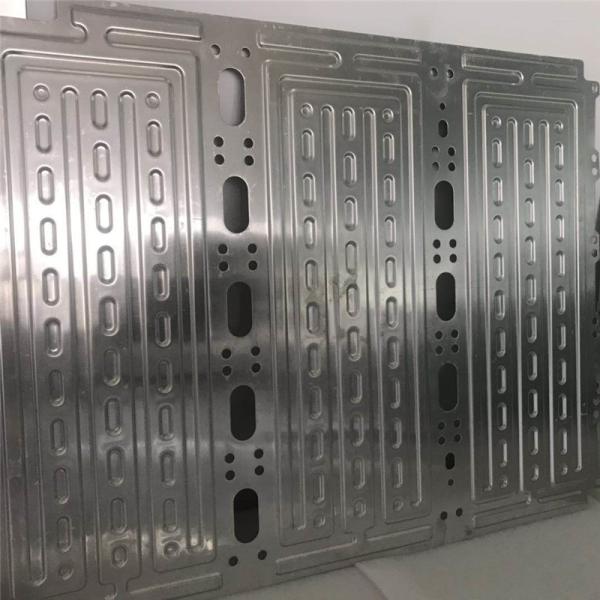

6mm Thickness 3003 Brazing Aluminum Cooling Plate
6mm Thickness 3003 Brazing Aluminum Cooling Plate
6mm Thickness 3003 Brazing Aluminum Cooling Plate
6mm Thickness 3003 Brazing Aluminum Cooling Plate
6mm Thickness 3003 Brazing Aluminum Cooling Plate
6mm Thickness 3003 Brazing Aluminum Cooling Plate
Specifications
Brand Name :
Trumony
Model Number :
TR-J011
Certification :
TS16949 , ISO14001
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
600,000 mt per year
Delivery Time :
15-30 working days after received your advance payment
Packaging Details :
Standard export packaging like carton/ wooden box
Colour :
Silver
Surface coating :
Mill finish or Anodize
Application :
Water cooling, vehicle battery cooling
Thickness :
1-6mm
Length :
Customized
Technology :
Extrusion or brazed
Width :
Customized
Description

3003 Brazing New design aluminum ev cooling plate for battery cold design develop


1. Description of our production

Production Process:Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (like automatic heating/ insulation/ cooling/ welding etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying) etc, which total more than 20 procedures


1) Cladding Material of aluminum alloy

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6


Core Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 － 0.2 － 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 － 0.5-1.5 － 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 － 0.2 － 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 － 0.5-1.5 － 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 － 0.2 5


2) Main mechanical of aluminum for welding heat exchanger system

Alloy Code temper Tensile Strength
Rm(MPa)		 Yield Strength Rp0.2(Mpa) Extend Ratio
A50(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.plate material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.plate
material		 H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8


2.Our advantage of 3003 Brazing New design aluminum ev cooling plate for battery cold:
1. From 2006, we have rich experience in this aluminum heat exchange area in China;
2. Good reputation in aluminum industry;
3. We have design teams to achieve your design idea and can give you some suggestion
4. Good price for bulk order.
5. Good experience cooperation with big clients in the world;
6. With Certificate like ISO9001-2008;
7. Sample order can accept.
8. High performance cost ratio;
9. Fast delivery time and resolve problem attitude.


3.Terms and conditions:
1, Trade terms: CIF / CFR / FOB/ EXW
2, Payment : TT 30% before production+70% before shipment or against copy of BL;
or 100% Irrevocable L/C at sight etc.
3, Production time: Normally it is about 10-30 days.

6mm Thickness 3003 Brazing Aluminum Cooling Plate

6mm Thickness 3003 Brazing Aluminum Cooling Plate

6mm Thickness 3003 Brazing Aluminum Cooling Plate
