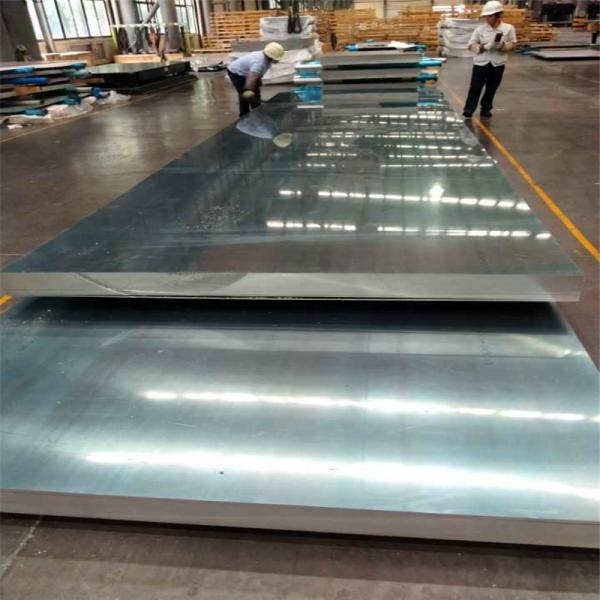

Cold Rolled 7020 7N01 7075 7050 Aluminum Alloy Plate
Cold Rolled 7020 7N01 7075 7050 Aluminum Alloy Plate
Cold Rolled 7020 7N01 7075 7050 Aluminum Alloy Plate
Cold Rolled 7020 7N01 7075 7050 Aluminum Alloy Plate
Specifications
Brand Name :
Trumony
Model Number :
7075
Place of Origin :
China
MOQ :
5 tons
Price :
Negotiable
Supply Ability :
100000 ton/year
Delivery Time :
30days
Packaging Details :
Fumigated wooden pallet specialized for export
Synonym :
Aerospace Aluminum Alloy Plate
Alloy :
7020/7N01/7075/7050
Temper :
O/T4/T6
Application :
Aircraft/Aerospace/Railway transportation/Automotive /Marine
Certificate :
Aviation/NADCAP Certified
Thickness :
0.2-3.5mm
Width :
1200-2650mm
Length :
2000-12000mm
Advantage :
low density, moderate strength, easy processing and forming
Packing :
Fumigated pallet specialized for export
Description

7xxx Cold-rolled Aerospace Aluminum Alloy Plate


There is very high and strict requirement for the aluminum materials used for aircraft ,it must be very good strength, toughness, purity requirements,and has very long material service life and re-living capacity.


The 7xxx series aluminum alloy plate we are supplying are including 7020/7N01/7075/7050,which are widely used for aero& aviation,railway transportation, automotive ,marine and offshore engineering,energy sources,tool and mould etc.

Specification of 7xxx aluminum alloy plate:

Alloy: 7020/7N01/7075/7050
Temper: O/T4/T6
Thickness: 0.20-3.5mm or as per customers' requirement
Width: 1200-2650mm or as per customers' requirement
Length: 2000-12000mm or as per customers' requirement

We are supplying the extra thick,extra wide and extra long aluminum alloy plate.


Other sizes is available according to customer's request.Besides aluminum alloy plate,we are also supplying the aluminum coil as per customers' requirement.


Application:

7xxx 7050 Radar structural parts ,manufacturing structure of aircraft, other high stress structural elements which demand high strength and strong corrosion resistance etc.
7075 Aviation, aerospace, moulding, mechnical equipment, tooling and fixture etc.
7N01 Bed plate of high speed train and coal transportation vehicle etc.
7021 Unit load device of aviation,components for aerospace and aviation


Typical Chemical composition:

ALLOY NO. Si Fe Cu Mn Mg Cr Zn Ti Al
7075 0.4 0.5 1.0-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 Rem
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 5.7-6.7 0.06 Rem







Terms and conditions:

Trade term:CIF / CFR / FOB
Payment term:30% before production+70% before shipment;or 100% Irrevocable L/C at sight;Or we can further cummunicate with each other about this part.
Shipment:Normally it is about 30-35days
MOQ:5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
Quantity tolerance:+/-10% of total quantity as confirmed PI.
