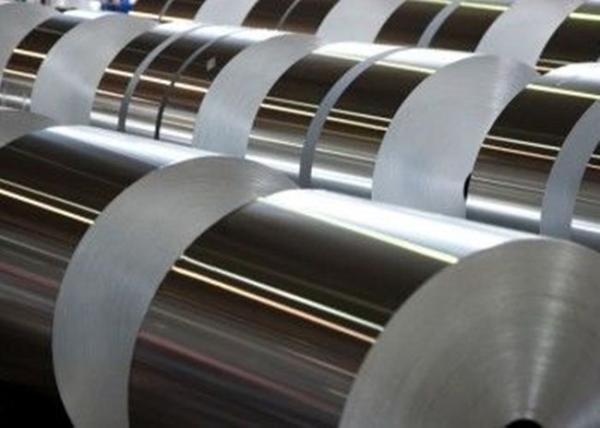

Heavy Duty 0.08 x 345mm 1100 H18 Aluminium Foil Roll I.D. 75mm Custom Size High Tensile Strength
Heavy Duty 0.08 x 345mm 1100 H18 Aluminium Foil Roll I.D. 75mm Custom Size High Tensile Strength
Heavy Duty 0.08 x 345mm 1100 H18 Aluminium Foil Roll I.D. 75mm Custom Size High Tensile Strength
Heavy Duty 0.08 x 345mm 1100 H18 Aluminium Foil Roll I.D. 75mm Custom Size High Tensile Strength
Specifications
Brand Name :
Trumony
Model Number :
TR-FS004
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
5 metric tons
Price :
negotiation
Payment Terms :
T/T or LC
Supply Ability :
50,000 mt per year
Delivery Time :
30 working days after received your down payment
Packaging Details :
Standard export packaging
Alloy :
1100
Temper :
H18
Thickness :
0.08mm
Width :
345mm
I.D. :
75mm
O.D. :
750-850mm
Rm(MPa) :
100-135
A50(%) :
16 min
Cup Drawing Value(mm) :
5.5 min
Other requirements :
According to customers' requests
Description

0.08 x 345mm 1100 H18 Customer-made Aluminum Fin Stock for Auto Air Conditioner

1. Description of our production

Our chemical composition:

Alloy

 Si Fe Cu Mn Mg Zn Cr Ti code
8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 0.1 0.05 0.08 1
1100 0.95 0.05-0.2 0.05 － -- － － 2
1200 1.00 0.05 0.05 － － － 0.05 3

Our mechanical property:

Temper

Tensile Strength

Rm(MPa)

 Erichsen(mm) Elongation(%)
O 80-110 6.0 20
H22 100-135 5.5 16
H24 115-145 5.0 12
H26 125-160 4.0 8
H18 160 - 1

Produce capability:

Product Width(mm) Thickness(mm) O.D.(mm) Inside Diameters(mm)
Fin stock 60-1440 0.08-0.2 400-1400 75,150,200,300,400

2. Our advantage

1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in Aluminum and Copper Areas;

3. We start our productions from aluminum ingot,so we can control the quality as well;

4. We have our own development department for new material research;

5. Good experience and cooperation with big client in the world;

6. With Certificate ISO9001-2008;

7. High performance cost ratio;

8. Fast delivery time;

9. Good communication skills, and good service and understandings for customers;.

3. Application:

1. Household air conditioner

2. Refrigerator

3. Auto AC

4. Auto water tank

4. Features:


Our fin foil is Halogen-free; so healthy environment for welder, it can be use for high temperature;
Besides, it can be used for different products & different Application like for weld backing; heat exchanger; air cooler material; air cooling fin; Air conditioning; Ducting; oil cooler; engineering machinery; Sealing & for Insulation purpose; etc;
