Extra Long Aluminium Alloy Sheet Flat Aluminum Plate 0.15-600mm Thickness
Extra Long Aluminium Alloy Sheet Flat Aluminum Plate 0.15-600mm Thickness
Extra Long Aluminium Alloy Sheet Flat Aluminum Plate 0.15-600mm Thickness
Extra Long Aluminium Alloy Sheet Flat Aluminum Plate 0.15-600mm Thickness
Specifications
Brand Name :
Trumony
Model Number :
5182
Place of Origin :
China
MOQ :
5 tons
Delivery Time :
30days
Packaging Details :
wooden pallet
Synonym :
Aluminum Alloy Sheet
Alloy :
5182
Temper :
H111
Thickness :
0.15-600mm
Width :
20-2650mm
Length :
500-16000mm
Description

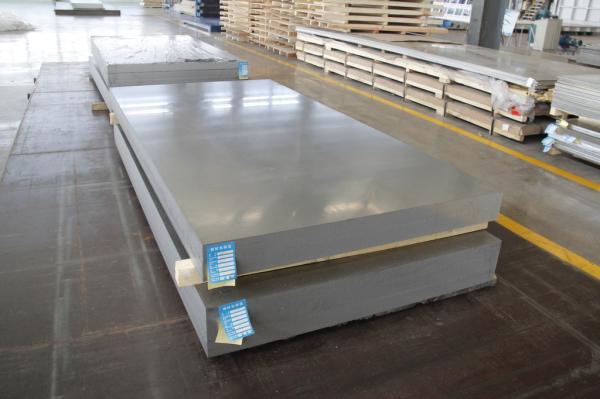

Extra Long Aluminum Alloy Sheet , Flat Aluminum Plate 0.15-600mm Thickness

Product name:5182 H111 Aluminum Alloy Sheet

Description of the product:

5182 H111 Aluminum Alloy Sheet is one of our best selling products,5182 is the al-mg-si alloy, which has a wide range of usage,because 5182 alloy has good corrosion resistance, excellent weldability, good cold processing, and has a moderate strength, therefore,5182 alloy is widely used in the automotive lightweight aluminum applications.

Chemical composition:

ALLOY NO. Si Fe Cu Mn Mg Cr Zn Ti OTHER AL
1050 0.25 0.4 0.05 0.05 0.05 0.05 0.03 0.03 ≥99.5
1060 0.25 0.35 0,05 0.03 0.03 0.05 0.03 0.03 ≥99.6
1070 0.2 0.25 0.04 0.03 0.03 0.04 0.03 0.02 ≥99.7
1100 0.95(Si+Fe) 0.05-0.20 0.05 0.1 0.05 ≥99
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 Remainder
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 0.25 0.05 Remainder
3005 0.6 0.7 0.3 1.0-1.5 0.2-0.6 0.1 0.25 0.1 0.05 Remainder
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 0.25 0.1 0.05 Remainder
4047 11.0-13.0 0.8 0.3 0.15 0.1 0.2 Remainder
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 Remainder
5252 0.08 0.1 0.1 0.1 2.2-2.8 0.05 Remainder
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 0.2 0.15 Remainder
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 0.25 0.15 Remainder
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1
6061 0.4-0,8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 Remainder
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 Remainder
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 0.2 0.15 Remainder
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 Remainder

Technical parameter

Typical alloy: 5182
Temper:

H111,H112,H114,H116,H321

O,H12,H14
Thickness(mm): 0.15-600mm
Width(mm): 20-2650mm
Length(mm): 500-16000mm
Application: The outer plate, deck, refrigeration device, tanker, oxygen Generator tower body of the ship's side ship Bottom

Mechanical Property:

Tensile strength: 280-360 MPa

Yield strength: 125-195MPa

Elongation: 23% min

Extra Long Aluminium Alloy Sheet Flat Aluminum Plate 0.15-600mm Thickness
