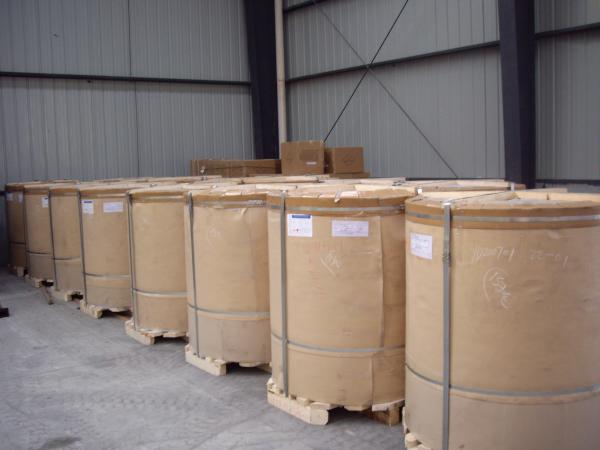

4343 / 3003 + 0.5% Cu Aluminum Heat Transfer Plates In Coil For Condenser
4343 / 3003 + 0.5% Cu Aluminum Heat Transfer Plates In Coil For Condenser
4343 / 3003 + 0.5% Cu Aluminum Heat Transfer Plates In Coil For Condenser
4343 / 3003 + 0.5% Cu Aluminum Heat Transfer Plates In Coil For Condenser
Specifications
Brand Name :
Trumony
Model Number :
TR- 4343/3003+0.5%Cu/7072
Certification :
ISO1901-2008
Place of Origin :
China
MOQ :
5 Tons
Price :
Negociable
Payment Terms :
L/C, T/T
Supply Ability :
800,000 per a year
Delivery Time :
30 working days
Packaging Details :
Standard Export Packaging
Alloy :
4343/3003+0.5%Cu/7072
Clad Layer :
4343,7072
Type :
Brazing
Application :
Radiator
Description
  • Experienced R&D team , we have our own R&D center which provides our related departments with newest & updated technique. We are also willing to offer our customers help to meet the change of HVAC and engine cooling industry.

  • We are dedicated to offer heat transfer market with world-class quality products and technical support for all manufacturers of heating exchanger and heater in the world.

  • We insist on the market-oriented and customer-centric principle and pursue the benign interaction, faith cooperation and win-win policy with customers and suppliers, so as to realize the development and growth of our company.
  • Specification
Products name Alloy Thickness Width Temper Cladding Rate Applicate
2 Aluminum Heat Transfer coiled plate 4343/3003+0.5%Cu/7072 1.6mm 250mm HO 10% Radiator

Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code temper

Tensile Strength

Rm(MPa)

 Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.
