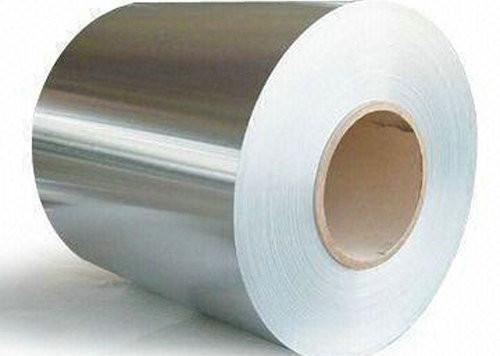

Corrosion Resistance Aluminum Sheet Metal Rolls With 4 Layer Clad Brazing Material
Corrosion Resistance Aluminum Sheet Metal Rolls With 4 Layer Clad Brazing Material
Corrosion Resistance Aluminum Sheet Metal Rolls With 4 Layer Clad Brazing Material
Corrosion Resistance Aluminum Sheet Metal Rolls With 4 Layer Clad Brazing Material
Specifications
Brand Name :
Trumony
Model Number :
TR-4343/3003/7072/4343
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
5 Tons
Price :
Negociable
Payment Terms :
L/C, T/T
Supply Ability :
800,000 per a year
Delivery Time :
30 working days
Packaging Details :
Standard Export Packaging
Alloy :
4343/3003/7072/4343
Clad Layer :
4343 , 7072 , 4343
Type :
Brazing
Application :
Evaporator
Size :
0.4mm
Temper :
HO
Cladding Ratio :
4 - 8% For Each Side
Description

Corrosion Resistance Plate Materials With 4 Layer Clad Aluminum Heat Transfer Plates For Evaporator

Core Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 -

Cladding Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8 - 8.2 0.8 0.25 0.1 - 0.20 － 0.05 -
7072 0.3 0.4 0.1 0.1 0.1 0.8-1.3 - 0.-

Strength Of Plate Materials

Pre-Braze Strenght ( Mpa) Post - Braze Strength ( Mpa )

Alloy

 Temper Yield Strength Tensile Strength Temsile Strength Yield Strength

4343/3003/7072/4343

 HO > / = 35 93 -135 110 40
