Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger
Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger
Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger
Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger
Specifications
Brand Name :
Trumony
Model Number :
TR-4343/3003+1%Zn/4343
Certification :
TS16949-2008
Place of Origin :
China
MOQ :
5 Tons
Price :
Negociable
Payment Terms :
L/C, T/T
Supply Ability :
800,000 Per Year
Delivery Time :
30 Working days
Packaging Details :
Strong Wooden Pallets
Alloy :
4343/3003+1%Zn/4343
Feature :
Cladding, Brazing
Thickness :
As Customer Request
Description

Application:

Products are widely delivered in the form of strip or sheet for manufacturing radiator, condensers, evaporators,heter, charge air coolers/intercoolers,engine oil coolers/transmission oil coolers. air cooled condensers,airfin heat exchangers etc.

Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger

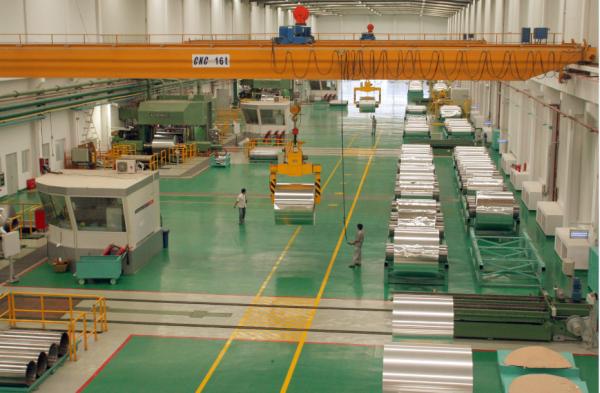

Description of our production

Chemical composition of core material,cladding material about aluminum alloy and composite-material for welding heat exchanger

Core Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5

3005

 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6

Cladding Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 － 0.2 － 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 － 0.5-1.5 － 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 － 0.2 － 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 － 0.5-1.5 － 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 － 0.2 5
7072 0.7 0.1 0.1 0.1 0.8-1.3 － － 6
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 － 0.03 7

Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code temper

Tensile Strength

Rm(MPa)

 Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
