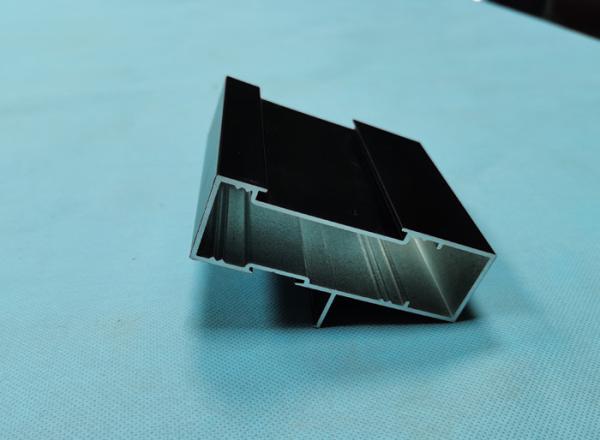

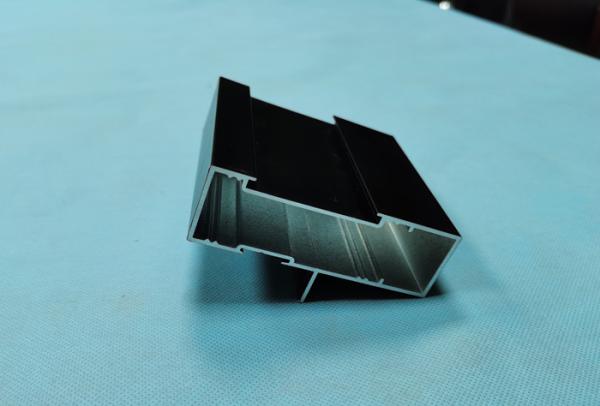

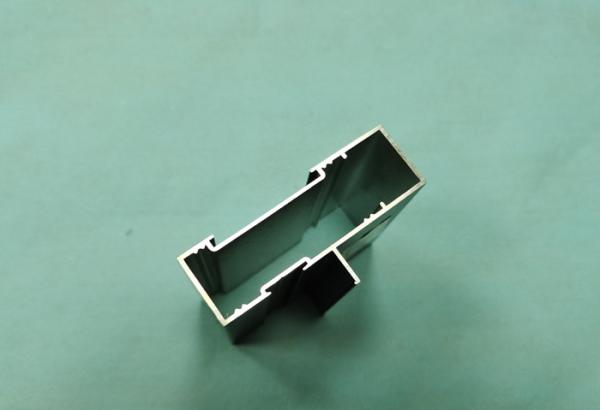

K44 95MM 6063 T5 Patio Door Profiles
K44 95MM 6063 T5 Patio Door Profiles
K44 95MM 6063 T5 Patio Door Profiles
K44 95MM 6063 T5 Patio Door Profiles
K44 95MM 6063 T5 Patio Door Profiles
K44 95MM 6063 T5 Patio Door Profiles
Specifications
Brand Name :
DeYuan metal
Model Number :
AF3213
Certification :
ISO9001:2004, SGS
Place of Origin :
China
MOQ :
500kgs
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
20 days
Packaging Details :
protection tape on surface and then pack in small package with hotshrink plastic bag
Supply Ability :
3000tons per month
Alloy and Tmper :
6063T5
Color :
Bronze/White/Charcoal/Black, Natural
Length :
6.5 and 7.2 meters
width :
95 mm
profile thickness :
1.0~1.6mm
End use :
aluminum window and door
Description

6063 T5 Aluminium Sliding Door profiles K44 95MM REC BACK powder coating black in South Africa Market

Description:

Material 6063T5 T6
Surface Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting
Color Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating
MOQ 1ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
Length

For Anodizing and Electrophoresis: Maximum 6.8 Meters

For Powder Coating : Maximum 12 Meters
Packing 1) EPE, waterproof paper wrapped in small bundles.
2) paper interleave each piece and packing in wooden box and finally on Steel Rack to pull into container
Sample delivery Two weeks (one week for mould +one week making sample)
Sample design It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.
Maximum extruder machine 3500 tons; Minimum extruder machine: 500 tons

Technical requirements



1) Standard: GB/ 5237.1-2008
2) Certification: ISO9001:2004, SGS
3) Material: 6063,6060,6463

Temper: T4, T5, T6,T66

4) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

5) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.

6)MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

7)FOB Port: Shenzhen Port

Primary Technical Data

1) Chemical composition

Alloy Si Mg Fe Cu Mn Zn Cr Ti
6063 0.2~0.6 0.45~0.90 <0.35 <0.10 <0.10 <0.10 <0.10 <0.10
6060 0.3~0.6 0.35~0.60 0.1~0.3 ~ <0.10 <0.15 <0.05 ~
6463 0.2~0.6 0.45~0.90 <0.15 <0.20 <0.05 <0.05 ~ ~
6005 0.6~0.9 0.40~0.60 <0.35 <0.10 <0.10 <0.10 <0.10 <0.10
6061 0.4~0.8 0.80~1.2 <0.70 0.15~0.4 <0.15 <0.25 0.04~0.35 <0.15
6082 0.7~1.3 0.60~1.2 <0.50 <0.1 0.4~1.0 <0.20 <0.25 <0.10
6351 0.7~1.3 0.40~0.8 <0.50 <0.1 0.4~0.8 <0.20 ~ <0.10

2) Mechanical property

Alloy Temper Tensile strength Yield strength Elongation

6063

 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T5 ≥ 265Mpa ≥ 245Mpa ≥ 8%
