Metal Casting Mould for Cylinder Head Gravity Casting Sand Cores Precision CNC Tooling

We engineer high-performance metal casting moulds specifically for producing defect-free sand cores used in aluminum/iron cylinder head gravity casting. These CNC-machined core boxes (H13 tool steel, HRC 48-52) feature FEA-optimized cavities that replicate complex coolant channels, oil galleries, and combustion chambers with micron-level accuracy – ensuring leak-proof engine castings for automotive, marine, and power generation industries.

Key Features & Advantages:

• Zero-Porosity Guarantee: Laser-calibrated venting systems eliminate gas entrapment in thin walls (down to 3mm).

• Extended Tool Life: Tungsten carbide inserts in high-erosion zones sustain 200,000+ cycles.

• Thermal Stability: Conformal cooling channels maintain ±8°C uniformity during resin curing.

• Rapid Changeover: Modular inserts switch between V6/V8/I4 architectures in <15 mins.

• Automation Ready: Integrated KUKA/FANUC interfaces enable robotic core handling.

Specification:

Manufacture Process:

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Applications:

• Turbocharged gasoline/diesel cylinder heads

• Hydrogen/NH₃ combustion engine development

• Marine propulsion cylinder blocks

• Hybrid EV range-extender units

• Stationary generator heads

Company profile:

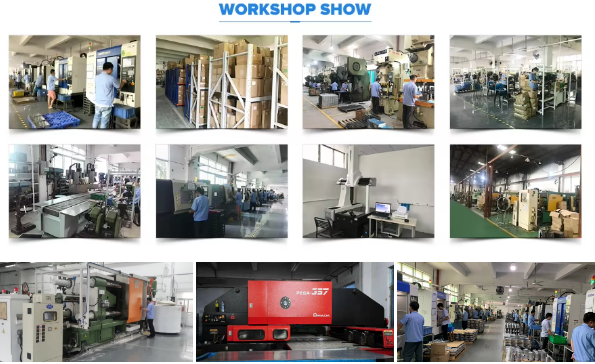

Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.

Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.
