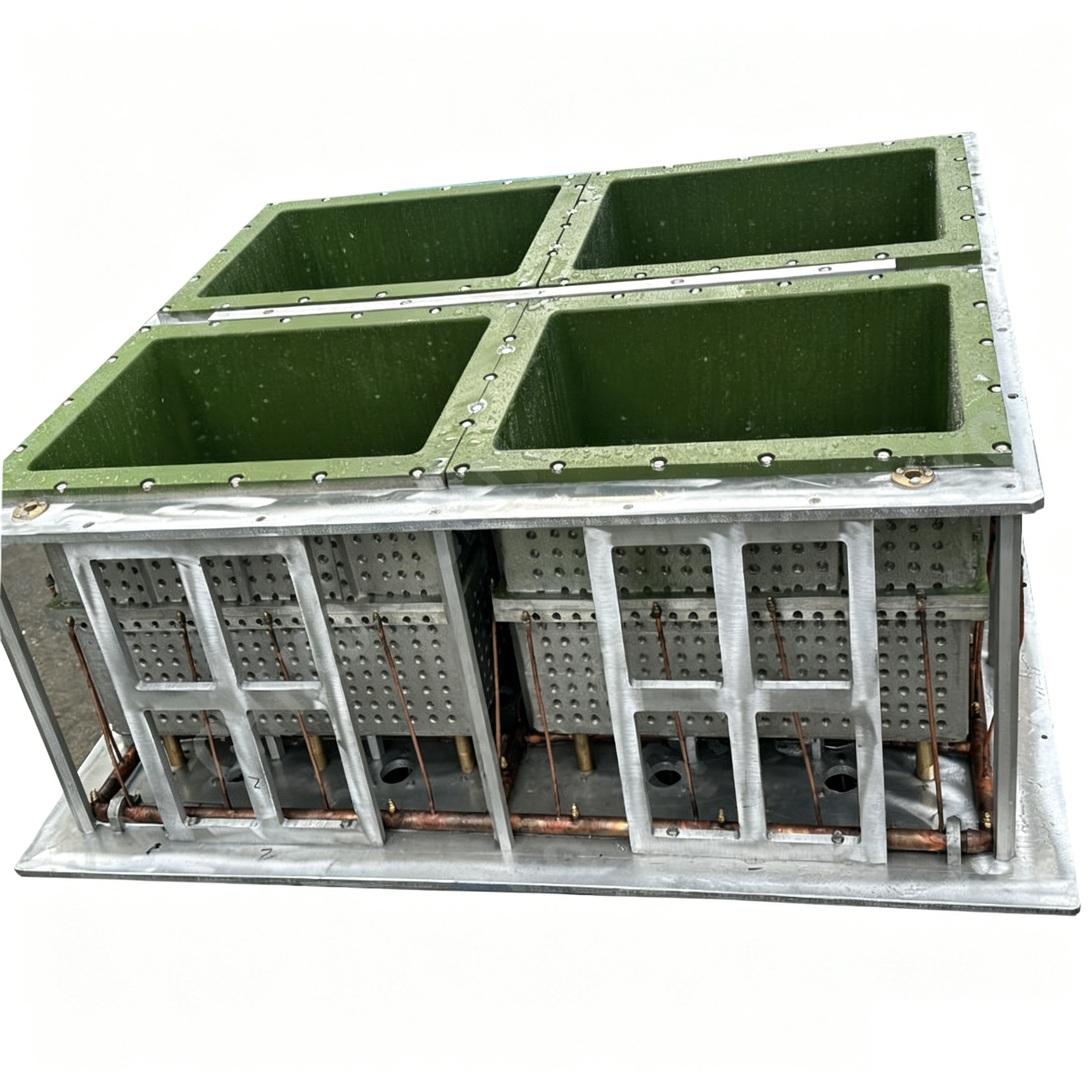

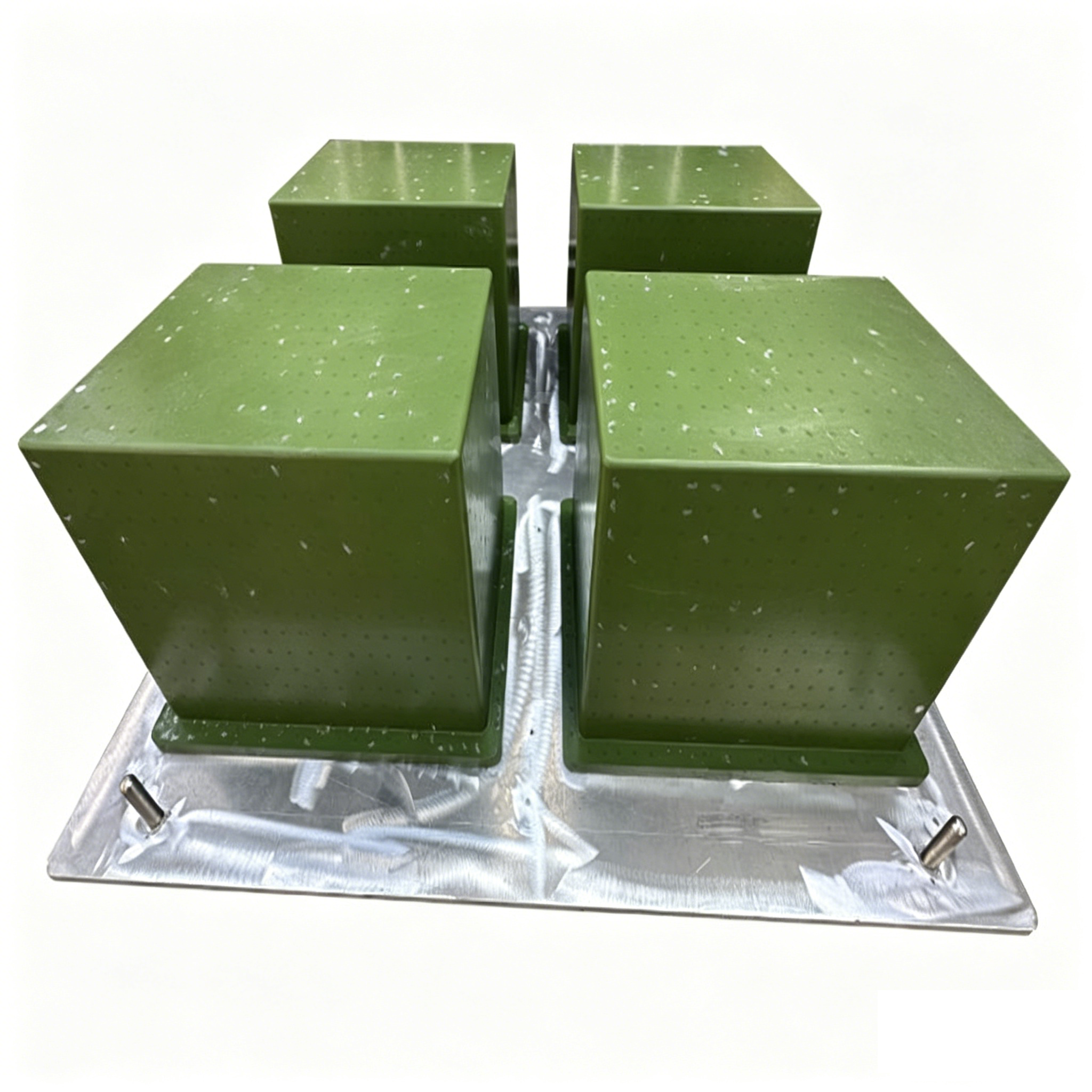

Custom Lost Foam Mold EPS/EPP Foam Tooling for Casting Patterns & Foam Boxes, Aluminum Mould

This custom lost foam mold is manufactured in China from aluminum alloy and designed for producing EPS or EPP foam patterns used in the lost foam casting process. The same aluminum mold platform can also be configured for foam box production where required. Cavity geometry, steam and cooling channels, venting, and ejection provisions are developed to match the customer’s pattern or box design. The mold is suitable for OEM and ODM projects, with machining, assembly, and trial molding carried out in-house. The resulting foam patterns are intended for subsequent refractory coating, sand embedding, and metal pouring, where the foam is replaced by molten metal.

Specifications

Mould Features

• Dual Foam Material Compatibility – The mold can be configured for EPS or EPP foam beads, allowing flexibility in pattern density and surface behavior for different casting and packaging needs.

• Aluminum Mold Construction – The tool body is machined from aluminum alloy, which supports rapid heat transfer during steam heating and cooling, and resists moisture in foam molding service.

• Pattern and Box Cavity Versatility – Cavity design can be adapted for lost foam casting patterns or for foam box shapes, depending on customer requirements.

• Integrated Steam and Cooling Layout – Internal channels are arranged to promote uniform bead fusion and controlled cooling, helping maintain consistent foam geometry.

• Venting and Ejection Provisions – Vent paths and ejector positions are incorporated to support complete cavity fill and clean release of foam parts.

Applications

• Lost Foam Casting Patterns – Production of expendable foam patterns for automotive, machine tool, and industrial metal castings.

• Machine Tool Component Patterns – Foam patterns for beds, columns, and housings used in machine tool manufacturing.

• Automotive Casting Patterns – Foam tooling for engine, transmission, and structural castings.

• Industrial Foam Boxes – Aluminum molds for EPS or EPP foam boxes used in packaging and logistics.

• Prototype and Trial Casting Patterns – Tooling for development projects, process validation, and small-batch production.

Manufacture Process
1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Packing & Shipping

Flexible Shipping Options: We understand that every customer has unique needs. That's why we offer flexible shipping options, including air freight, sea freight, and expedited delivery services. Our team will work with you to determine the most cost-effective and efficient shipping method based on your timeline and budget.

Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.

Company profile

Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.

Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.
