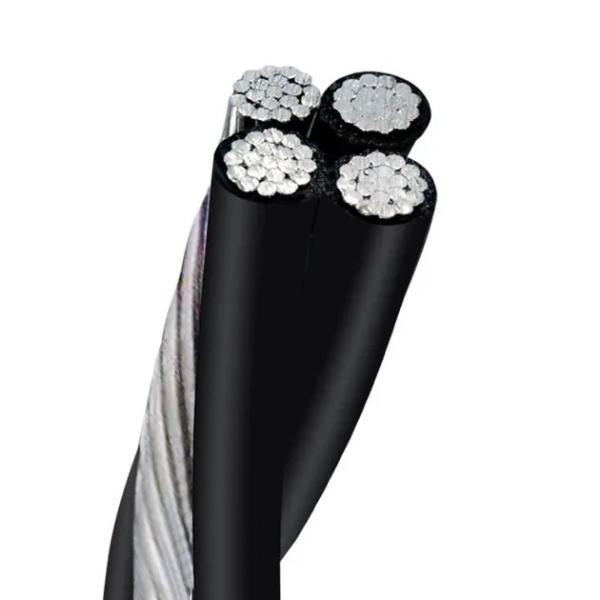

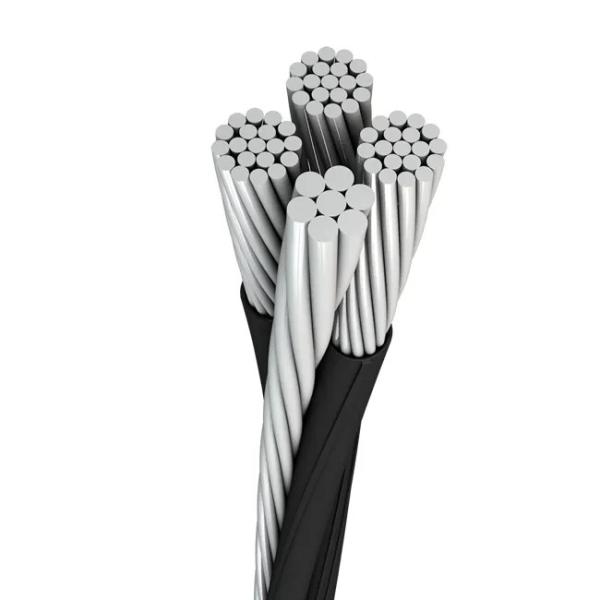

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service
Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service
Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service
Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service
Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service
Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service
Specifications
Brand Name :
Sanwu
Model Number :
xlpe insulated cables
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
USD 0.2-20 per meter
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
wooden drums
Name :
XLPE Shielded Cable
Insulation :
XLPE
Rated Voltage :
0.6-1kv
Standard :
IEC 60502-1
Service Life :
70 years
Core :
1 Core
Sheath :
PVC
Package :
wooden drum
Conductor Material :
Aluminum, Steel
Application :
Power Distribution, Construction, Underground, etc.
Description

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service

Description
Voltage: 0.6/1.0KV
Long term permissile working temperature of cable
Conductor: PVC and PE insulated cables can't exceed 70℃,and XLPE insulated cable shall not exceed 90℃
The layout temperature of cable shall not be lower than -20℃

Higher Current Capacity. Lower dielectric losses allow 15-20% more ampacity than equivalent PVC-insulated conductors.

Flexible Installation. Maintains flexibility across extreme temperatures (-40°C to +120°C) for easier handling in tough conditions.

Eco-Friendly Operation. Halogen-free options available (LSZH) producing minimal smoke/toxic gases if burned - safer for populated areas.

Partial Discharge Resistance. Stable insulation properties prevent progressive damage from electrical micro-discharges.

Standard

IEC 60502-1

SPEC

mm2

 Conductor structure

Insulation

Material

Insulation

thickness (mm)

Approx overall

Diameter(mm)

Approx weight

(kg/km)

Phase (compacted A)

Phase (compacted Al)

 Neutral (alloy)
No./mm No./mm
1*16+1*16 7/1.72 7/1.72

XLPE

Or

 1.2 12.5 110.1
1*25+1*25 7/2.15 7/2.15 1.2 14.9 163.9
1*35+1*35 7/2.54 7/2.54

PVC

or

PE

 1.4 17.5 229.0
1*50+1*50 7/2.92 7/2.92 1.4 20.1 300.0
1*70+1*70 19/2.15 19/2.15 1.4 23.6 423.2
1*95+1*95 19/2.54 19/2.54 1.6 27.6 585.4
2*16+1*16 7/1.72 7/1.72 1.2 14.2 175.8
2*25+1*25 7/2.15 7/2.15 1.2 16.7 258.4
2*35+1*35 7/2.54 7/2.54 1.4 19.7 361.2
2*50+1*50 7/2.92 7/2.92 1.4 22.5 472.1
2*70+1*70 19/2.15 19/2.15 1.4 26.1 658.3
2*95+1*95 19/2.54 19/2.54 1.6 30.5 908.2
3*16+1*16 7/1.72 7/1.72 1.2 16.3 241.5
3*25+1*25 7/2.15 7/2.15 1.2 19.1 353.6
3*35+1*35 7/2.54 7/2.54 1.4 22.5 493.5
3*50+1*50 7/2.92 7/2.92 1.4 25.7 644.1
3*70+1*70 19/2.15 19/2.15 1.4 29.7 895.2
3*95+1*95 19/2.54 19/2.54 1.6 34.6 1233.5

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service

Producing Process

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service

Application

Coastal/Offshore: Saltwater-resistant XLPE cables for ports, oil rigs, and desalination plants.

Arctic Zones: Stays flexible in sub-zero temperatures, unlike brittle PVC alternatives.

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service

Why Choose XLPE?

  • Longer Lifespan: 30+ years service life vs. 15-20 years for PVC cables.

  • Higher Efficiency: Lower dielectric losses save energy in long-distance transmission.

  • Safer Operation: Resists electrical treeing and partial discharges.

Packaging & Delivery

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service

Customers Visit

Aerial Cable Covered Line Wires Up To 35KV Service Drop Cable Aluminum Cable 16mm2 XLPE Insulated Twisted Service

Join the growing number of utilities and contractors who trust our aerial bundled cables for their most critical projects. Our reputation stems from uncompromising quality control, innovative design approaches, and exceptional customer support. Each cable undergoes rigorous testing for electrical, mechanical, and environmental performance before leaving our facility.

Our technical support team provides comprehensive assistance from system design through installation. With decades of experience in overhead power distribution solutions, we understand the real-world challenges you face and engineer our ABC products to solve them. The reliable, long-lasting performance that exceeds expectations.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
