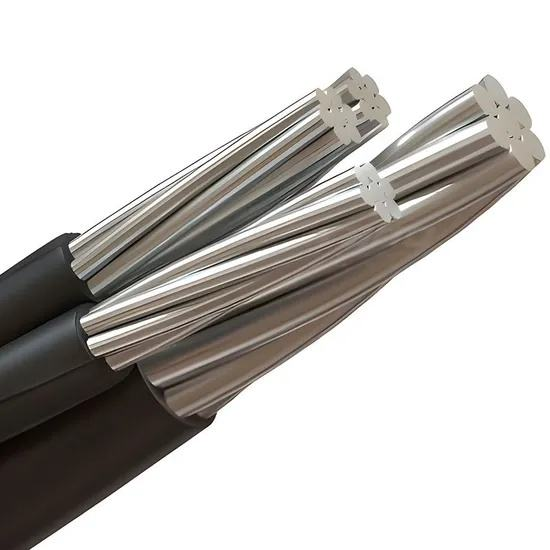

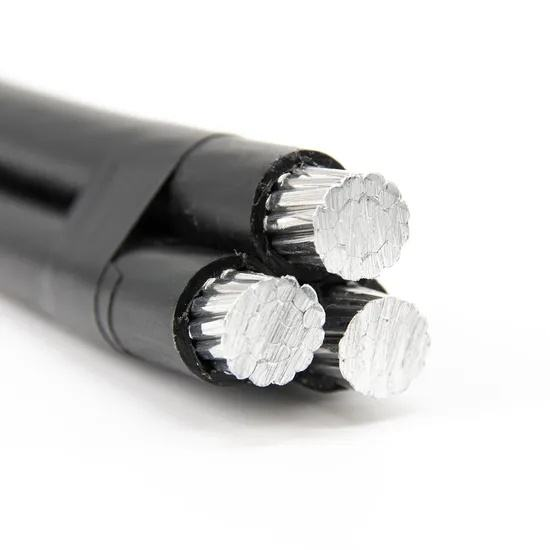

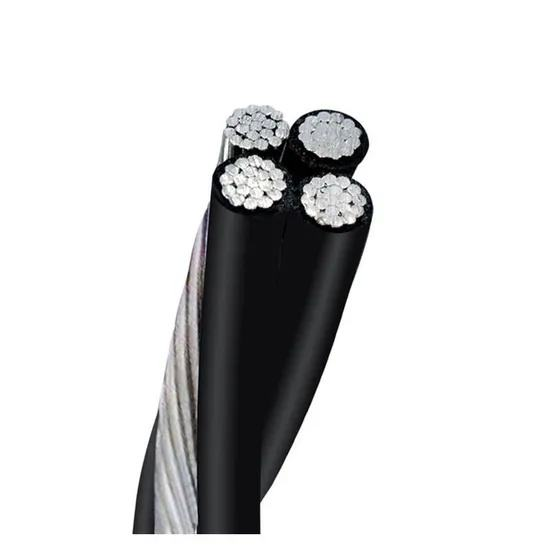

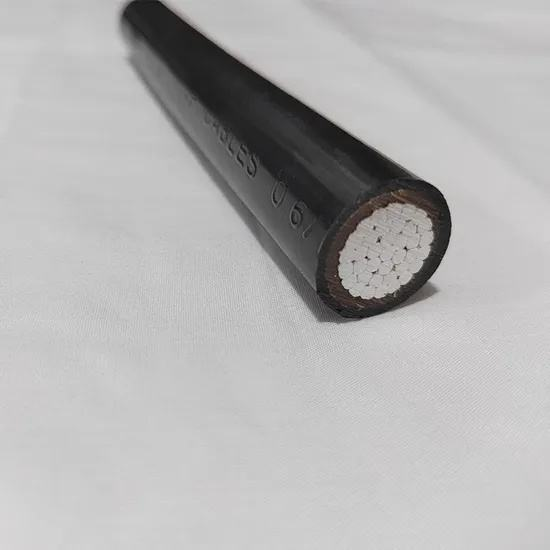

Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Specifications
Supply Ability :
200 tons per day
Name :
XLPE Shielded Cable
Model Number :
xlpe insulated cables
Conductor type :
Stranded
MOQ :
1000M
Delivery Time :
1-15days
Package :
wooden drum
Payment Terms :
L/C, T/T
Insulation :
XLPE
Sheath :
PVC
Price :
USD 0.2-20 per meter
Rated Voltage :
0.6-1kv
Standard :
IEC 60502-1
Certification :
ISO CCC
Place of Origin :
Henan
Packaging Details :
wooden drums
Brand Name :
Sanwu
Application :
Power Distribution, Construction, Underground, etc.
Description
Product Overview
The JKLYJ XLPE insulated overhead cable is an aluminium-conductor aerial cable designed for medium-voltage power distribution in industrial parks, urban networks, and rural electrification projects. Featuring compacted aluminium conductors with cross-linked polyethylene (XLPE) insulation, this cable offers superior thermal stability and dielectric strength compared to conventional PVC or polyethylene insulated cables.
Key Features
  • Engineered for fixed overhead installation as feeder lines or service drop conductors
  • Insulated construction reduces clearance requirements and minimizes outage risks
  • Excellent resistance to vegetation contact and environmental factors
  • Ideal for industrial park applications requiring reliability and low transmission losses
  • XLPE insulation provides superior thermal stability and dielectric strength
Technical Specifications
Standard: IEC 60502-1
Specification (mm²) Conductor Structure Insulation Material Insulation Thickness (mm) Approx Overall Diameter (mm) Approx Weight (kg/km)
1*16+1*167/1.72XLPE or PVC/PE1.212.5110.1
1*25+1*257/2.15XLPE or PVC/PE1.214.9163.9
1*35+1*357/2.54XLPE or PVC/PE1.417.5229.0
1*50+1*507/2.92XLPE or PVC/PE1.420.1300.0
1*70+1*7019/2.15XLPE or PVC/PE1.423.6423.2
1*95+1*9519/2.54XLPE or PVC/PE1.627.6585.4
2*16+1*167/1.72XLPE or PVC/PE1.214.2175.8
2*25+1*257/2.15XLPE or PVC/PE1.216.7258.4
2*35+1*357/2.54XLPE or PVC/PE1.419.7361.2
2*50+1*507/2.92XLPE or PVC/PE1.422.5472.1
2*70+1*7019/2.15XLPE or PVC/PE1.426.1658.3
2*95+1*9519/2.54XLPE or PVC/PE1.630.5908.2
3*16+1*167/1.72XLPE or PVC/PE1.216.3241.5
3*25+1*257/2.15XLPE or PVC/PE1.219.1353.6
3*35+1*357/2.54XLPE or PVC/PE1.422.5493.5
3*50+1*507/2.92XLPE or PVC/PE1.425.7644.1
3*70+1*7019/2.15XLPE or PVC/PE1.429.7895.2
3*95+1*9519/2.54XLPE or PVC/PE1.634.61233.5
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Manufacturing Process
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Applications
  • Industrial Park Primary Distribution - Main overhead feeder from substations to factory buildings
  • Urban Medium-Voltage Networks - Distribution corridors with clearance constraints
  • Rural Electrification Projects - Overhead line extensions to remote areas
  • Substation-to-Load Feeders - Fixed overhead connections between transformers and distribution equipment
  • Infrastructure Development Sites - Temporary or permanent power supply for construction and mining operations
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Packaging & Delivery
Packaging Details
Wooden package options available in various sizes: 0.5×0.5×0.5m, 0.6×0.6×0.6m, 0.7×0.7×0.7m, 1.1×1.1×0.8m, 2.2×2.2×1.8m, or custom sizes according to your requirements.
Delivery Time
Standard delivery is 5-10 days for in-stock items, or 15 days for custom orders.
Low Loss JKLYJ XLPE Insulated Cable Industrial Park Overhead Power Insulated Cable
Quality Assurance
  • Standard-Compliant Manufacturing - Produced in accordance with GB/T 14049 for 10kV rated voltage
  • Proven Weather Resistance - XLPE insulation tested for extended UV exposure and durability
  • Technical Application Support - Engineering assistance for cable selection and installation planning
  • Quality Verification - Each batch undergoes routine electrical and mechanical testing
  • Comprehensive Product Range - Available across wide cross-section range to match specific requirements
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
How long is your delivery time?
Generally it is 5-10 days if the goods are in stock, or 15-20 days if the goods are not in stock, depending on quantity.
Do you provide samples? Is it free or extra?
Yes, we offer samples free of charge but the customer pays for freight costs.
What are your payment terms?
Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment. L/C also available.
