B-399 Aerial Bundled Cable
B-399 Aerial Bundled Cable
B-399 Aerial Bundled Cable
B-399 Aerial Bundled Cable
Specifications
Brand Name :
Sanwu
Model Number :
ABC
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days

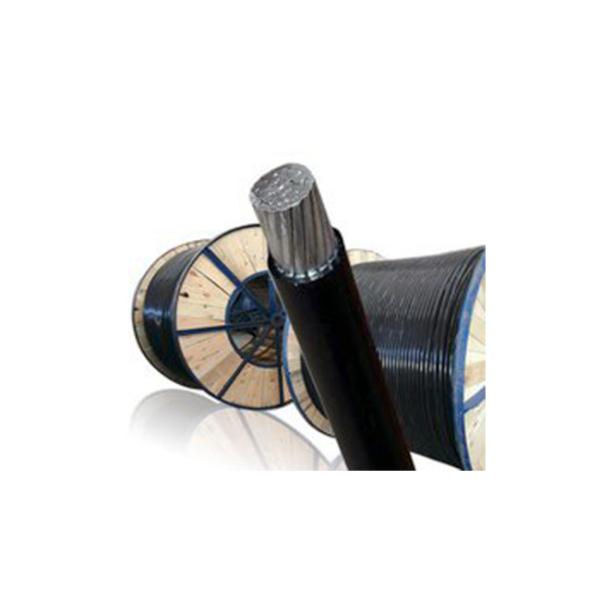

Packaging Details :
standard exported wooden drum or reels
Application :
Overhead power distribution
Type :
low voltage
Standard :
IEC/BS/ASTM/DIN
Conductor :
stranded
Insulation :
XLPE/PE
Packing :
treated wooden drum
Description

Aerial Bundle Cable (ABC Cable), Service Drop Cable
0.6/1KV, XLPE Insulation, Aluminum Conductor

Product Description

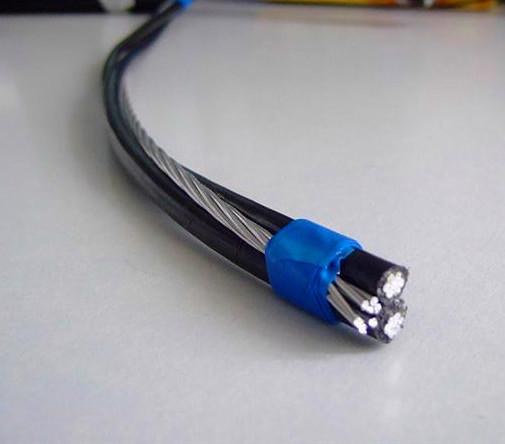

The basic construction is as follows:

3 power cores consisting of standard aluminium conductors, insulated with XLPE

insulation
One sheath lighting aluminium conductor with XLPE insulation(optional)
One messenger Al-alloy conductor (bare or covered)

The messenger conductor can be of galvanised steel wire also.

The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not

to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked

polyethylene(XLPE) insulated conductors.

Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA

Aerial Bundled Cable structure:
ABC Cables technical characteristics:
Cores Nominal cross-sectional area Phase Conductors
insulation		 Dia. Of cable R. of conductors at 20℃ Break strength of conductor
/km KN
3C+1C mm2 Thickness (mm) mm Phase cores Neutral cores Phase cores Neutral cores
3C+1C 3x25+54.6 1.4 23.57 1.2 0.630 16.6 16.6
3C+1C 3x35+54.6 1.6 26.08 0.868 0.630 16.6 16.6
3C+1C 3x50+54.6 1.6 28.15 0.641 0.630 16.6 16.6
3C+1C 3x70+54.6 1.8 32.15 0.443 0.630 16.6 16.6
3C+1C 3x70+54.6 1.8 32.15 0.443 0.630 16.6 16.6
3C+1C 3x70+70 1.8 32.75 0.443 0.500 20.5 20.5
3C+1C 3x95+70 1.8 35.78 0.32 0.500 20.5 20.5
3C+1C 3x120+70 1.8 37.93 0.253 0.500 20.5 20.5
3C+1C 3x120+70 1.8 37.93 0.253 0.500 20.5 20.5
3C+1C 3x120+95 1.8 39.26 0.253 0.343 27.5 27.5
3C+1C 3x150+95 1.9 41.81 0.206 0.343 27.5

27.5
