Aluminum Stranded GB/T 1179 1KV ACAR Conductor
Aluminum Stranded GB/T 1179 1KV ACAR Conductor
Aluminum Stranded GB/T 1179 1KV ACAR Conductor
Aluminum Stranded GB/T 1179 1KV ACAR Conductor
Specifications
Brand Name :
Sanwu
Model Number :
ACAR
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
USD 0.2-20 per meter
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
wooden drums or depend on customers request
Name :
ACAR Conductor
Core :
Aluminum alloy
Color :
Silver
Insulation :
Bare
Application :
Aerial power distribution lines
Rated Voltage :
0.6-1kv
Service Life :
70 years
Warranty :
1 year
Description

Aluminium Conductor Alloy Reinforced Bare Ground Wire Low Voltage Cable Wire

Product Name Aluminum Conductor Alloy Reinforced (ACAR)
Conductor Aluminum
Construction Aluminum Stranded & Aluminum Alloy Reinforce
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

1. Applications:

ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics.

As comparison with ACSR of same weight, ACAR can offers higher mechanical strength.

2. Features :

Aluminum Conductor Alloy Reinforced (ACAR)

cable is an excellent conductor choice where current

carrying capacity, higher strength and a lower conductor

weight are critical to the line design.

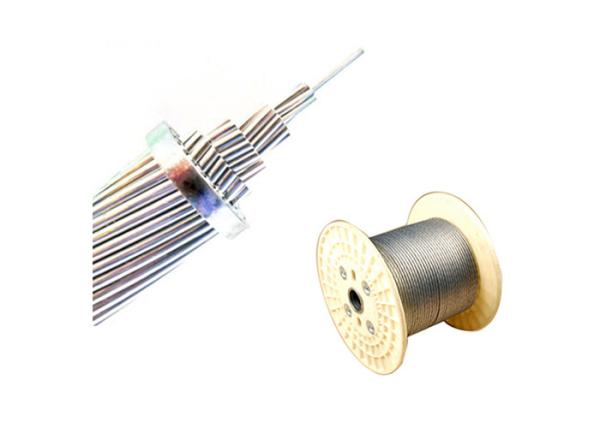

3. Construction:

Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design.

In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.

4. Producing Process:

Aluminum Stranded GB/T 1179 1KV ACAR Conductor

5.Our Products:

Aluminum Stranded GB/T 1179 1KV ACAR Conductor

6.Packaging & Delivery:

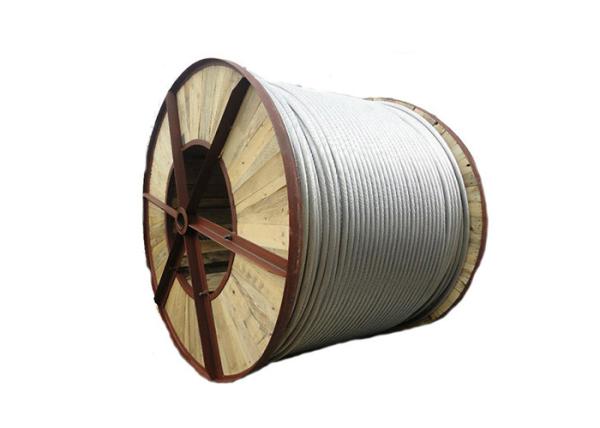

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.
