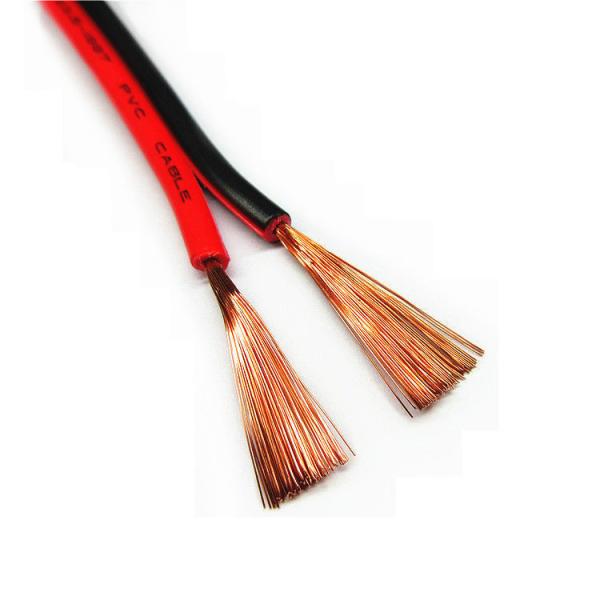

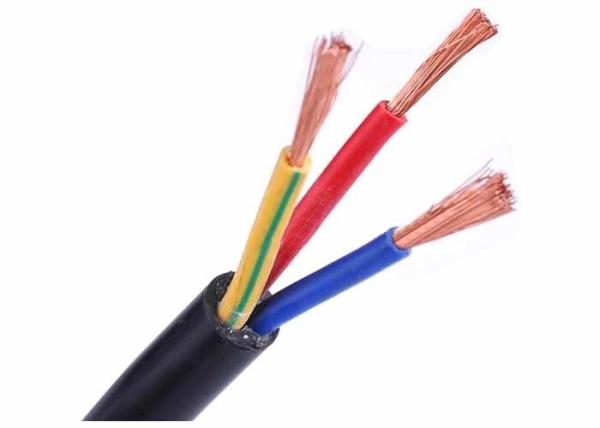

PVC Cover Solid Strand TW THW LV Power Cable
PVC Cover Solid Strand TW THW LV Power Cable
PVC Cover Solid Strand TW THW LV Power Cable
PVC Cover Solid Strand TW THW LV Power Cable
PVC Cover Solid Strand TW THW LV Power Cable
PVC Cover Solid Strand TW THW LV Power Cable
Specifications
Brand Name :
Sanwu
Model Number :
THW-002
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
USD0.16-125 per meter
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :

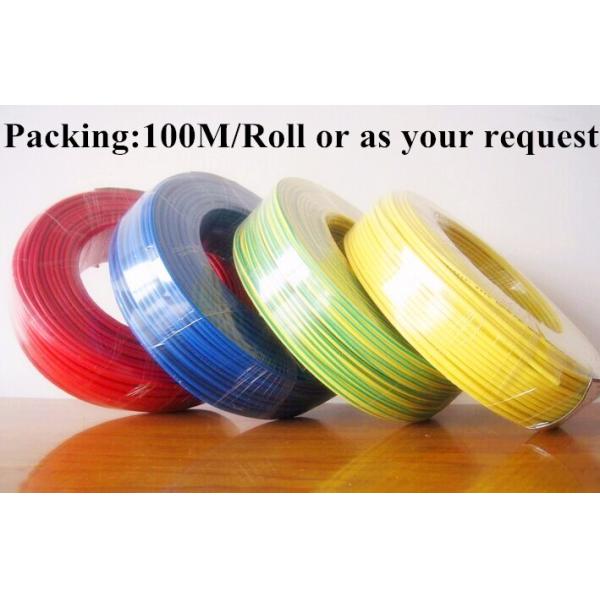

100m one roll with plastic bag or as clients' requirement
Insulation material :
PVC
Type :
Low Voltage Power Cable
Application :
Power distribution
Conductor material :
Annealed copper
Packing :
100m one roll
Production capacity :
3000km per month
Description

600V Pvc Cover Solid /Strand Electrical TW/THW Low Voltage Power Cable
Application and Standard:
(1)Type TW and THW wire may be used for general purpose wiring for power and lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations. Maximum voltage rating:600 V
(2)ASTM B3, B8.
UL 83 - Thermoplastic-Insulated Wires and Cables.
UL1581 - Electrical Wires, Cables and Flexible Cords.

THW wire Cable Structure:

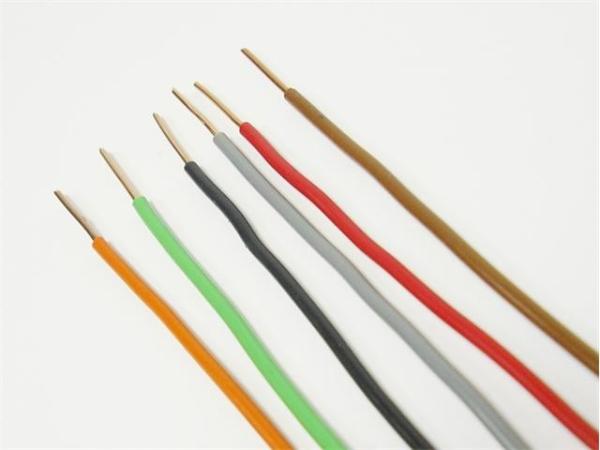

1. Conductor:Bare annealed copper conductor, solid or stranded.
2. Insulation:moisture-resistant, polyvinyl chloride (PVC) insulation
3. Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request

Working Condition THW wire:
1. For installation in conduits and other raceways
2. Oil and grease resistant insulation
3. Abrasion and crush resistant
4. THW insulation is flame retardant PVC and meets the UL VW-1 flame test
5. Maximum continuous conductor temperature: 75°C Dry, 75°C Wet

Specification for THW wire :

MAXIMUM CONDUCTOR TEMPERATURE
typeoilwetdry
TW60ºC60ºC60ºC
THW75ºC75ºC75ºC
MTW*60ºC60ºC90ºC

Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2(More size and specification can be customized)

AWG/MCMmm2ConductorConductorInsulation

Total
Weight

TypeSingle WireOD.PVCkg/km
No.Dia.ThickmmThickminOD.
mils
180.82solid11.021.02300.760.890.72.5414.82
161.31solid11.291.29300.760.890.72.8120.27
142.09solid11.631.63300.760.890.73.1528.6
123.33solid12.062.06300.760.890.73.5841.48
105.27solid12.592.59300.760.890.74.1160.93
88.35solid13.263.26451.141.2215.5498.99
613.33solid14.124.12601.521.671.47.16162.23
421.16solid15.195.19601.521.671.48.23240.34
180.82B70.3861.158300.760.890.72.67815.65
161.31B70.4881.464300.760.890.72.98421.43
142.08B70.6151.845300.760.890.73.36530.1
123.3B70.7752.325300.760.890.73.84543.38
105.26B70.9782.934300.760.890.74.45464.02
88.32B71.233.69451.141.2215.97103.92
613.21B71.554.65601.521.671.47.69169.62
421.12B71.965.88601.521.671.48.92252.44
233.54B72.477.41601.521.671.410.45379.53
142.62B191.698.18802.032.111.812.24480.75
1/053.3B191.899.19802.032.111.813.25586.71
2/067.7B192.1310.34802.032.111.814.4727.52
3/085.24B192.3911.61802.032.111.815.67897.84
4/0107.18B192.6813801.521.671.416.441097.15
250126.94B372.0914.2952.412.562.219.021340.08
300152.39B372.2915.54952.412.562.220.361586.07
350177.29B372.4716.79952.412.562.221.611825.98
400202.53B372.6417.96952.412.562.222.782068.12
500252.89B372.9520.04952.412.562.224.862548.31
600304.24B612.52221102.792.892.527.583084.92
750380.99B612.8224.641102.792.892.530.223816.9
1000506.04B613.2528.41102.792.892.533.985002.6

PVC Cover Solid Strand TW THW LV Power Cable
