16mm2 25mm2 35mm2 All Aluminium Conductor Iec 61089
16mm2 25mm2 35mm2 All Aluminium Conductor Iec 61089
16mm2 25mm2 35mm2 All Aluminium Conductor Iec 61089
16mm2 25mm2 35mm2 All Aluminium Conductor Iec 61089
Specifications
Brand Name :
Sanwu
Model Number :
All Aluminium Conductor
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer's request
Type :
All Aluminium Conductor
Standard :
IEC 61089
Usage :
aerial cable
Packing :
Wooden drum
Supplier by Area :
Asia,South America,South Africa
MOQ :
10KM
Sample :
Free
Cross Section area: :
16mm2 25mm2 35mm2
Description

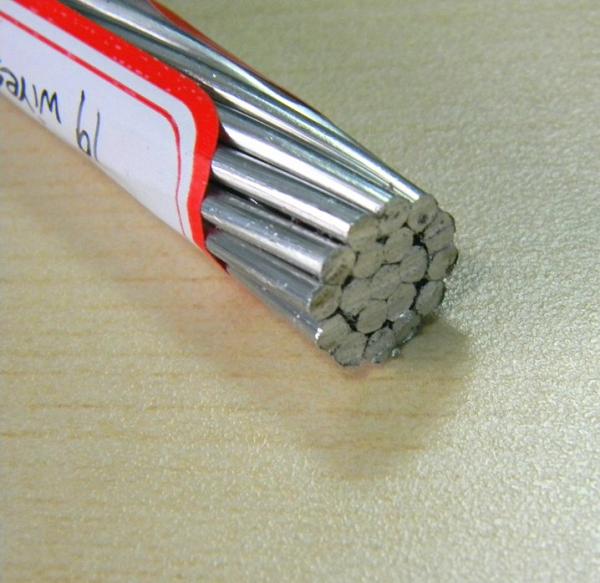

16mm2 25mm2 35mm2 All Aluminium Conductor IEC 61089

All Aluminium Conductor is Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.

Service Performance

(1). The permissible long-time operating temperature for aerial conductors is 70oC.

(2). Under the circumstance that rare climate occurs and high ice coverage rate, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

All Aluminium Conductor Specification

Nominal

area

 Stranding &wire diameter Approx Overall diameter Breaking Load DC Resistance at 20

Approx.

Weight
mm mm N Ω/km Kg/km
16 7/1.70 5.10 2840 1.802 43.5
25 7/2.15 6.45 4355 1.127 69.6
35 7/2.50 7.50 5760 0.8332 94.1
50 7/3.00 9.00 7930 0.5786 135..5
70 7/3.60 10.80 10950 0.4018 195.1
95 7/4.16 12.48 14450 0.3009 260.5
120 19/2.85 14.25 19420 0.2373 333.5
150 19/3.15 15.75 23310 0.1943 407.4
185 19/3.50 17.5 28440 0.1574 503.0
210 19/3.75 18.75 32260 0.1371 577.4
240 19/4.00 20.00 36260 0.1205 656.9
300 37/3.20 22.40 46850 0.09689 820.4
400 37/3.70 25.90 61150 0.07247 1097
500 37/4.16 29.12 76370 0.05733 1387
630 61/3.63 32.67 91940 0.04577 1744
800 61/4.10 36.90 115900 0.03588 2225

16mm2 25mm2 35mm2 All Aluminium Conductor Iec 61089

16mm2 25mm2 35mm2 All Aluminium Conductor Iec 61089
