PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
Specifications
Brand Name :
Kinga
Model Number :
KJ - 40047
Certification :
ISO 9001 / TS 16949
Place of Origin :
China
MOQ :
30PCS
Price :
Negotiation
Payment Terms :
L/C T/T
Supply Ability :
600,000 PCS / Year
Delivery Time :
45 DAYS
Packaging Details :
Cardboard Protector / Neutral Packing / Foam Corner Protector / Blister Packing
Price terms :
FOB ShenZhen / GuangZhou
Tank Size :
41.5 / 41.5 * 390 mm
Thickness :
16 / 22 mm
Core Size :
600 * 368 * 16 / 22 mm
Inlet Size :
diameter 32 mm
At / Mt :
At
Core Material :
Aluminum
Oil Cooler :
22 * 275 mm
Carton Size :
810 * 110 * 540 mm
Outlet Location :
Left Top
Inlet Location :
Right Bottom
Description

PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT

Item Specifications

Manufacturer Part Number

KJ - 40047 - PA16 / 22

OEM

168 500 0302 / 0602

Car Type

Benz Radiator

Core Material

Aluminum

Tank Material

Plastic

Transmission

AT

Thickness

16 / 22mm

Core width

368 mm

Core Height

600 mm

Inlet Location

Right Bottom

Engine Oil Cooler:

22 * 275 mm

Auto Radiator (engine cooling)

Radiators are heat exchangers used for cooling internal combustion engines, mainly in automobiles but

also in piston-engined aircraft, railway locomotives, motorcycles, stationary generating plant or any similar use of such an engine.

Raditor Structure Chart

Brazed Radiator Structure

1. Filler Neck

8. Side Plate

15. KINGA Logo

2. Top Header Plate

9. Core Height

16. Bottom Header Plate

3. Inlet Pipe

10. Fin

17. Water switch

4. Top Tank

11. Tube

18. Bottom Tank

5. Top Mounting Pins

12. Core Width

19. Oil Cooler

6. Fan Mount

13. Core Thickness

20. Outlet Pipe

7. Overflow Pipe

14. Clip

Our advantage

1. Efficiency: any inquiry or email will be replied within 24 hours.

2. Profession: more than 20 years technical and sales support team offer you the best service.

3. Delivery: 15-20 days for one container.

4. Guaranty: strict quality control through our quality control team, one year warranty against BL date,

any leakage will replace or return by money.

5. High quality and competitive price: we are using high quality materials, we have advanced production

equipment, strict requirements for production, good price.

Benz W168 / A140 / A160 ' 97 - 00 - AT

Pay Attention

①. Compare your radiator to the picture below .

② . Flush the entire cooling system of the vehicle .

③ . Radiator should not contact with any acid , alkali or other corrosive properties .

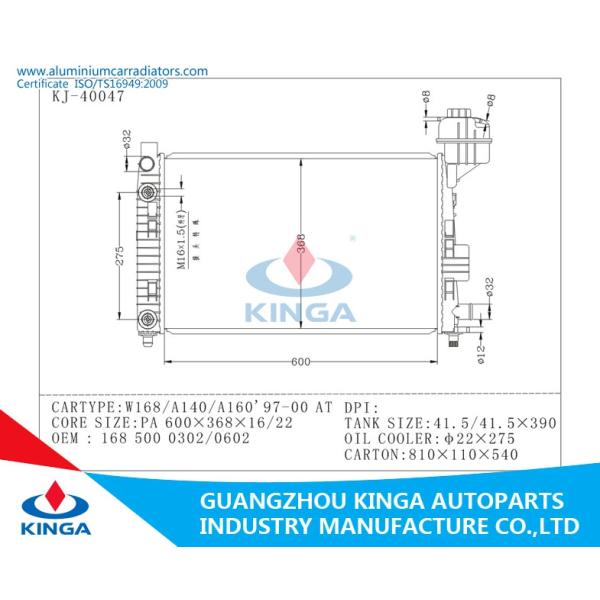

Benz Radiator Drawings
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT

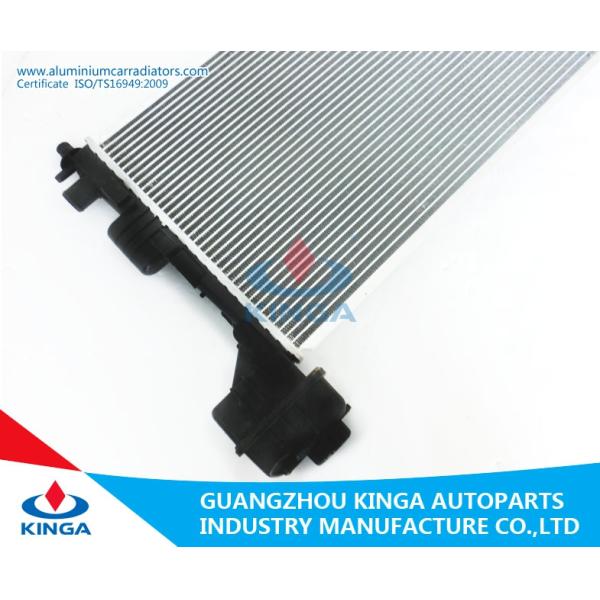

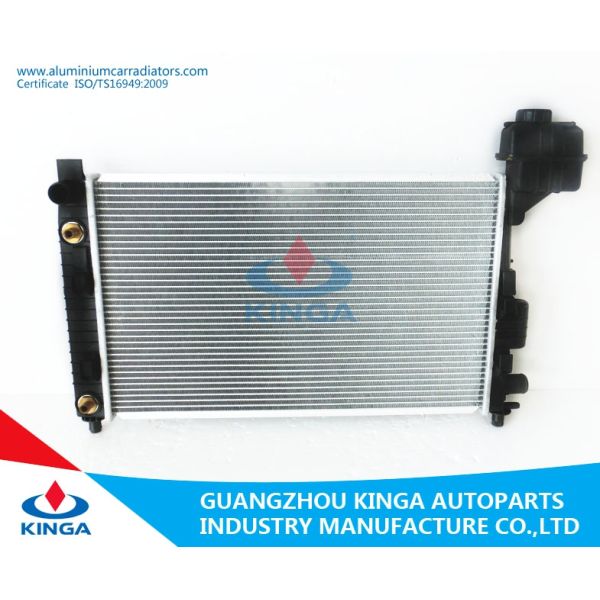

Radiator Pictures
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT

Please feel free to contact us for any question! Join us, this is a new beginning of the journey ,

you will feel the most efficient service, best quality and excellent reputation!
