Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W
Specifications
Place of Origin :
MADE IN CHINA
Brand Name :
KINGA
Certification :
ISO / TS 16949
Model Number :
KJ-12456-PA32 / PA36 / PA48
MOQ :
30PCS
Price :
Negotiation
Packaging Details :
Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time :
45 Days
Payment Terms :
T/T L/C
Supply Ability :
600,000 PCS / Year
Price Terms :
FOB ShenZhen / GuangZhou
Description

Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W

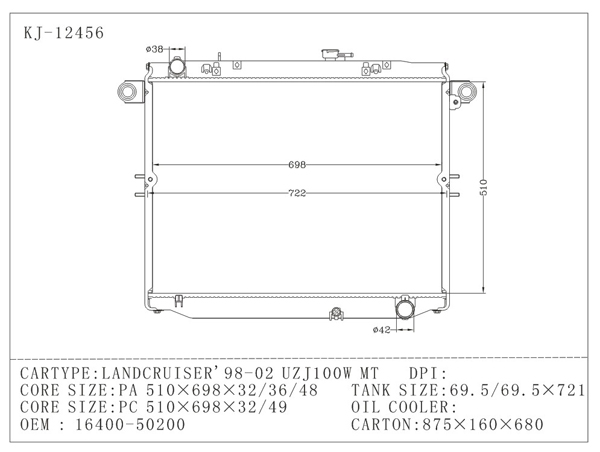

Item Specifications

Manufacturer Part Number KJ-12456
OEM 16400-50200
Thickness 32 mm
Car Type LANDCRUISER 1998 , 1999 , 2000 , 2001 , 2002 UZJ100W
Carton Size 875 * 160 * 680 mm
Transmission MT
Core Size 510 * 698 * 32 / 36 / 48 mm
Tank Size 69.5 / 69.5 * 721 mm
Core Material Aluminum
Tank Material Plastic

More Information

KJ-12455-PA26 LANDCRUISER'98-02 UZJ100W PA26/AT
KJ-12455-PA32 LANDCRUISER'98-02 UZJ100W PA32/AT
KJ-12455-PA36 LANDCRUISER'98-02 UZJ100W PA36/AT
KJ-12455-PA48 LANDCRUISER'98-02 UZJ100W PA48/AT
KJ-12456-PA32 LANDCRUISER'98-02 UZJ100W PA32/MT
KJ-12456-PA36 LANDCRUISER'98-02 UZJ100W PA36/MT
KJ-12456-PA48 LANDCRUISER'98-02 UZJ100W PA48/MT

Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip


Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W

Packing

Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W

Packaging design according to customer requirements.

NOTICE

1. Compare your radiator to the picture below

Aluminium racing radiators Toyota Radiator For LANDCRUISER 1998 , 2002 , UZJ100W

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
