Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers
Specifications
Brand Name :
RUIYI
Model Number :
3003
Certification :
TSI6949 Cetificated
Place of Origin :
China
MOQ :
3Ton
Price :
US$2100-US$2900 per ton
Supply Ability :
1000 ton per Month
Delivery Time :
25 days
Packaging Details :
standard wood pallet
Product name :
aluminum sheet coil
Alloy :
3003 5052 6061
Thickness :
0.1-10.0mm
Width :
customize
Length :
customize
Protect surface :
PE PVC film paper
Application :
storage container, stairs tread plate
Description

weatherproof Storage container use diamond aluminum sheet 3003 aluminium plate coil supplier

Diamond plate, also known as checker plate, tread plate and Durbar floor plate, is a type of metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Diamond plate is usually steel, stainless steel or aluminum.


Aluminum contains different properties and it makes a high valuable metal. Aluminum sheets made of diamond are used for different types of purposes in various industries and it is used for several purpose in home.


Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers

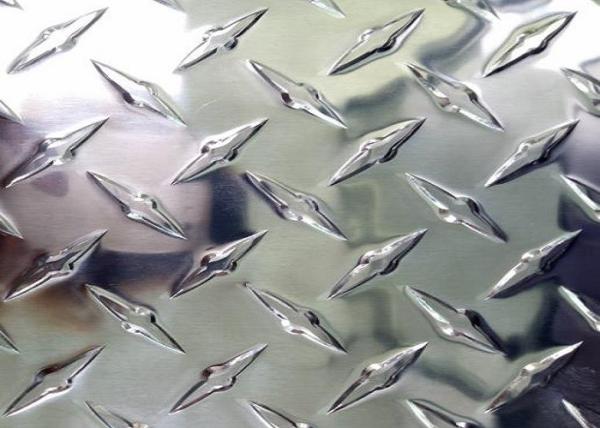

Aluminum diamond plate is basically a sheet of aluminum on which a recurring pattern of raised diamonds is embossed or stamped. Due to its anti-slip and cosmetically-appealing texture, the plate is extensively used in dance floors, wall panels, counter tops, floor mats, and tool boxes. It is also used for the steps and floor bed of trucks, buses, trailers, and so forth.


Customized Aluminum Diamond Plate Sheets 3003 Aluminum Plate For Storage Containers

Aluminum diamond plates are used to manufacture dance floor, truck toolboxes, storage containers, running boards, wall panels and so on since it contains the raised diamond pattern on one side of the diamond plate.
By creating the raised diamond pattern on the surface of the aluminum diamond plate, it looks attractive.
Diamond plates are a robust material, which is a made of lightweight metal aluminum, which it provides brightness. It is possible to purchase the diamond plates in a pre cut form by specifying the thickness and size of the diamond plates. Sliced sheet distributor provides the diamond plate with specified range of thickness and its size and it is delivered to your doorstep.
Diamond aluminum sheet is a corrosion resistant material and it does not rust easily since it contains the diamond pattern on its surface and it is easy to clean.
The maintenance of the aluminum diamond plate is easy when it is compared with the other forms of metal. These are used for both practical and decroative applications since the surface of the diamond plates looks bright and effective in its form of the metal.
Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
