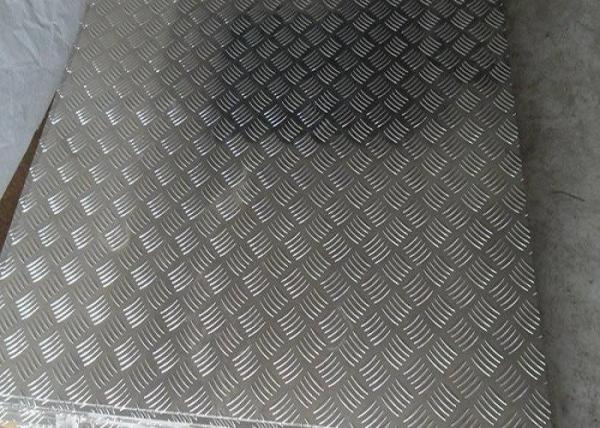

Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical
Specifications
Brand Name :
RUIYI
Model Number :
3003
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 Ton
Price :
US$2100- US$3500 per ton
Supply Ability :
1000 Ton Per Month
Delivery Time :
25 working days
Packaging Details :
wooden pallets
Product name :
Aluminium chequered plate
Alloy Grade :
3003
Temper :
H14 H22
Features :
Anti-skid
Thickness :
1.2 mm -7.0mm or custom
Width :
100 MM - 1650MM
Finish :
Mill or Brite
Description

Anti-skid function good corrosion resistance mechanical use 3003 H22 aluminium chequered plate

  1. Aluminium checkered plate

  2. Thickness:1.0-8.0mm

  3. Width:750--1520mm

  4. Lenght:800-8000mm

  5. Pattern:diamond,1bar,3 bars,5bars, stucco.

  6. This series aluminum tread plate is anticorrosive and its production technology is good.

  7. The main ingredient in it is manganese element and the content is between 1.0% and 1.5%.

APPLICATIONS

As a result of it good property in anti-corrosion, this series aluminum tread plate is commonly used in moist environments like air conditioners, refrigerators, the bottom of cars. Slippery floors,equipment floor,stairs,platform, Bus and auto floor etc.

3003 Aluminum diamond Plate, 5bars,small 5 bar, diamond,drop tear, 3003 aluminum diamond plate.aluminium tread sheet, 3003 H22 aluminium plate.

RUIYI is a professional manufacturer and supplier of 3000 aluminum tread plate based in China. We also provide aluminum sheet, aluminium slit coil, coated aluminum coil, aluminum strip, anodising aluminum sheet, diamond aluminum tread plate, aluminum coil, and more. For more information, please feel free to contact us via email, fax or phone.

We can supply


Alloy: 1050 1060 1100 3003, 3105, 5052, 5005, 5754 5083 5182, 6061 6063 6082, 7075, 8011…
Temper: HO, H111,H12, H14, H24,H 32, H112, T4, T6, T5,T651
Surface:Mill/Emboss/Diamond/2bar/3bars/Bright
Thickness: 0.2mm to 300mm
Width: 30mm to 2300mm
Length:1000mm to 10000mm.

aluminum stair tread sheet, Aluminum tread Brite plate,Aluminum checker plate manufacturers, Perforated aluminum sheet china,Diamond sheet manufacturers, Aluminum tread plate manufacturers, Aluminium sheet factory, aluminium plate metal

Anti Skid 3003 H22 Aluminium Chequered Plate Corrosion Resistance For Mechanical

Chemical Analysis of aluminum alloy Plate
Alloy Si Fe Cu Mn Mg Cr Ni Zn Ti Al
1050 0.25 0.4 0.05 0.05 0.05 - - 0.05 0.03 Remains
1060 0.25 0.35 0.05 0.03 - - - - - Remains
1070 0.2 0.25 0.04 0.03 0.03 - - - - Remains
1100 0.95 0.95 0.05-0.2 0.05 - - 0.1 - - Remains
1200 1 1 0.05 0.05 - - - 0.1 0.05 Remains
3003 0.6 0.7 0.05-0.2 1.0-1.5 - - - 0.1 - Remains
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 - 0.25 - Remains
5042 0.2 0.35 0.15 0.2--.5 3.0-4.0 0.1 - 0.25 0.1 Remains
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 - 0.1 - Remains
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 - 0.25 - Remains
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 - 0.2 - Remains
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 - 0.25 - Remains
6063 0.2-0.6 0.35 0.1 0.1 0.45 0.1 - 0.1 - Remains
6082 0.7-1.3 0.5 0.1 0.4-1.0 0.6-1.2 0.25 - 0.2 - Remains
7050 0.12 0.15 2.0-2.6 0.1 1.9-2.6 0.04 - 5.7-6.7 0.06 Remains
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 - 5.1-6.1 0.2 Remains
