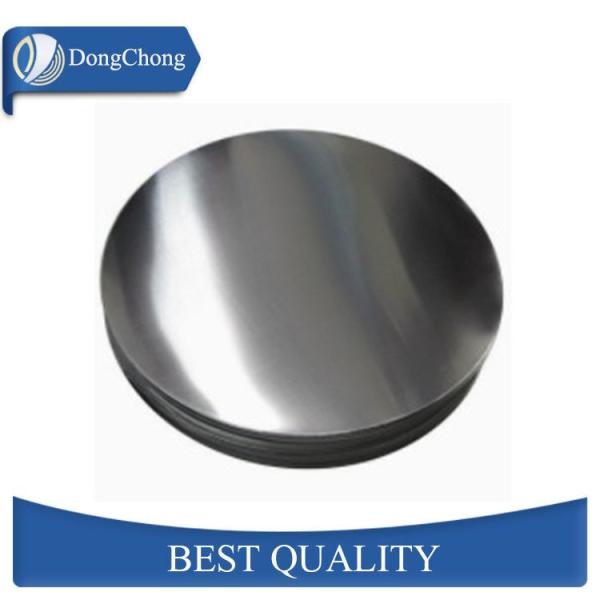

DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs
DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs
DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs
DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs
DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs
DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs
Specifications
Brand Name :
Dongchong
Model Number :
1050
Certification :
MTC,MSDS,REACH,ISO,ROHS,FDA
Place of Origin :
Chongqing ,China
MOQ :
500-5000kg for different product
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000Tons per month
Delivery Time :
15-25days
Packaging Details :
Wooden Pallet
Alloy :
1050
Surface :
Mill Finish
Standard :
GB/T3880 ASTM B209
Packing :
Wooden Pallet
HS CODE :
7606910000
Color :
Silver
Description

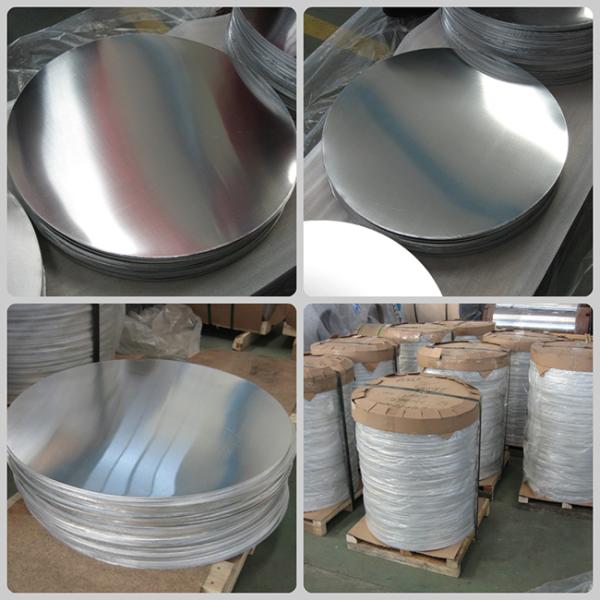

DC CC Mill Finish Circle Aluminum Sheet 1050 O Aluminum Circle for Pressure Cookers

Product Description

Alloy 1050 1060 1100 3003 5052 5754 8011
Temper H18,H14,H16,O ,H32,H111
Diameter 20-200MM
Thickness 0.3-20MM
Usage Deep drawing cookware, spinning cookware, road sign, Building Material,Insulation,etc.

1, Aluminum circle Tolerance: thickness tolerance +/-3%, diameter tolerance +/-1%mm

2, Aluminum circle Surfact Quality :Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use.

3, Aluminum circle Mechanical Property:

Chemical Composite and Mechanical Property could meet the requirements of GB/T, ASTM, ENAW, JIS Standard

Chemical Composition

Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
1060 0 >0. 20 — 0, 30 60—100 15 15
>0.30—0,50 18
>0. 50-1. 50 23
>1. 5-6.00 25
>6. 00 — 80, 00 25
H12 H22 >0.50 —1,50 80 — 120 60 6
>1. 50 — 6,00 12
H14 H24 >0. 30 — 0, 50 95-135 70 2
>0.50 — 0. 80 2
>0. 80—1. 50 4
>1.50 — 3.00 6
>3.00 — 6. 00 10
H16 H26 >0.20-0. 30 110 — 155 75 1
>0. 30 — 0.50 2
>0. 50 — 0. 80 2
>0.80 〜1.50 3
>1. 50 — 4. 00 5
H18 >0. 20 — 0.30 125 85 1
>0. 30 — 0, 50 2
>0.50 — 1.50 3
>1,50-3.00 4
H112 >4. 50〜5. D0 75 10
>6. 00 — 12. 50 75 10
>12*50 — 40.00 70 ——
>40.00-80.00 : 60
Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
1O5OA 0 >0. 20—0.50 60-100 15
>0,50 — 1,50 20
>0.8-1.5 20 25
>1.5-6.0 28
>6. 00—50, 00 30
H12 >0.20 — 0. 50 80-120 2
>0.50 — 1.50 65 4
>1. 50 — 3.00 5
>3.00 — 6.00 7
H22 >0. 20 — 0. 50 80 4
>0. 50—1. 50 65 5
>1. 50 — 3. 00 6
>3. 00 — 6. 00 11
H14 >0. 20 — 0.50 95-130 2
>0. 50 — 1. 50 75 3
>1.50 — 3.00 4
>3.00 — 6. 00 5
H24 >0. 20—G. 50 95 3
>0. 50—1.50 75 4
>1.50 — 3.00 5
>3.00—6. 00 8
H16 >0.20 — 0. 50 120-150 85 1
>0, 50 — 1.50 2
>1. 50 — 4. 00 3
H26 >0.20 — 0. 50 120 2
>0, 50 — 1.50 3
>1. 50 — 4. 00 85 4
H18 >0. 20—0.50 130 1
>0. 50 — 1. 50 2
>1. 50 — 3. 00 3
H112 >4. 50— 12. 50 85 45 10
>12,50—75,00 80 45 10
Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
1100 0 >0. 20-0. 30 75 — 105 25 15
>0.30 — 0.63 17
>0. 63-1.2 22
>1.2-6.3. 30
>6.3 — 80.00 28
H12 H22 >0. 20—0,50 95—130 75 3
>0. 50 — 1. 50 5
>1.50 — 6.00 8
H14 H24 >0.20-0.30 110 — 145 95 1
>0. 30 — 0. 50 2
>0.50 — 1,50 3
>1.50 — 4.00 5
H16 H26 >0. 20—0.30 130-165 115 1
>0. 30 — 0.50 2
>0.50 — 1,50 3
>1.50 — 4.00 4
H18 H28 >0. 20 — 0.32 150 — 1
>0.32-0.63 2
>0.63-1.2 4
>1.2-3.2 90 50 9
H112 >12,50 — 40.00 85 40 —
>40.00 — 80.00 80 30
Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
3003 O H111 >0. 20—0. 50 95-135 35 15
>0. 50 — 1. 50 17
>1. 50 — 3. 00 20
>3.00 — 6. 00 23
>6.0-12.5 24
>12.5-50
H12 >0. 20—0. 50 120-160 90 3
>0. 50 — 1. 50 4
>1.50 — 3.00 5
>3. 00 — 6. 00 6
H14 >0. 20 — 0. 50 145-195 125 2
>0. 5- 50 2
>1. 50 — 3. 00 3
>3. 00—6.0 4
H16 >0. 20 — 0. 50 170-210 140 2
>0.50 — 1.50 3
>1. 50—4. 00 3
H18 >0. 20 — 0. 50 190 170 1
>0. 50—1. 50 2
>1. 50 — 3. 00 2
H22 >0. 20—0. 50 120-160 80 6
>0. 50 — 1.50 7
>1.50 — 3.00 8
>3. 0—6.0 9
H24 >0. 20—0. 50 145-195 115 4
>0. 50 — 1.50 4
>1.50 —3. 00 5
H26 >0. 20 — 0. 50 170-210 140 2
>0.50—1.50 3
>1.50 — 3. 00 3
H28 >0,20 — 0,50 190 160 2
>0. 50〜L 50 2
>1. 50—3. 00 3


DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs

DC CC 1050 O Aluminum Circle Sheet / Industrial Aluminium Round Discs

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.
